500 Bulldog - Serial 0K000248 Thru 0L001607 - Carburetor And Linkage

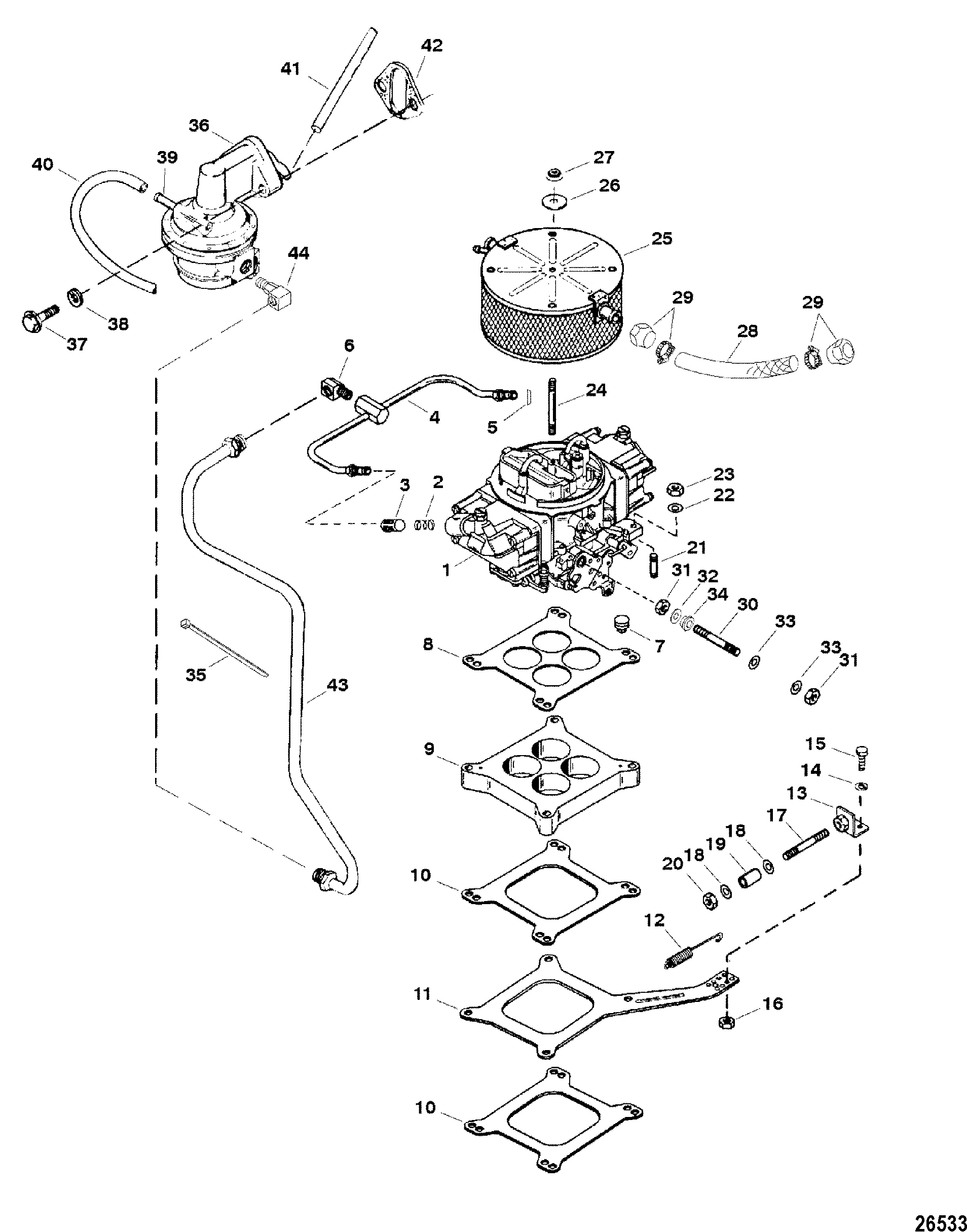

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 13549A23 | CARBURETOR ASSEMBLY, Blue | 1 | 13549A18 | This Part is No Longer Available | ||||
| 2 | 24-48143 | SPRING | 2 | ||||||
| 3 | 35-93568 | FILTER | 2 | ||||||
| 4 | 32-8485911 | LINE ASSEMBLY, Fuel - Blue | 1 | ||||||
| 5 | 27-848438 | GASKET, Flare - Copper | 2 | 2 | |||||
| - | 1399-650877 | JET, Main | 2 | (.086) - Primary | |||||
| - | 1399-650888 | JET, Main | 2 | (.104) - Seconary | |||||
| - | 22-47945 | PLUG, Pipe (.125-27) | 2 | ||||||
| - | 17-35973 | PIN, Dowel | 1 | ||||||
| - | 22-36382 | 700-21887 | FITTING, (.250-18) Brass | 1 | |||||
| - | 42268 | CHOKE KIT, Electric | 1 | This Part is No Longer Available | |||||
| - | 816827 | PUMP KIT, Accelerator | 1 | This Part is No Longer Available | |||||
| - | 27-42270A1 | GASKET SET, Carburetor | AR | ||||||
| - | 822519 | POWER VALVE, 4.5 | AR | This Part is No Longer Available | |||||
| - | 13220 | REBUILD KIT, Carburetor | AR | ||||||
| 6 | 22-93385 | FITTING, (90 Degree) | 1 | ||||||
| 7 | 22-36373 | PLUG, Hex Steel (.375-18) | 1 | ||||||
| 8 | 27-41609 | 676-9-61002 | 700-30361 | GASKET, Carburetor Spacer | 1 | 2 | |||
| 9 | 41548 | SPACER | 1 | This Part is No Longer Available | |||||
| 10 | 27-41610 | GASKET, Carburetor Spacer | 2 | 2 | |||||
| 11 | 940701 | BRACKET, Throttle | 1 | ||||||
| 12 | 24-897454 | SPRING, Throttle Return | 1 | 24-32817 | |||||
| 13 | 15017 | BRACKET, Throttle | 1 | ||||||
| 14 | 10-78291 | SCREW, (.190-24 x .500) | 2 | ||||||
| 15 | 13-26996 | LOCKWASHER, (#10) | 2 | ||||||
| 16 | 11-79989 | NUT, (#10-24) | 2 | ||||||
| 17 | 16-728091 | STUD, (.250-20/.250-28 x 1.620) | 1 | 16-72809 | |||||
| 18 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 19 | 23-31866 | SPACER, (.26 x .31 x .64) | 1 | ||||||
| 20 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 21 | 16-26776 | STUD (.312-24 x 2.812) | 4 | This Part is No Longer Available | |||||
| 22 | 12-848136 | WASHER | 4 | ||||||
| 23 | 11-82670911 | NUT, (.312-24) | 4 | 11-35814 | |||||
| 24 | 16-848176 | STUD, (.250-20 x 4.310) | 1 | ||||||
| 25 | 848914 | ARRESTOR, Flame | 1 | This Part is No Longer Available | |||||
| 26 | 12-86400 | WASHER | 1 | ||||||
| 27 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) | 1 | ||||
| 28 | 32-821284A14 | HOSE ASSEMBLY (10.50 Inches) | 2 | This Part is No Longer Available | |||||
| 29 | 54-84763012 | COVER, Clamp End, Red | 4 | This Part is No Longer Available | |||||
| 30 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor-Special | 1 | ||||||
| 31 | 11-8267089 | NUT, (.250-28) | 2 | 11-20361 | |||||
| 32 | 12-28426 | WASHER | 1 | ||||||
| 33 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) | 2 | |||||
| 34 | 23-818894 | BUSHING, Throttle Linkage | 1 | ||||||
| 35 | 56762 | TIE STRAP, (4.00 Inches) | 5 | ||||||
| 36 | 92864 | PUMP ASSEMBLY, Fuel | 1 | 5 | |||||
| 37 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | 5 | |||||
| 38 | 13-35048 | LOCKWASHER, (.375) | 2 | 5 | |||||
| 39 | 22-85822 | CONNECTOR, (Straight) | 1 | 5 | |||||
| 40 | 32-8M8023638 | TUBING (48.00 Inches) | 1 | 32-84862870 | |||||
| 41 | 35377 | ROD, Fuel Pump | 1 | 5 | |||||
| 42 | 27-34213 | GASKET | 1 | 2,5 | |||||
| 43 | 32-848593 | LINE, Fuel - Carburetor To Fuel Pump | 1 | ||||||
| 44 | 22-93385 | FITTING, (90 Degree) | 1 | ||||||
| - | 27-99386A96 | GASKET SET, Engine Overhaul | 1 |
