500 Bulldog - Serial 0K000248 Thru 0L001607 - Mount Plates (Staggered)

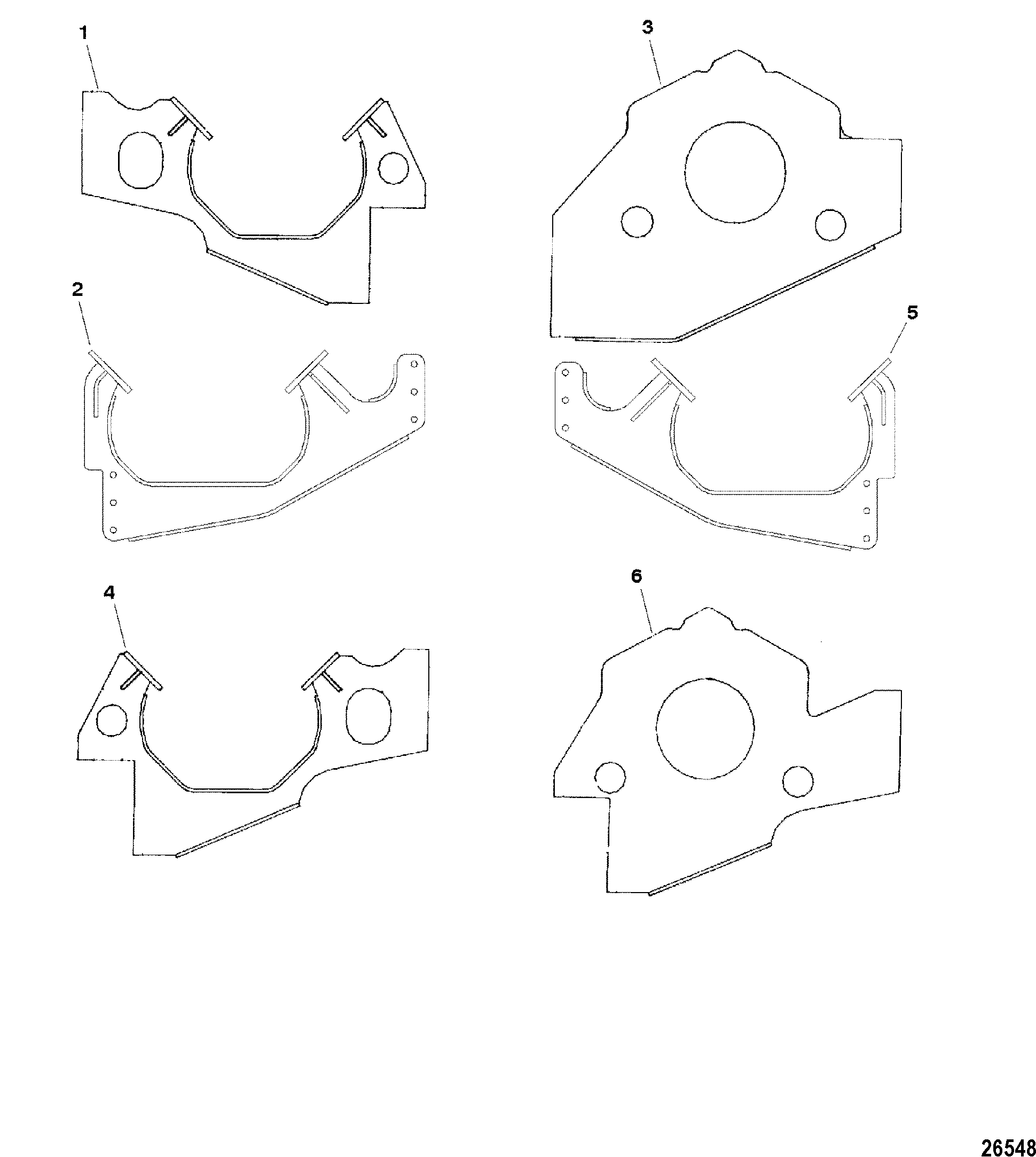

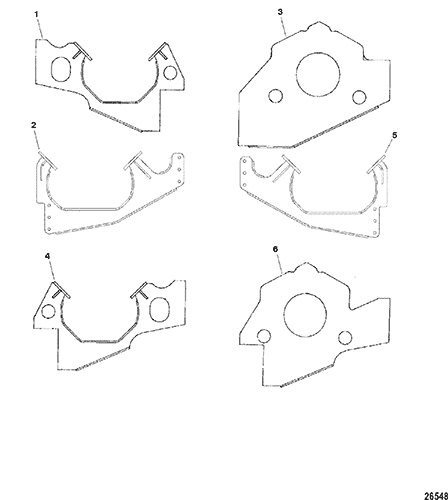

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849310T         MOUNT, Engine - Front Starboard - Staggered AR 816308 SN# 0K000248 THRU 0K000476
2 849310T         MOUNT, Engine - Front Starboard - Staggered AR 849310 SN# 0L000182 THRU 0L001607
3 847807T         MOUNT, Engine - Rear - Side By Side AR 847807 This Part is No Longer Available
4 849335T         MOUNT, Engine - Front Port - Staggered AR 816307 SN# 0K000248 THRU 0K000476
5 849335T         MOUNT, Engine - Front Port - Staggered AR 849335 SN# 0L000182 THRU 0L001607
6 847808T         MOUNT, Engine - Rear - Staggered AR 847808
- 10-86518         SCREW, (.375-16 x 1.00) 6

- 12-20553         WASHER, (.406 x .734 x .063) 6
