500 Bulldog - Serial 0K000248 Thru 0L001607 - Starter Assembly (Driveline Models) (50-808011A1)

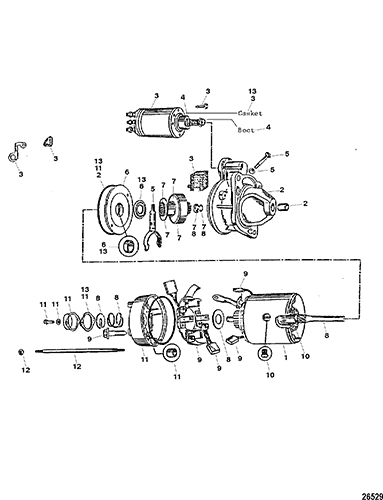

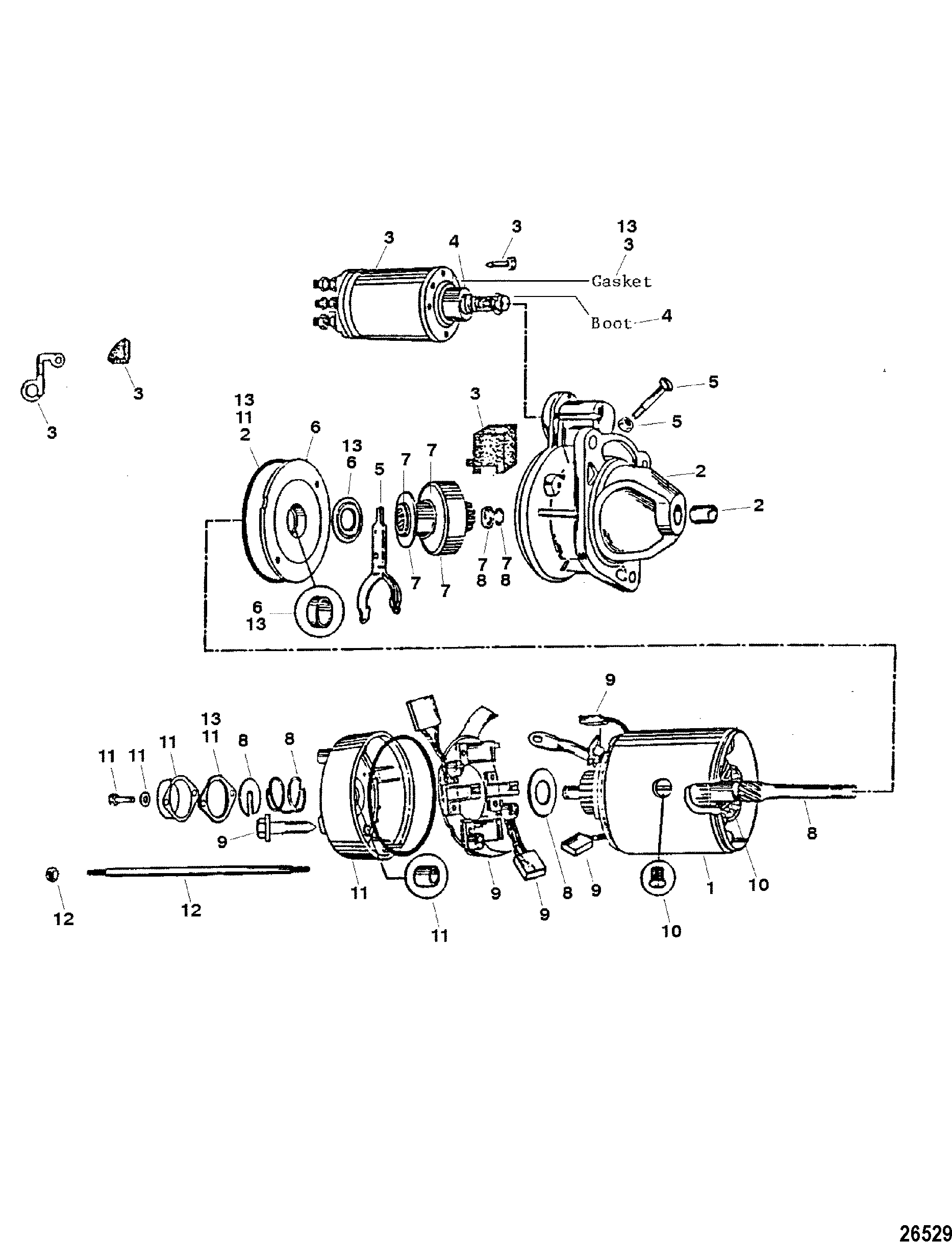

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-808011A1 | Transmission And Driveline Models | ||||
| 2 | NSS | NOT SOLD SEPARATE, Drive Housing | 1 | This Part is not sold separately | |||||
| 3 | 89-850408 | SOLENOID | 1 | ||||||
| 4 | NSS | NOT SOLD SEPARATE, Plunger Kit | 1 | This Part is not sold separately | |||||
| 5 | NSS | NOT SOLD SEPARATE, Shift Lever Kit | 1 | This Part is not sold separately | |||||
| 6 | NSS | NOT SOLD SEPARATE, Center Bearing Kit | 1 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, Drive Kit | 1 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, Armature Kit | 1 | This Part is not sold separately | |||||
| 9 | 850404 | HOLDER KIT, Brush | 1 | This Part is No Longer Available | |||||
| 10 | NSS | NOT SOLD SEPARATE, Field Coil | 1 | This Part is not sold separately | |||||
| 11 | NSS | NOT SOLD SEPARATE, CE Frame Kit | 1 | This Part is not sold separately | |||||
| 12 | 10-850407 | BOLT | 2 | This Part is No Longer Available | |||||
| 13 | NSS | NOT SOLD SEPARATE, Sealing Package Kit | 1 | This Part is not sold separately |
