500 Bulldog - Serial 0K000248 Thru 0L001607 - Starter And Alternator

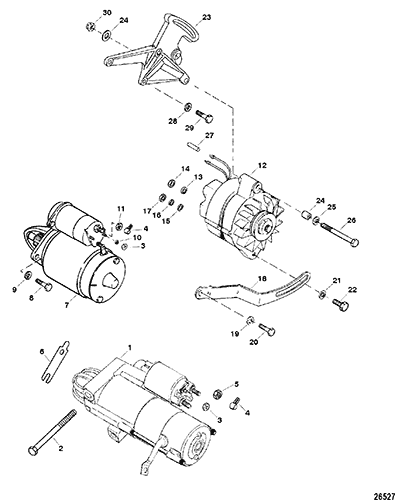

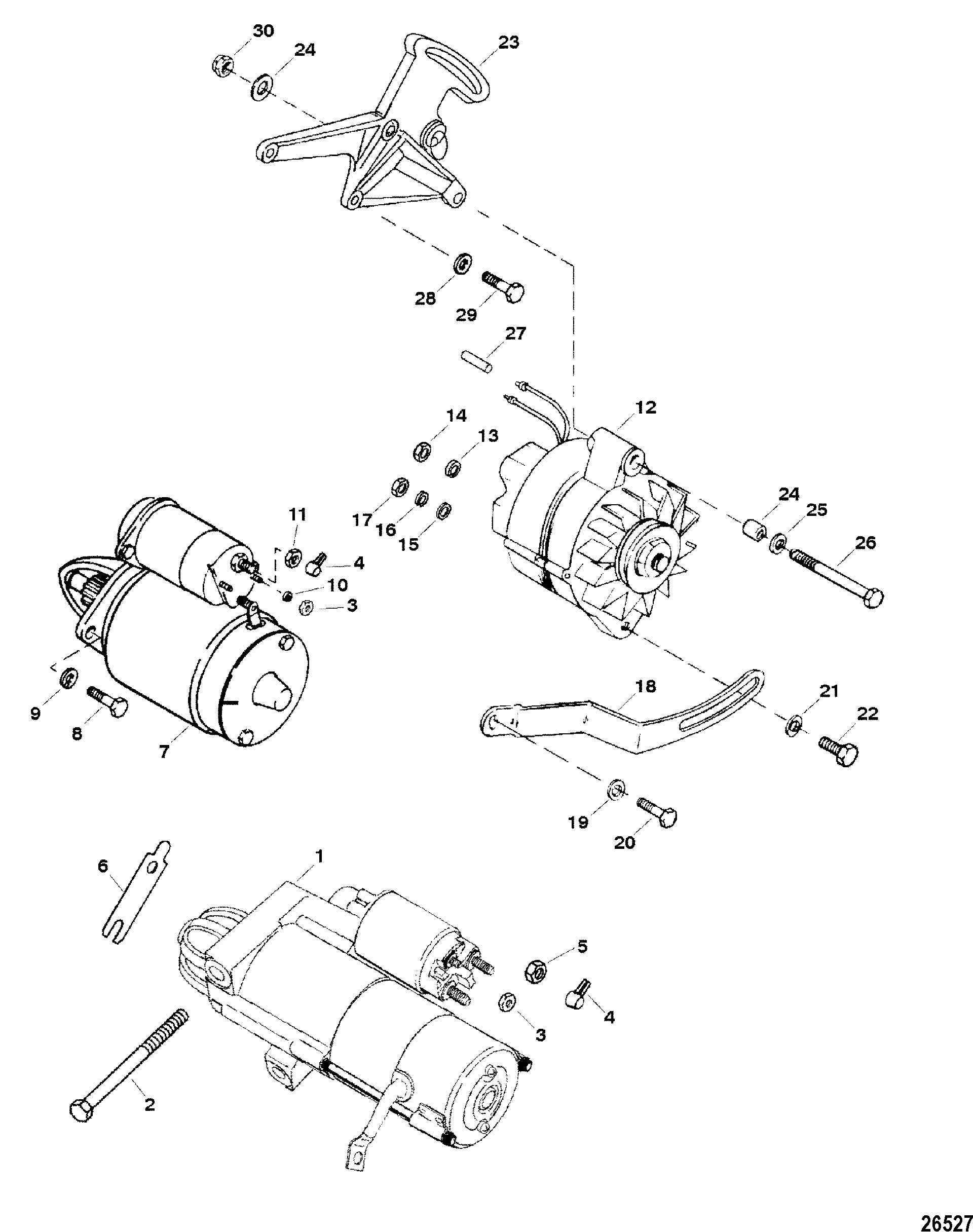

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-8M8021116 | STARTER ASSEMBLY | 1 | NOTE: See Index For Parts Breakdown | |||||
| 2 | 10-8486901 | SCREW, (.375-16 x 4.00) | 1 | Bravo Models Component Of Engine Gasket Set [27-99386A96] No longer made, limited availability | |||||
| 2 | 10-8053432 | SCREW, (.375-16 x 4.33) | 1 | Bravo Models | |||||
| 3 | 11-400211 | NUT, (M5) | 1 | ||||||
| 4 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | Component Of Partial Engine Assembly [816475A18] OR [816475A21] | ||||
| 5 | 11-401388 | NUT, (M8) | 1 | 11-400635 | Bravo Models | ||||
| 6 | 15-8172721 | SHIM, Special | 1 | Bravo Models | |||||
| 7 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-808011A1 | Driveline Models - NOTE: See Index For Parts Breakdown | ||||
| 8 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | Driveline Models | |||||
| 9 | 13-32993 | LOCKWASHER, (.437) | 2 | Driveline Models | |||||
| 10 | 13-26996 | LOCKWASHER, (#10) | 1 | Driveline Models | |||||
| 11 | 11-4013610 | NUT, (M10) | 1 | 11-400266 | Driveline Models | ||||
| 12 | 8171191 | ALTERNATOR ASSEMBLY, Blue | 1 | NOTE: See Index For Parts Breakdown | |||||
| 13 | 13-26992 | LOCKWASHER, (.250) | 1 | ||||||
| 14 | 11-8267098 | NUT, (.250-20) | 1 | 11-56374 | |||||
| 15 | 12-96457 | WASHER | 1 | ||||||
| 16 | 13-26996 | LOCKWASHER, (#10) | 1 | ||||||
| 17 | 11-79989 | NUT, (#10-24) | 1 | ||||||
| 18 | 85013T | BRACE, Alternator Adjusting | 1 | ||||||
| 19 | 12-45176 | WASHER, (.453 x .812 x .105) | 1 | ||||||
| 20 | 10-99204 | SCREW, (.437-14 x 1.00) | 1 | ||||||
| 21 | 12-26168 | WASHER | 1 | ||||||
| 22 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 23 | 815251T1 | BRACKET ASSEMBLY, Alternator Mount | 1 | 815251A1 | This Part is No Longer Available | ||||
| 24 | 23-33186 | BUSHING | 1 | ||||||
| 25 | 12-20553 | WASHER, (.406 x .734 x .063) | 3 | ||||||
| 26 | 10-48308 | SCREW, (.375-24 x 3.750) | 1 | ||||||
| 27 | 5790811 | SLEEVE, (10.00 Inches Bulk), Alternator Lead - Cut As Required | 1 | ||||||
| 28 | 12-45175 | WASHER, (.406 x .750 x .104) | 3 | ||||||
| 29 | 10-65210 | SCREW, (.375-16 x 1.00) | 2 | ||||||
| 29 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 1 | ||||||
| 30 | 11-23161 | NUT, (.375-24) | 1 |
