500 Bulldog - Serial 0K000248 Thru 0L001607 - Crankshaft - Pistons - Connecting Rods

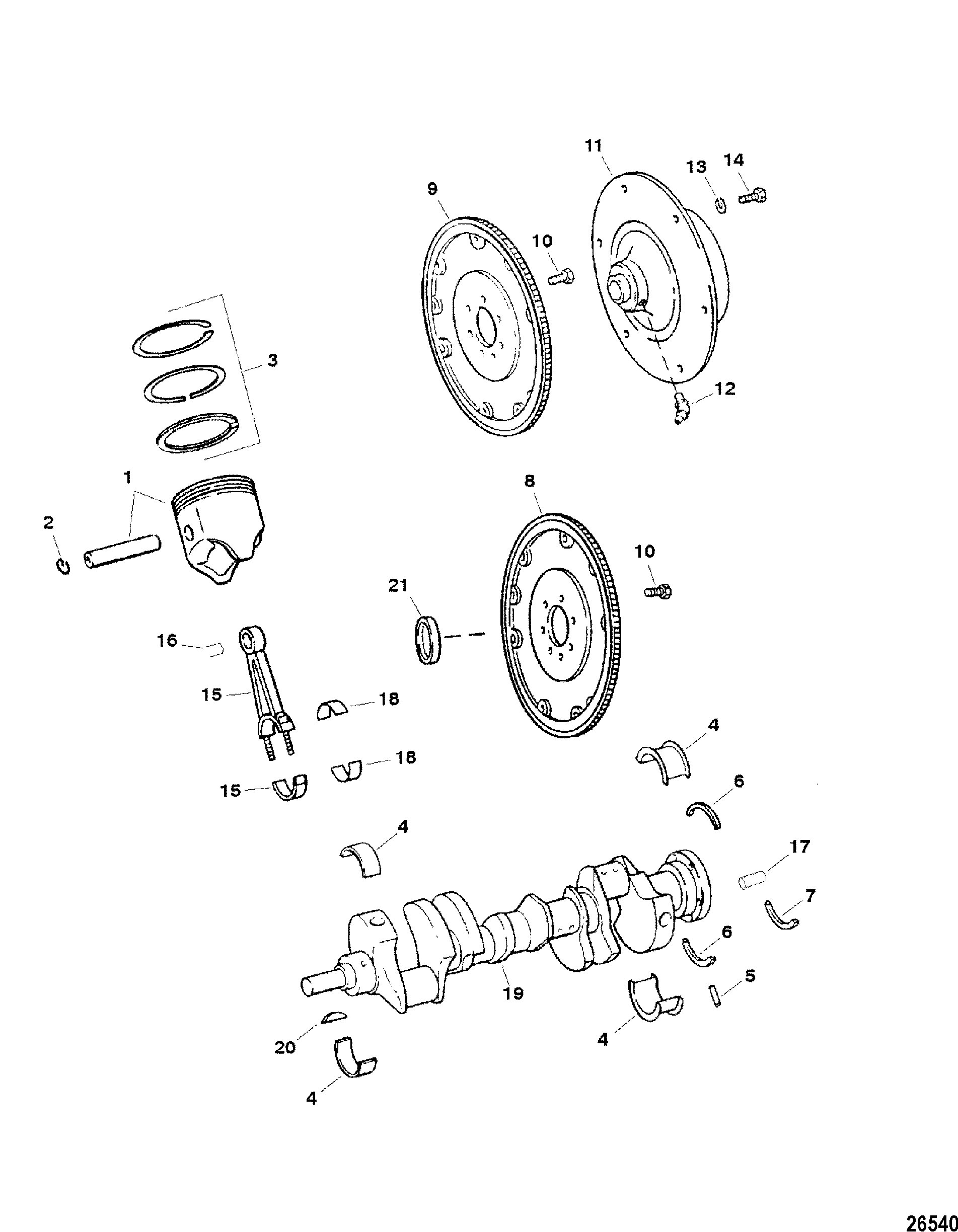

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Note 1: When ordering oversize pistons for this engine, it is recommended that the crankshaft, rod and piston assembly be rebalanced before engine is rebuilt. Note 2: The external balanced crankshaft will supercede to the new internal balanced crankshaft. If changing crankshafts is required on a Pre - 1998 (500 Bulldog) engine, it will also require a new internal balanced flywheel and damper. |
Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 789-813058T1 | PISTON ASSEMBLY | 8 | 789-813058A1 | Standard 5 | ||||
| 1 | 789-813059A1 | PISTON ASSEMBLY | 8 | .030 Oversize - See NOTE #1 | |||||
| 2 | 17799 | RETAINER, Piston Pin | 16 | This Part is No Longer Available | |||||
| 3 | 39-818629 | RING SET, Piston | 1 | Standard 5 | |||||
| 3 | 39-4273335 | RING SET, Piston | 1 | .035 Oversize | |||||
| 4 | 8M0051198 | BEARING SET, Main | 1 | 31-848112 | Standard 5 | ||||
| 4 | 23-842402 | BEARING SET, Main | AR | 23-611711 | .001 Undersize 5 | ||||
| 4 | 23-8M0053549 | BEARING SET, Main | AR | 23-6117110 | .010 Undersize 5 | ||||
| 5 | 17-843378 | PIN, Dowel (.250) Rear Main Cap | 2 | 17-35312 | 5 | ||||
| 6 | 26-14756 | SEAL, Oil | 1 | 2,5 | |||||
| 7 | 15-98184 | SHIM, Oil Seal | AR | This Part is No Longer Available 2,5 | |||||
| 8 | 230-81003 | FLYWHEEL | 1 | This Part is No Longer Available - Driveline Models - External Balanced SN# 0K000248 THRU 0K000476 | |||||
| 8 | 230-742412 | FLYWHEEL | 1 | 230-74241 | This Part is No Longer Available Driveline Models - Internal Balanced SN# 0L000182 THRU 0L001607 | ||||
| 9 | 230-6540 | FLYWHEEL | 1 | Bravo Models - External Balanced SN# 0K000248 THRU 0K000476 5 | |||||
| 9 | 230-94251 | FLYWHEEL | 1 | Bravo Models - Internal Balanced SN# 0L000182 THRU 0L001607 5 | |||||
| 10 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | 5 | ||||
| 11 | 861523A9 | COUPLER ASSEMBLY, Engine | 1 | 18311A17 | Bravo Models | ||||
| 12 | 22-49099 | FITTING, Grease | 2 | Bravo Models | |||||
| 13 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | Bravo Models | |||||
| 14 | 10-14883 | SCREW, (.375-16 x 1.12) | 6 | Bravo Models | |||||
| 15 | 645-815907 | CONNECTING ROD ASSEMBLY | 8 | 5 | |||||
| 16 | 42839 | BUSHING, Conn Rod | 8 | ||||||
| 17 | 17-816986 | PIN, Dowel - Crankshaft | 1 | This Part is No Longer Available 5 | |||||
| 18 | 23-841447A1 | BEARING SET | 1 | 31-848110 | This Part is No Longer Available - Standard 5 | ||||
| 18 | 23-841449A1 | BEARING SET | AR | 31-848115 | This Part is No Longer Available - .001 Undersize 5 | ||||
| 18 | 23-8M0030982 | BEARING SET | AR | 23-6117010 | .010 Undersize 5 | ||||
| 18 | 23-841448A1 | BEARING SET | AR | 31-848111 | This Part is No Longer Available - .001 Oversize 5 | ||||
| 19 | 2408-848108 | CRANKSHAFT | 1 | External Balanced - See NOTE #2 SN# 0K000248 THRU 0K000476 5 | |||||
| 19 | 2408-849470 | CRANKSHAFT | 1 | This Part is No Longer Available - Internal Balanced SN# 0L000182 THRU 0L001607 5 | |||||
| 20 | 28-34466 | KEY, Crankshaft | 2 | 5 | |||||
| 21 | 23-823108 | BUSHING, Crankshaft Pilot | 1 | Driveline Models 5 | |||||
| - | 27-99386A96 | GASKET SET, Engine Overhaul | 1 | ||||||
