500 Bulldog - Serial 0K000248 Thru 0L001607 - Intake Manifold And Front Cover

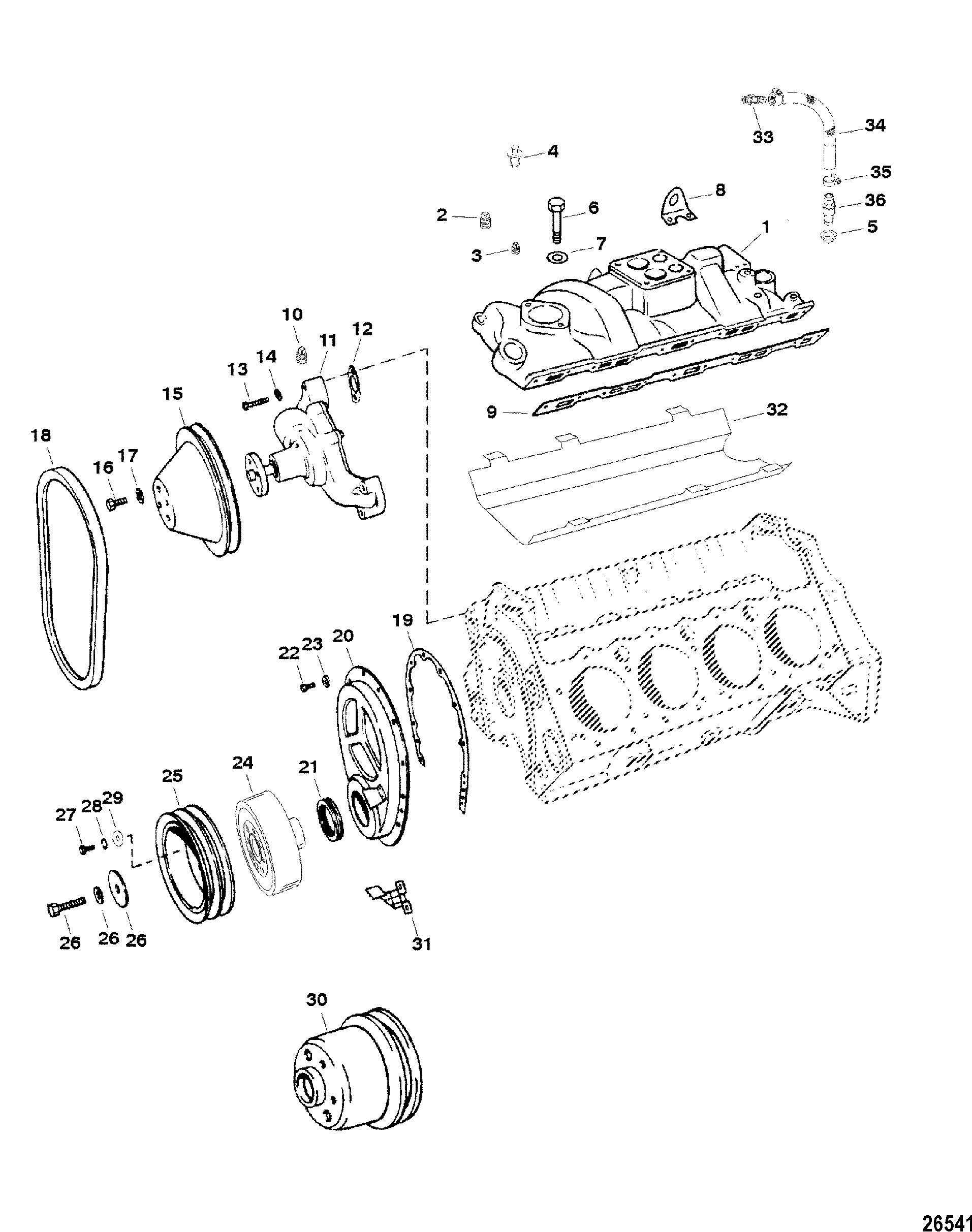

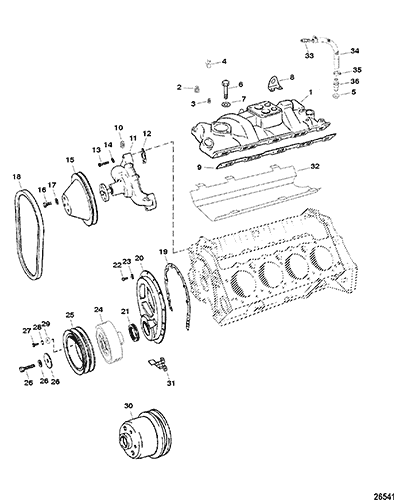

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848587T2 | MANIFOLD ASSEMBLY, Intake | 1 | 848587A2 | 5 | ||||
| 2 | 22-32804 | PLUG, (.500-14), Brass | 1 | ||||||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18) Brass | 2 | |||||
| 4 | 22-848646 | FITTING | 1 | ||||||
| 5 | 25-811553 | GROMMET | 1 | 2 | |||||
| 6 | 10-822168 | SCREW, (.375-16 x 1.750) | 8 | 5 | |||||
| 6 | 10-842787 | SCREW, (.375-16 x 2.00) | 4 | 10-47432 | 5 | ||||
| 7 | 12-45175 | WASHER, (.406 x .750 x .104) | 12 | 5 | |||||
| 8 | 54-64628 | LIFTING EYE | 2 | 54-646281 | 5 | ||||
| 9 | 27-8181881 | GASKET, Intake Manifold | 2 | 2,5 | |||||
| 10 | 22-845174 | PLUG (.500) | 2 | 22-61162 | 5 | ||||
| 11 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | 5 | ||||
| 12 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 2,5 | |||||
| 13 | 10-842787 | SCREW, (.375-16 x 2.00) | 3 | 5 | |||||
| 14 | 13-35048 | LOCKWASHER, (.375) | 4 | 5 | |||||
| 15 | 523491 | PULLEY, Blue - .375 Groove | 1 | This Part is No Longer Available | |||||
| 16 | 10-47277 | SCREW, (.312-24 x .750) | 4 | ||||||
| 17 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 4 | |||||
| 18 | 57-816034Q | V BELT (.375 Wide) | 1 | 57-816034 | |||||
| 19 | 27-54529 | 676-9-61601 | 700-30440 | GASKET, Timing Cover | 1 | 2,5 | |||
| 20 | 66215 | COVER ASSEMBLY | 1 | This Part is No Longer Available 5 | |||||
| 21 | 26-8219471 | SEAL, Oil | 1 | ||||||
| 22 | 10-28635 | SCREW, (.250-20 x .620) | 10 | 5 | |||||
| 23 | 13-26992 | LOCKWASHER, (.250) | 10 | 5 | |||||
| 24 | 72605T1 | DAMPER | 1 | 726051 | This Part is No Longer Available - External Balanced SN# 0K000248 THRU 0K000476 5 | ||||
| 24 | 497831 | DAMPER | 1 | This Part is No Longer Available - Internal Balanced SN# 0L000182 THRU 0L001607 5 | |||||
| 25 | 521811 | PULLEY, Blue - .375 Groove | 1 | This Part is No Longer Available 5 | |||||
| 26 | 814441 | BOLT KIT, Damper | 1 | This Part is No Longer Available 5 | |||||
| 27 | 10-86518 | SCREW, (.375-16 x 1.00) | 3 | 5 | |||||
| 28 | 13-35048 | LOCKWASHER, (.375) | 3 | 5 | |||||
| 29 | 12-20553 | WASHER, (.406 x .734 x .063) | 3 | 5 | |||||
| 30 | 845524A1 | PULLEY, Blue - Power Steering | 1 | 772441 | 5 | ||||
| 31 | 59966 | POINTER, Timing | 1 | 5 | |||||
| 32 | 845756T | SHIELD, Heat | 1 | 816073 | 5 | ||||
| 33 | 22-34982 | CONNECTOR | 1 | 22-32820 | |||||
| 34 | 32-823229A4 | HOSE ASSEMBLY (6.750 Inches) | 1 | ||||||
| 35 | 54-815504104 | CLAMP, Worm Gear | 1 | ||||||
| 36 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| - | 27-99386A96 | GASKET SET, Engine Overhaul | 1 |
