500 Bulldog - Serial 0K000248 Thru 0L001607 - Oil Pump And Oil Pump

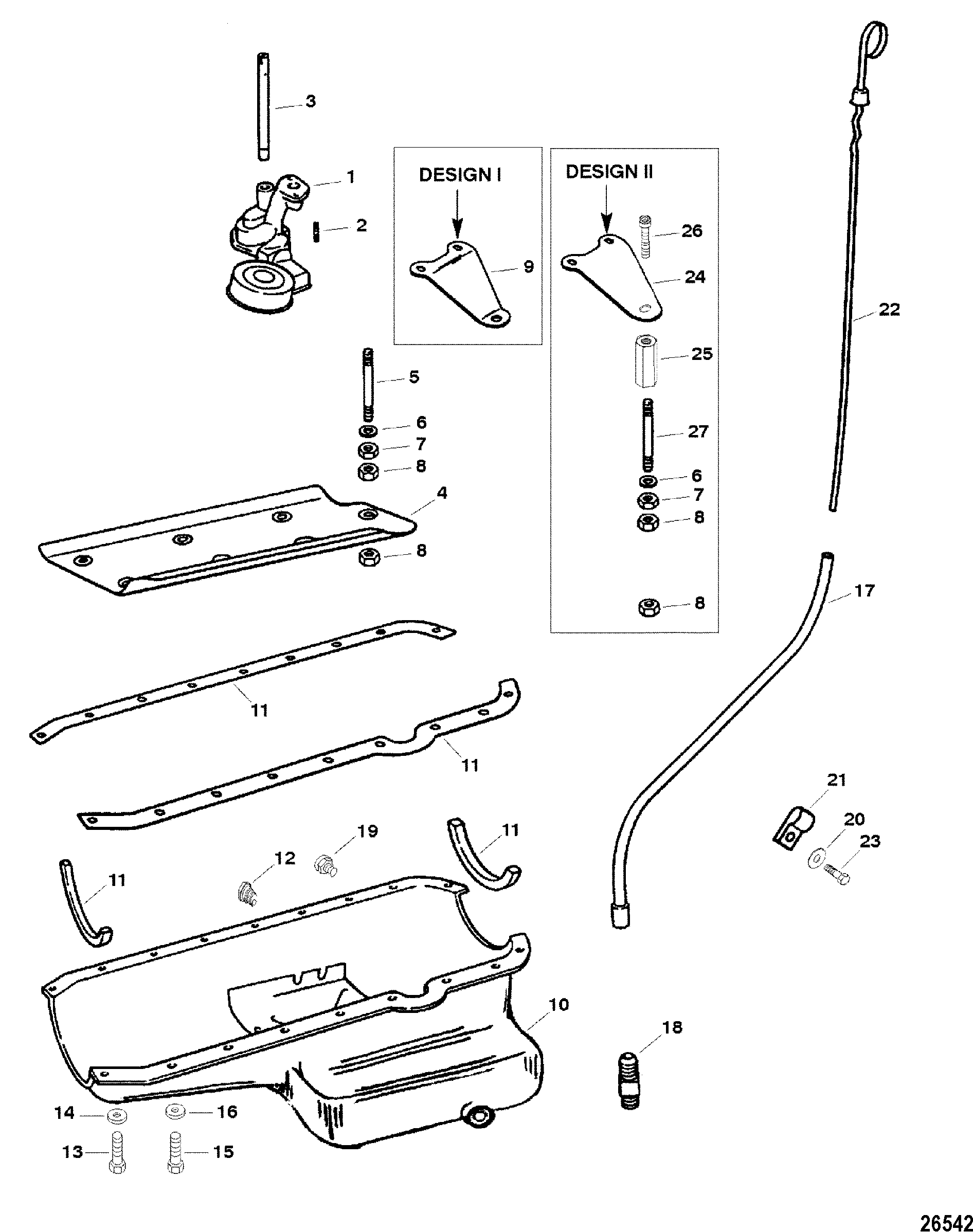

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98337T6 | PUMP ASSEMBLY, Oil | 1 | 98337A6 | 5 | ||||
| 2 | 16-845599 | STUD | 1 | 16-49108 | 5 | ||||
| 3 | 848511 | SHAFT | 1 | 5 | |||||
| 4 | 8485431 | WINDAGE TRAY | 1 | 5 | |||||
| 5 | 16-816254 | STUD, Special | 6/7 | NOTE: Reference Design I or Design II 5 | |||||
| 6 | 12-816258 | WASHER, (.500 x .875 x .120) | 7 | 5 | |||||
| 7 | 11-816255 | NUT, (.500-20) | 7 | 5 | |||||
| 8 | 11-816257 | NUT, Special | 14 | 5 | |||||
| 9 | 849529A1 | SUPPORT, Oil Pump | 1 | 8143941 | Design I 5 | ||||
| 10 | 817025T1 | PAN, Oil | 1 | 8170251 | 5 | ||||
| 11 | 27-848305 | GASKET SET, Oil Pan | 1 | 2,5 | |||||
| 12 | 22-36373 | PLUG, Hex Steel (.375-18) | 2 | 5 | |||||
| 13 | 10-55714 | SCREW (.312-18 x .875) | 12 | 5 | |||||
| 13 | 10-54523 | SCREW, (.312-18 x 1.00) | 2 | 5 | |||||
| 14 | 12-20546 | WASHER, (.330 x .500 x .060) | 14 | 5 | |||||
| 15 | 10-55715 | SCREW, (.250-20 x .880) | 2 | 5 | |||||
| 16 | 12-20028 | WASHER, (.265 x .437 x .060) | 2 | 5 | |||||
| 17 | 847599 | TUBE, Oil Dipstick | 1 | 5 | |||||
| 18 | 22-42277 | FITTING | 1 | This Part is No Longer Available 5 | |||||
| 19 | 19-8154731 | PLUG, Drain (.875-14) | 1 | 5 | |||||
| 20 | 13-26992 | LOCKWASHER, (.250) | 1 | 5 | |||||
| 21 | 54-822279 | CLIP, Oil Tube Support | 1 | 5 | |||||
| 22 | 94010 | DIPSTICK | 1 | This Part is No Longer Available 5 | |||||
| 23 | 10-817505 | SCREW, (.250-20 x .620) | 1 | 5 | |||||
| 24 | 849529A1 | BRACE KIT, Oil Pump | 1 | Design II 5 | |||||
| 25 | 11-849530 | NUT, Special | 1 | ||||||
| 26 | 10-849660 | SCREW, (.375-24 x 1.00) | 1 | ||||||
| 27 | 16-816254 | STUD, Special | 1 | ||||||
| - | 27-99386A96 | GASKET SET, Engine Overhaul | 1 |
