500 Bulldog - Serial 0K000248 Thru 0L001607 - Power-Assisted Steering Assembly

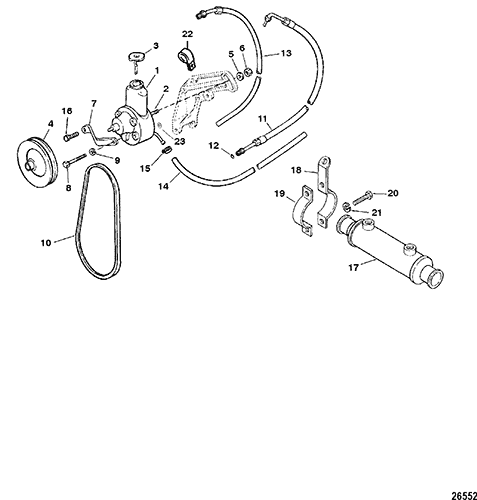

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A25 | PUMP ASSEMBLY, Blue - Power Steering | 1 | ||||||
| 2 | 16-41877 | STUD, (M10) | 1 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 738733 | PULLEY, Blue | 1 | This Part is No Longer Available | |||||
| 5 | 12-34567 | WASHER, For Brace Slot | 3 | ||||||
| 6 | 11-90517 | NUT, (M10) | 2 | ||||||
| 7 | 98813F1 | BRACE | 1 | 98813A1 | |||||
| 8 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 9 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
| 10 | 57-821023Q | V BELT | 1 | 57-821023 | |||||
| 11 | 32-98494 | HOSE ASSEMBLY, Fittings On Both Ends | 1 | ||||||
| 12 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 13 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk), Cut 48.00 Inches | 1 | ||||||
| 14 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut 19.50 Inches - Pump To Oil Cooler | 1 | 32-5251914 | |||||
| 15 | 54-180761 | CLAMP, Worm Gear | 3 | ||||||
| 16 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 1 | ||||||
| 16 | 10-825427 | SCREW, (.437-14 x 1.250) | 1 | ||||||
| 17 | 99356A2 | COOLER, Oil | 1 | ||||||
| 18 | 63820F3 | BRACKET, Long | 1 | 638203 | |||||
| 19 | 563281 | BRACKET, Short | 1 | ||||||
| 20 | 10-49668 | SCREW, (.250-20 x .750) | 2 | ||||||
| 21 | 13-26992 | LOCKWASHER, (.250) | 2 | ||||||
| 22 | 54-848183 | J CLIP, Power Steering Hose | 1 | ||||||
| 22 | 54-42553 | J CLIP, Power Steering Hose To Valve Cover | 2 | ||||||
| 23 | 12-20553 | WASHER, (.406 x .734 x .063), Lower Pivot Stud - Pump To Bracket | 1 |
