500 Bulldog - Serial 0K000248 Thru 0L001607 - Cylinder Block And Camshaft

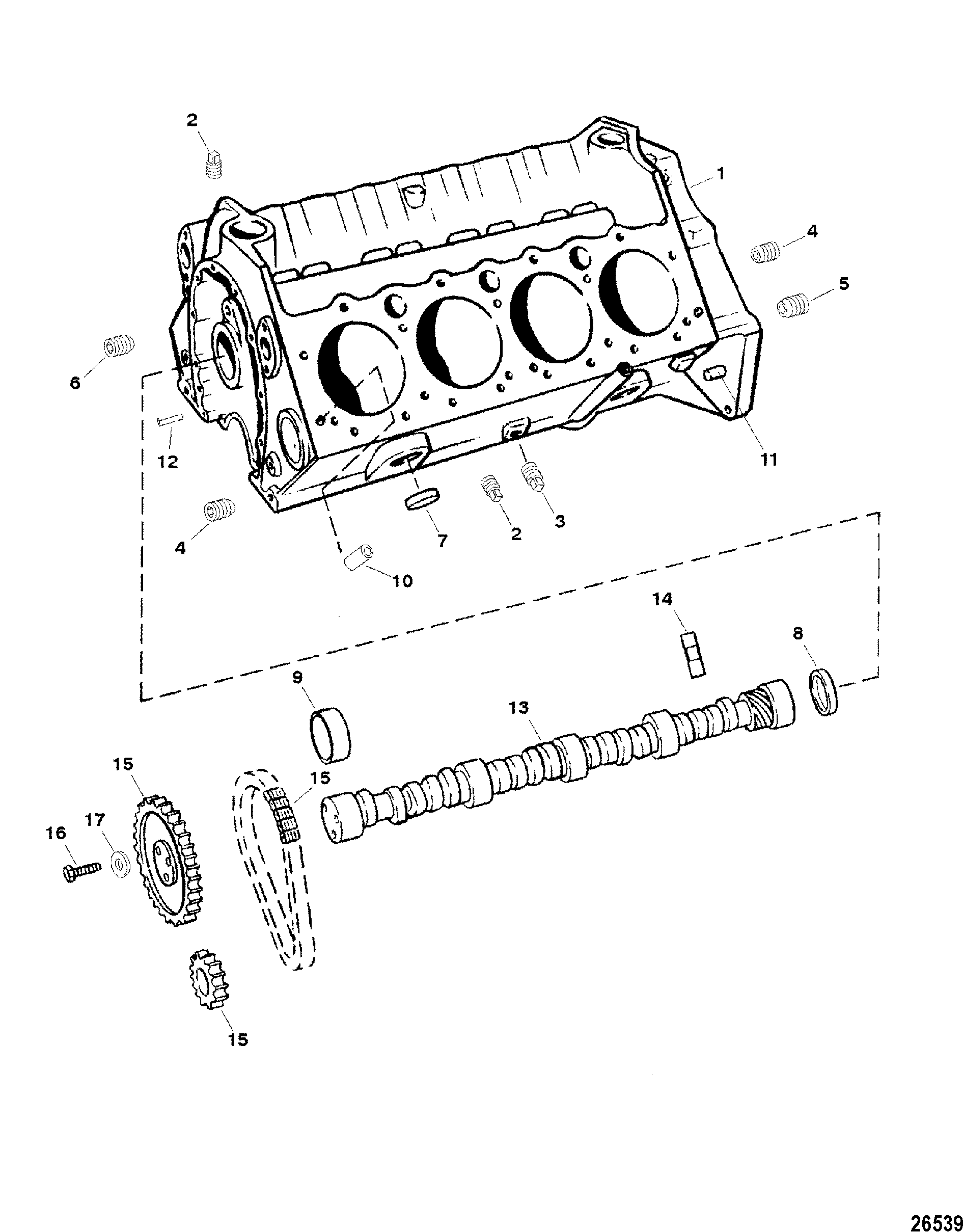

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Note 1: When ordering Partial Engine for a Driveline package, (Due to supersession of engine, verify which style you will receive) flywheel Part Number 230-8100--3 (External Balanced) needs to be ordered to replace flywheel on Partial Engine. Note 2: When ordering Partial Engine for a Driveline package, flywheel Part Number 230-7424--1 (Internal Balanced) needs to be ordered to replace flywheel on Partial Engine. Note 3: Engines built with Internal Balance compontents will be identified by the letters "INT" stamped after the crankshaft serial number which is found on the front starboard side of the engine block at the cylinder head deck surface. (Ref SB |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 816475A26 | PARTIAL ENGINE ASSEMBLY | 1 | 816475A18 | This Part is No Longer Available - Bravo Models - See NOTE #1 - Includes Internal Parts And Cylinder Heads - External Balanced SN# 0K000248 THRU 0K000476 | ||||
| 1 | 816475A26 | PARTIAL ENGINE ASSEMBLY | 1 | 816475A21 | This Part is No Longer Available - Bravo Models - See NOTE #2 And NOTE #3 - Includes Internal Parts And Cylinder Heads - Internal Balanced SN# 0L000182 THRU 0L001607 | ||||
| 2 | 22-328022 | PLUG, Pipe (.125-27) | 5 | 22-328021 | 5 | ||||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18) Brass | 3 | 5 | ||||
| 4 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 3 | 5 | |||||
| 5 | 22-36373 | PLUG, Hex Steel (.375-18) | 1 | 5 | |||||
| 6 | 845606 | PLUG, Special - Oil Galley | 2 | 42534 | 5 | ||||
| 7 | 22-69300 | EXPANSION PLUG, (1.750 Diameter) | 8 | 5 | |||||
| 8 | 19-94140 | EXPANSION PLUG, Camshaft | 1 | 5 | |||||
| 9 | 23-85684 | BEARING SET | 1 | 5 | |||||
| 10 | 17-52190 | PIN, Dowel | 4 | 5 | |||||
| 11 | 17-843379 | PIN, Dowel, Bell Housing | 2 | 17-72382 | 5 | ||||
| 12 | 17-843378 | PIN, Dowel, Timing Cover | 4 | 17-35312 | 5 | ||||
| 13 | 485-816709 | CAMSHAFT | 1 | This Part is No Longer Available 5 | |||||
| 14 | 93722T | LIFTER | 16 | 93722 | 5 | ||||
| 15 | 77531 | GEAR AND CHAIN KIT, Timing | 1 | 5 | |||||
| 16 | 10-34505 | SCREW, (.312-18 x .875) | 3 | 5 | |||||
| 17 | 12-848136 | WASHER | 3 | 5 | |||||
