500 Bulldog - Serial 0K000248 Thru 0L001607 - Thermostat Housing And Water Hoses

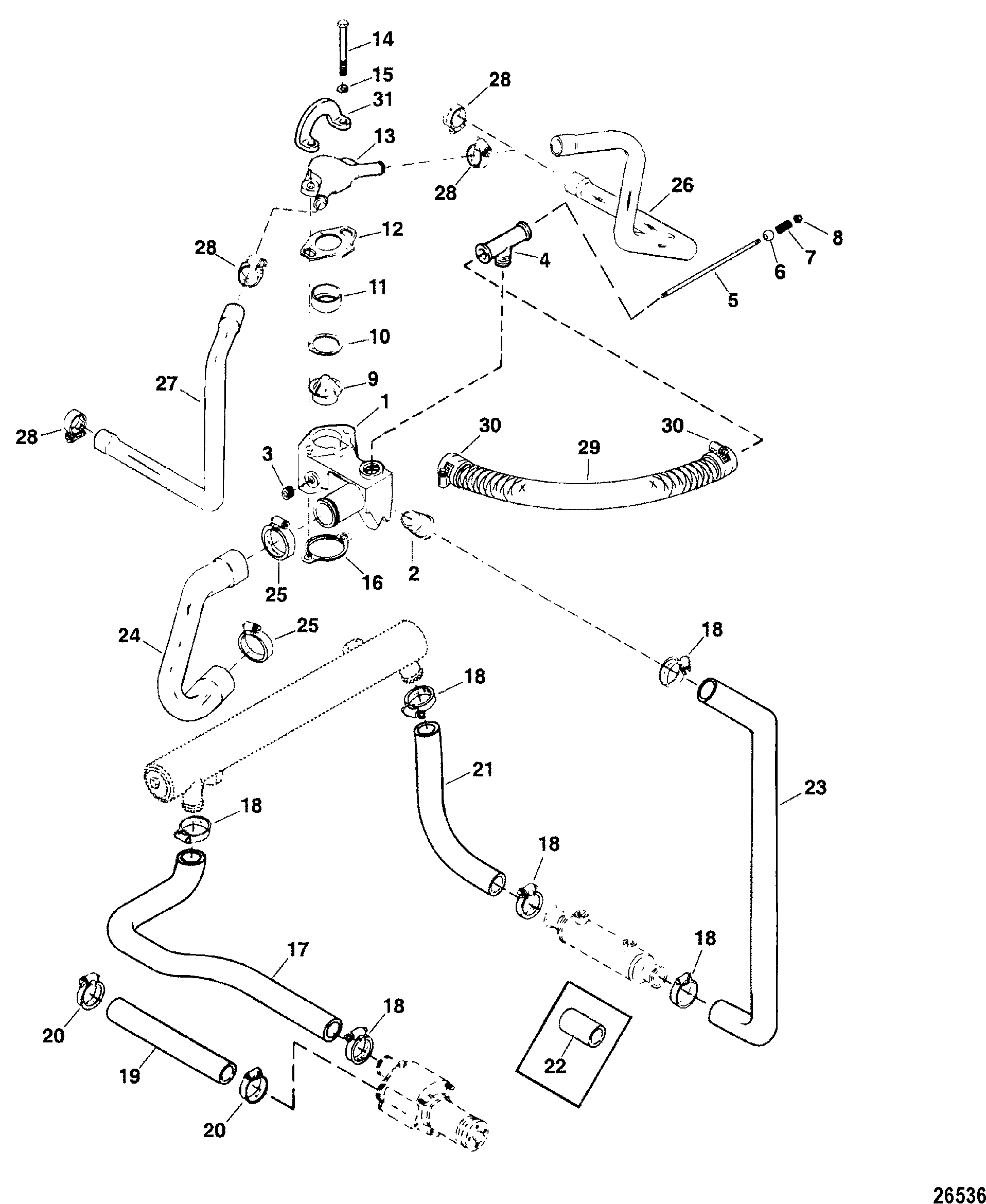

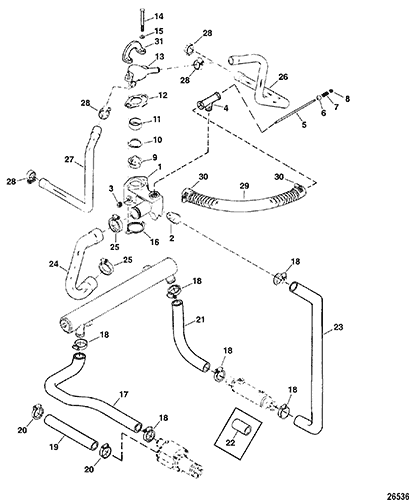

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 87290A4         HOUSING ASSEMBLY, Thermostat 1

2 23-47511         SLEEVE 1

3 22-32803         PLUG, Pipe (.375-18) Brass 2

4 22-98477A2         VALVE ASSEMBLY 1

5 10-98476         SCREW, (#10-32 x 6.00) 1

6 30-98475         BALL, Nylon 2

7 24-75533         SPRING 2

8 11-826709106         NUT, (#10-32) 1 11-29488
9 807252T1         THERMOSTAT, 140 Degrees 1 8072521
10 27-47510         GASKET, Thermostat 1
2
11 23-47508T         SLEEVE, Thermostat 1 23-47508
12 27-418122         GASKET, Thermostat Cover 1
2
13 47441A1         COVER, Thermostat 1

14 10-14164         SCREW, (.375-16 x 4.37) 2

15 12-20553         WASHER, (.406 x .734 x .063) 2

16 27-530451         GASKET, Thermostat Housing 1
2
17 32-816197         HOSE, Molded - Sea Pump To Oil Cooler 1

18 54-180766         CLAMP, Worm Gear 8

19 32-1743565         HOSE, (38.00 Inches Bulk), Cut As Required - Sea Pump To Drive Unit 1
Bravo Models
19 32-13556A1         HOSE KIT, (10.00 Feet), Cut As Required - Sea Pump To Drive Unit 1
Driveline Models
20 54-180766         CLAMP, Worm Gear 2
Driveline Models
21 32-848956         HOSE, Molded, Oil Cooler To Oil Cooler 1

22 22-13177         TUBE, Water Hose 1
Non Power Steering Models
23 32-896998         HOSE, Molded, Oil Cooler To Thermostat Housing 1 32-64346
24 847677A01         HOSE, Molded - Thermostat Housing To Water Pump 1 32-847677
25 54-180768         CLAMP, Worm Gear 2

26 32-848955         HOSE, Molded - Port - Thermostat Cover 1

27 32-848954         HOSE, Molded - Starboard - Thermostat Cover 1

28 54-180764         CLAMP, Worm Gear 4

29 32-847764A1         HOSE ASSEMBLY, (22.00 Inches) Stainless Steel Braided 1

29 32-847764A2         HOSE ASSEMBLY, (17.00 Inches) Stainless Steel Braided 1   This Part is No Longer Available
30 54-84775218         CLAMP/HOSE COVER, Red 4

31 12552         LIFTING EYE 1

- 27-99386A96         GASKET SET, Engine Overhaul 1
