200XS SST - Serial 1E050629 and Up - Air Hoses

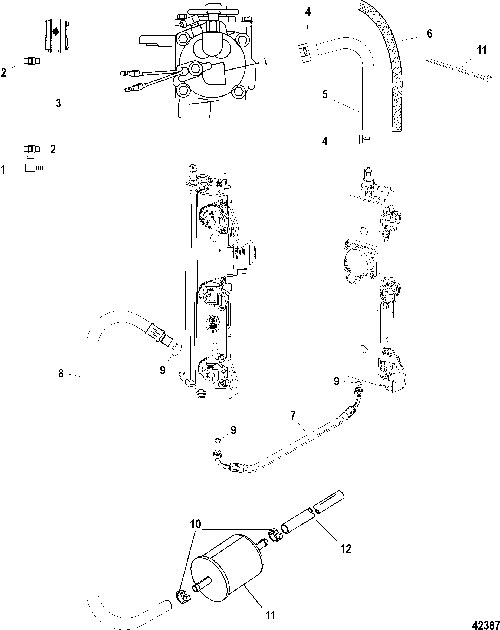

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 2 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 3 | 32-8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) | 1 | 830757130 | |||||
| 4 | 54-856880 | CLAMP, Hose (15.3) | 2 | ||||||
| 5 | 32-8502512 | HOSE | 1 | ||||||
| 6 | 23-85687631 | SLEEVE, (16.00 Inches) | 1 | ||||||
| 7 | 32-8M6000383 | HOSE/FITTING ASSEMBLY | 1 | No Longer Available | |||||
| 8 | 32-804824 | HOSE/FITTING ASSEMBLY | 1 | ||||||
| 9 | 804532 | O-RING KIT | 1 | ||||||
| 10 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 11 | 881197 | MUFFLER, Air | 1 | ||||||
| 12 | 32-85833939 | HOSE, (17.00 Inches Bulk), To Bottom Pan | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
