200XS SST - Serial 1E050629 and Up - Coil Plate Assembly

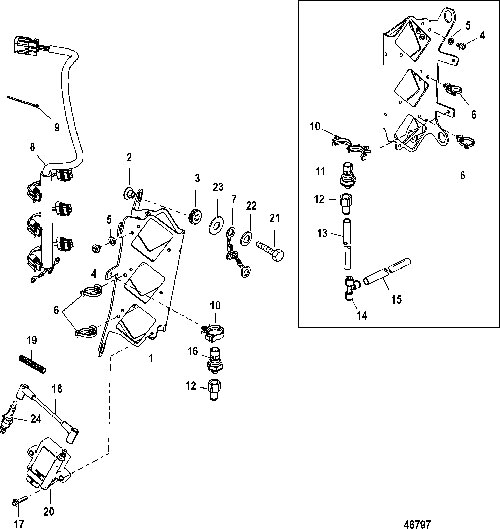

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Coil Plate Assembly-Complete | 1 | Not Sold Separate | |||||
| 1 | 884271 | PLATE, Coil Mounting | 1 | ||||||
| 2 | 23-8502341 | BUSHING | 4 | ||||||
| 3 | 25-833155 | GROMMET | 4 | ||||||
| 4 | 10-82129110 | SCREW, (M6 x 10) | 2 | ||||||
| 5 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 6 | 54-899145 | CLIP, Tie Strap | 4 | ||||||
| 7 | 84-858414A1 | CABLE ASSEMBLY, Braided | 2 | ||||||
| 8 | 84-892910T03 | HARNESS ASSEMBLY, Coil | 1 | ||||||
| 9 | 54-816311T | TIE STRAP, (8.00 Inches) | 4 | ||||||
| 10 | 54-883066 | CLIP, (.865) | 2 | ||||||
| 11 | 8M6000623 | SENSOR | 1 | 881879010 | |||||
| 12 | 22-892403 | FITTING | 2 | ||||||
| 13 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 4 Inches) | 1 | ||||||
| 14 | 22-875207 | TEE, Fitting | 1 | ||||||
| 15 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 5 Inches) | 1 | ||||||
| 16 | 881879T11 | SENSOR, Pressure (0 - 100 PSI) | 1 | ||||||
| 17 | 10-82129130 | SCREW, (M6 x 30) | 12 | ||||||
| 18 | 84-881908T | CABLE SET | 1 | ||||||
| 19 | 32-82854735 | CONDUIT | 1 | No Longer Available | |||||
| 20 | 300-8M0077471 | COIL, Ignition | 6 | 879984T01 | |||||
| 21 | 10-60411 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 22 | 12-8M0042642 | WASHER, (.323 x .562 x .063) | 2 | ||||||
| 23 | 12-49436 | WASHER | 4 | ||||||
| 24 | 33-8M0009927 | SPARK PLUG, (NGK-IZFR7M) | 6 |
