200XS SST - Serial 1E050629 and Up - Electrical Plate Assembly

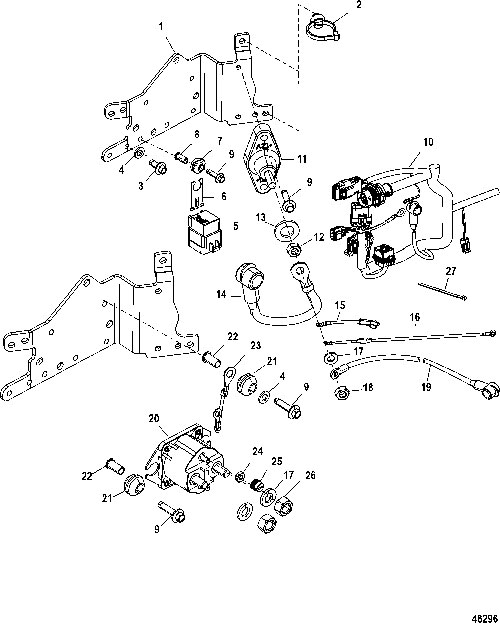

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Electrical Plate Assembly-Complete | 1 | Not Sold Separate | |||||
| 1 | 899071T01 | PLATE | 1 | ||||||
| 2 | 54-899145 | CLIP, Tie Strap | 2 | ||||||
| 3 | 10-82129114 | SCREW, (M6 x 14) | 1 | ||||||
| 4 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 5 | 882751A1 | RELAY ASSEMBLY | 1 | ||||||
| 6 | 828102 | BRACKET | 1 | ||||||
| 7 | 25-818967 | GROMMET | 1 | ||||||
| 8 | 23-818968 | BUSHING | 1 | ||||||
| 9 | 10-82129125 | SCREW, (M6 x 25 MM) | 5 | ||||||
| 10 | 84-892926T03 | HARNESS ASSEMBLY, Engine | 1 | ||||||
| - | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 2 | ||||||
| - | 88-832969T15 | FUSE, Mini - Blue - 15 Ampere | 1 | ||||||
| - | 88-8329692 | FUSE, Mini - Gray - 2 Ampere | 1 | ||||||
| - | 88-832969T05 | FUSE, Mini - Tan - 5 Ampere | 1 | ||||||
| - | 879346A49 | HARNESS REPAIR KIT (Direct Injector) | 1 | ||||||
| - | 879346A50 | HARNESS REPAIR KIT (Fuel Injector) | 1 | ||||||
| - | 84-881262A2 | HARNESS ASSEMBLY, Alternator | 1 | ||||||
| - | 84-879346A41 | HARNESS ASSEMBLY (Throttle Position Sensor) | 1 | 878073A2 | |||||
| 11 | 85-875302A1 | HOT STUD ASSEMBLY | 1 | ||||||
| 12 | 11-400213 | NUT, (M8) Stainless Steel | 1 | ||||||
| 13 | 12-85172 | WASHER | 1 | ||||||
| 14 | 84-93388T21 | CABLE ASSEMBLY, Black | 1 | ||||||
| 15 | 84-8M0006811 | CABLE ASSEMBLY, Starter | 1 | ||||||
| 16 | 84-878231A03 | HARNESS ASSEMBLY, Fuse - 100 Ampere | 1 | ||||||
| 17 | 13-53166 | LOCKWASHER, (.312) | 3 | ||||||
| 18 | 11-400213 | NUT, (M8) Stainless Steel | 1 | ||||||
| 19 | 84-88439A46 | CABLE ASSEMBLY, Battery - Positive | 1 | ||||||
| 20 | 89-817109A2 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) | 1 | ||||||
| 21 | 25-822179 | GROMMET | 2 | ||||||
| 22 | 23-818968 | BUSHING | 2 | ||||||
| 23 | 84-88807A16 | CABLE ASSEMBLY, (4.00 Inches) Black | 1 | ||||||
| 24 | 11-45076 | NUT, (#10-32) Brass | 2 | ||||||
| 25 | 11-813938 | CAP NUT, (#10-32) | 2 | ||||||
| 26 | 11-68292 | NUT, (.312-18) | 2 | ||||||
| 27 | 54-816311T | TIE STRAP, (8.00 Inches) | 3 |
