200XS SST - Serial 1E050629 and Up - Gear Housing(Driveshaft)(IV SSM R/L)

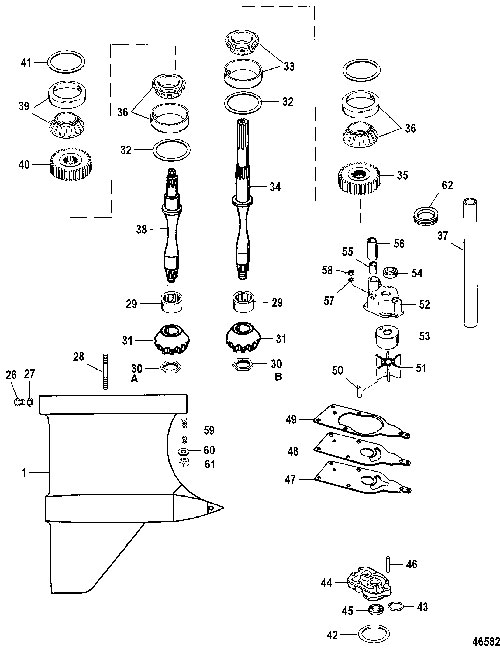

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1681-8M0047906         GEARCASE ASSEMBLY, Complete 1
1 1681-818877A20         GEAR HOUSING ASSEMBLY 1
26 10-14834A3         PLUG ASSEMBLY, Drain - Magnetic 2
27 25-805726         O-RING, Rubber 2
28 16-8M0034449         STUD, (.312 x 1.69) (WATER PUMP) 2
28 16-68166         STUD, (.312 x 2.125) (WATER PUMP) 5
29 31-8M0051196         BEARING, Roller (DRIVESHAFT) 2
30 11-35921         NUT, (.625-18) (REAR) 1
30 11-818932         NUT, Left Hand (FRONT) 1
31 43-818929         GEAR, Pinion 2
32 15-8M0063268         SHIM ASSEMBLY 3   No Longer Available
33 31-38680T01         BEARING (LOWER) 1
34 45-8M0079371         DRIVESHAFT (FRONT) 1 813781T
35 43-8M0050949         GEAR (DRIVING) 1
36 31-38678T01         BEARING 2
37 32-8476504         TUBE, Water 1
38 45-8M0074006         DRIVESHAFT (REAR) 1 815506
39 31-38681A1         BEARING ASSEMBLY 1
40 43-86640         GEAR (DRIVEN) 1
41 15-38668A1         SHIM SET 1
42 25-39695         O-RING 1
43 25-35276         O-RING, (.734 x .139) 1
44 46-821034A1         BASE ASSEMBLY, Water Pump 1
45 26-16977         SEAL, Oil 2
46 17-29596T         PIN, Dowel 2
47 27-821305         GASKET 1
48 85352         FACE PLATE, Right Hand 1
49 27-821304         GASKET 1
50 28-8M0032834         KEY 1
51 47-89984T4         IMPELLER 1
52 46-821541A2         PUMP ASSEMBLY, Water (3/4 IN WATER TUBE) 1
53 30915         INSERT 1
54 26-55905         SEAL, Oil 1
55 26-88397         SEAL 1
56 23-847685         SLEEVE 1
57 12-24812         WASHER 7
58 11-54947         NUT, (.312-24) 7
59 16-822118         STUD, (.437 x 2.500) 8
60 12-822836         WASHER, (.445 x .805 x .108) 8
61 11-34933         NUT, (.437-20) Stainless Steel 8
62 25-30271         RING, Rubber 1
