200XS SST - Serial 1E050629 and Up - Cylinder Block and End Caps

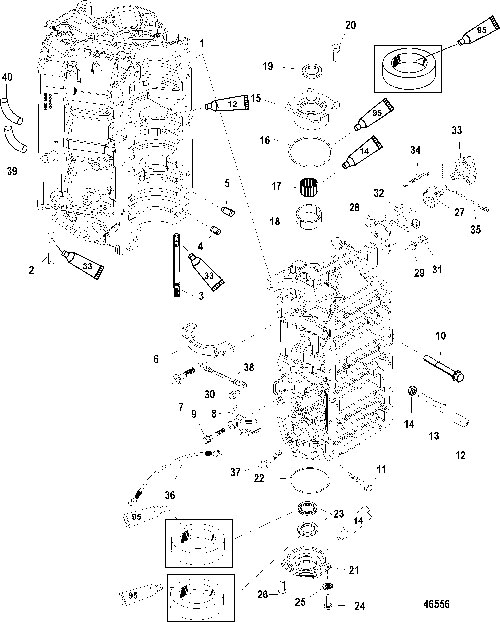

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 884-8M8027364 | CYLINDER BLOCK ASSEMBLY | 1 | ||||||
| 2 | 16-8M0034455 | STUD, 1.750 | 6 | ||||||
| 3 | 16-670654 | STUD, (.375-16/.375-24 x 5.620) | 2 | ||||||
| 3 | 16-8M0034454 | STUD, (.375-16/.375-24 x 6.87) | 2 | ||||||
| 4 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 5 | 17-8M0036405 | PIN (BEARING RACE) | 2 | ||||||
| 6 | 8M0041759 | BRACKET | 1 | ||||||
| 7 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
| 8 | 76867 | COVER (Bottom) | 1 | ||||||
| 9 | 10-828214 | SCREW, (.312-18 x 2.00) Hex Flange | 2 | ||||||
| 10 | 10-66717 | SCREW, (.375-16 x 3.250) | 8 | ||||||
| 11 | 10-74824 | SCREW, (.312-18 x 1.250) | 6 | ||||||
| 12 | 26852 | CAP, Nylon | 1 | ||||||
| 13 | 10-856832 | SCREW, (.250-20 x 1.750) | 1 | ||||||
| 14 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 15 | 1159-832760T1 | END CAP ASSEMBLY | 1 | ||||||
| 16 | 25-54029 | O-RING, (2.800 x .103) | 1 | ||||||
| 17 | 31-16756A4 | BEARING KIT | 1 | ||||||
| 18 | NSS | NOT SOLD SEPARATE, Bearing Race | 1 | ||||||
| 19 | 26-41953 | SEAL | 1 | ||||||
| 20 | 10-881190 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 21 | 1156-8M0050233 | END CAP ASSEMBLY | 1 | ||||||
| 22 | 25-62700 | O-RING, (3.237 x .103) | 1 | ||||||
| 23 | 26-41953 | SEAL | 2 | ||||||
| 24 | 10-28636 | SCREW, (.250-20 x .750) | 2 | ||||||
| 25 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 26 | 10-8M0046139 | SCREW, Flat Head (.250-20 x 0.75) | 2 | ||||||
| 27 | 8519371 | LEVER, Throttle Position Indicator | 1 | ||||||
| 28 | 8538821 | BRACKET, Throttle Position Indicator Mount | 1 | ||||||
| 29 | 23-856954 | BUSHING | 3 | ||||||
| 30 | 10-69035 | SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel | 1 | ||||||
| 31 | 25-834985 | GROMMET | 3 | ||||||
| 32 | 83295211 | INDICATOR, Throttle Position (Inside) | 1 | ||||||
| 33 | 8582261 | COVER, TPS | 1 | ||||||
| 34 | 10-8508281 | SCREW, (#10-32 x 2.00), TPS to Bracket | 3 | ||||||
| 35 | 8M0008117 | LINK ASSEMBLY | 1 | ||||||
| 36 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative | 1 | ||||||
| 36 | 84-88439A46 | CABLE ASSEMBLY, Battery - Positive | 1 | ||||||
| 37 | 10-81893414 | SCREW, (M8 x 14) | 1 | ||||||
| 38 | 84-93388A1 | CABLE ASSEMBLY, (6.00 Inches) Black | 1 | ||||||
| 39 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches) | 2 | 8M0047428 | |||||
| 40 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 1-1/4 Inches) | 2 | 8M0047428 |
