200XS SST - Serial 1E050629 and Up - Oil Lines

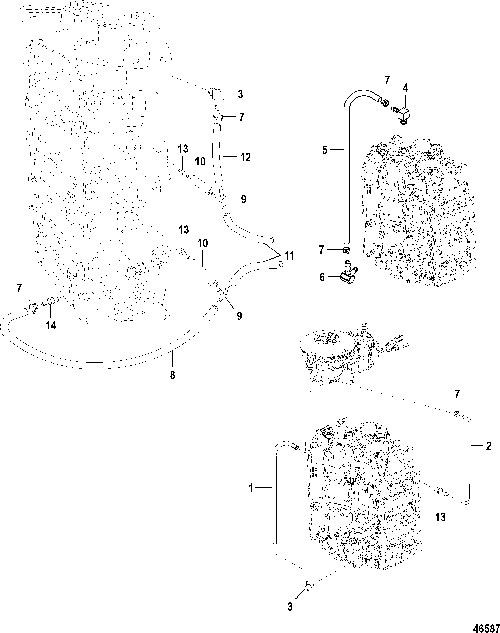

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 30 Inches) | 1 | 85606065 | |||||
| 2 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 22.5 Inches) | 1 | 85606065 | |||||
| 3 | 22-887801 | FITTING, Elbow 90 Degree (.0625-27) | 2 | ||||||
| 4 | 21-8592352 | CHECK VALVE, 90 Degree (.0625-27) | 2 | ||||||
| 5 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 16.5 Inches) | 2 | 85606065 | |||||
| 6 | 22-151333 | FITTING | 2 | ||||||
| 7 | 69355 | TIE STRAP, (5.50 Inches) | AR | ||||||
| 8 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to fit) | 1 | 85606065 | |||||
| 9 | 22-59169003 | FITTING, Tee | 2 | ||||||
| 10 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 1.5 Inches) | 2 | 85606065 | |||||
| 11 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to fit) | 2 | 85606065 | |||||
| 12 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to fit) | 1 | 85606065 | |||||
| 13 | 21-426233 | CHECK VALVE | 3 | ||||||
| 14 | 21-426982 | CHECK VALVE | 1 |
