200XS SST - Serial 1E050629 and Up - Throttle Lever

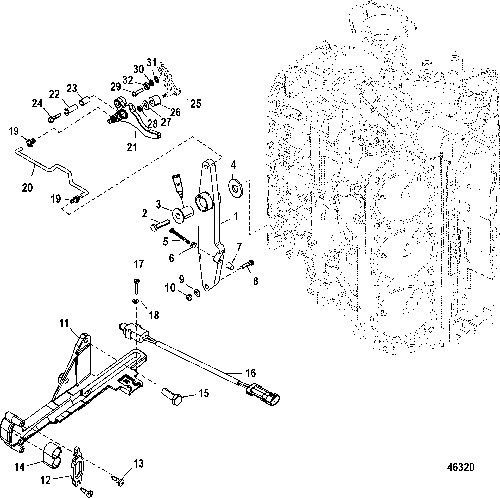

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0040990 | LEVER, Throttle Control | 1 | ||||||
| 2 | 10-818165 | SCREW, (.375-16 x 1.75) | 1 | ||||||
| 3 | 23-55164 | BUSHING | 1 | ||||||
| 4 | 23-858959 | SPACER | 1 | ||||||
| 5 | 10-64022 | SCREW, (.250-20 x 2.125) | 1 | ||||||
| 6 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 7 | 26852 | CAP, Nylon | 1 | ||||||
| 8 | 42927 | INSERT | 1 | ||||||
| 9 | 12-35459 | WASHER | 1 | ||||||
| 10 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 11 | 814283T6 | BRACKET ASSEMBLY, Anchor | 1 | ||||||
| 12 | 98889 | LATCH | 1 | ||||||
| 13 | 10-42975 | DRIVE SCREW | 2 | ||||||
| 14 | 39519 | CUP | 1 | ||||||
| 15 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 3 | ||||||
| 16 | 87-8M0052939 | SWITCH | 1 | ||||||
| 17 | 10-77478 | SCREW, (#6-32 x .875) | 2 | ||||||
| 18 | 12-27882 | WASHER | 2 | ||||||
| 19 | 23-932481 | BUSHING, Swivel | 2 | ||||||
| 20 | 8508152 | ROD | 1 | ||||||
| 21 | 8562211 | CAM | 1 | ||||||
| 22 | 23-856895 | BUSHING | 1 | ||||||
| 23 | 30-856896 | BEARING | 1 | No Longer Available | |||||
| 24 | 10-81893440 | SCREW, (M8 x 40) | 1 | ||||||
| 25 | 850286A03 | LEVER/ROLLER KIT, Throttle | 1 | ||||||
| 26 | 8M0072162 | ROLLER | 1 | 889610 | |||||
| 27 | 12-56681 | WASHER, (.203 x .500 x .032) | 1 | ||||||
| 28 | 11-826709104 | NUT, (#8-32) Stainless Steel | 1 | ||||||
| 29 | 10-889354 | SCREW, Special | 1 | ||||||
| 30 | 12-8M0095734 | WASHER, Spool | 1 | No Longer Available | |||||
| 31 | 13-69432 | LOCKWASHER, External (#10) | 1 | ||||||
| 32 | 12-881991 | WASHER, Cupped | 1 |
