200XS SST - Serial 1E050629 and Up - Flywheel/Alternator

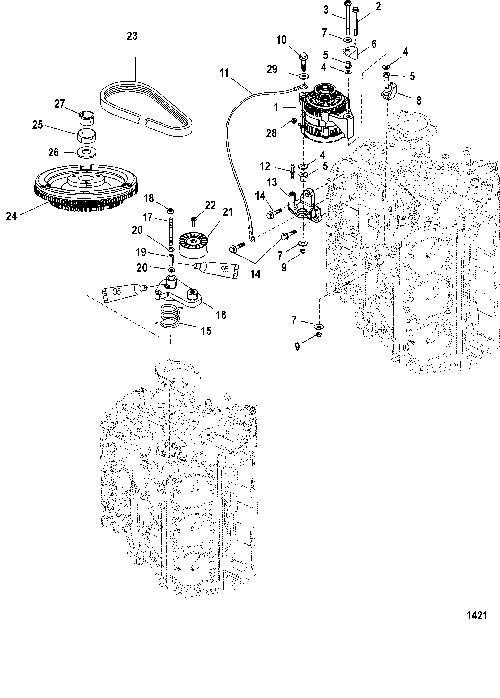

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0064021 | ALTERNATOR KIT | 1 | 889955A03 | |||||
| 2 | 10-8M0012503 | SCREW, (M10 x 1.5) | 1 | ||||||
| 3 | 10-40108120 | SCREW, (M10 x 120) Hex Flange - Stainless Steel | 1 | ||||||
| 4 | 12-8M0042641 | WASHER, (.390 x 1.00 x .06) | 3 | ||||||
| 5 | 23-856975 | MOUNT | 3 | ||||||
| 6 | 858391T01 | BRACKET | 1 | ||||||
| 7 | 12-845998 | WASHER, (.406 x 1.250 x .089) | 3 | ||||||
| 8 | 858393T01 | BRACKET | 1 | ||||||
| 9 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 | ||||||
| 10 | 10-82446155 | SCREW, (M10 x 55) | 1 | ||||||
| 11 | 84-856583T2 | CABLE ASSEMBLY | 1 | ||||||
| 12 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| 12 | 17-8M0042972 | PIN, Special (1.75 Inches) | 1 | ||||||
| 13 | 857142T | BRACKET | 1 | ||||||
| 14 | 10-812618 | SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch | 3 | ||||||
| 15 | 24-855798001 | SPRING | 1 | ||||||
| 16 | 856815T2 | ARM TENSIONER ASSEMBLY | 1 | ||||||
| 17 | 16-8M0034457 | STUD, (M10 x 85) | 1 | ||||||
| 18 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 1 | ||||||
| 19 | 23-8568941 | BUSHING | 1 | ||||||
| 20 | 12-4002320 | WASHER | 2 | ||||||
| 21 | 852385A2 | PULLEY ASSEMBLY | 1 | ||||||
| 22 | 10-4010835 | SCREW, (M10 x 35) Hex Flange - Stainless Steel | 1 | ||||||
| 23 | 57-828507Q4 | BELT | 1 | ||||||
| 24 | 281-859734T1 | FLYWHEEL | 1 | ||||||
| 25 | 11-52901 | NUT, (.625-18) | 1 | ||||||
| 26 | 12-33001 | WASHER, (.641 x 1.250 x .190) | 1 | 68229 | |||||
| 27 | 19-45907 | PLUG, Yellow | 1 | ||||||
| 28 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 29 | 12-4002319 | WASHER | 1 |
