200XS SST - Serial 1E050629 and Up - Water Hoses

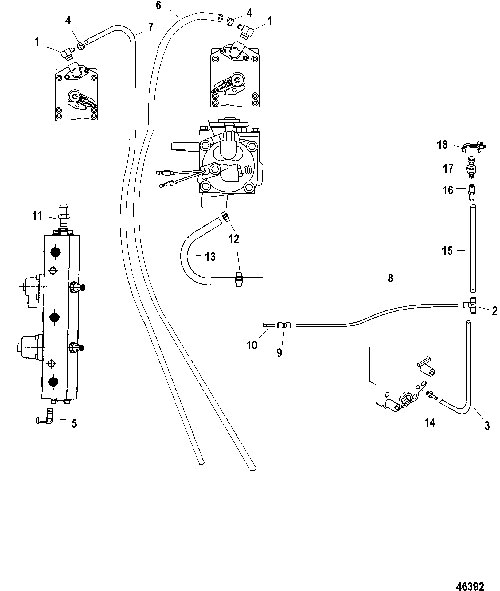

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-136071 | ELBOW | 2 | ||||||
| 2 | 22-875207 | TEE, Fitting | 1 | ||||||
| 3 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 5 Inches) | 1 | ||||||
| 4 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 5 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 6 | 32-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 21 Inches) | 1 | ||||||
| 7 | 32-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 17.5 Inches) | 1 | ||||||
| 8 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 44 Inches) | 1 | ||||||
| 9 | 22-859747 | COUPLER | 1 | ||||||
| 10 | 22-859732 | PLUG | 1 | ||||||
| 11 | 22-291112 | FITTING | 1 | ||||||
| 12 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 13 | 32-83476463 | TUBING, (32.00 Inches Bulk) (Cut to 18.5 Inches) | 1 | ||||||
| 14 | 22-881866 | FITTING | 1 | ||||||
| 15 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 15 Inches) | 1 | ||||||
| 16 | 22-892403 | FITTING | 1 | ||||||
| 17 | 881879A7 | SENSOR KIT, (0-50 PSI) (Tan) | 1 | ||||||
| 18 | 54-883066 | CLIP, (.865) | 1 |
