200XS SST - Serial 1E050629 and Up - Cylinder Head

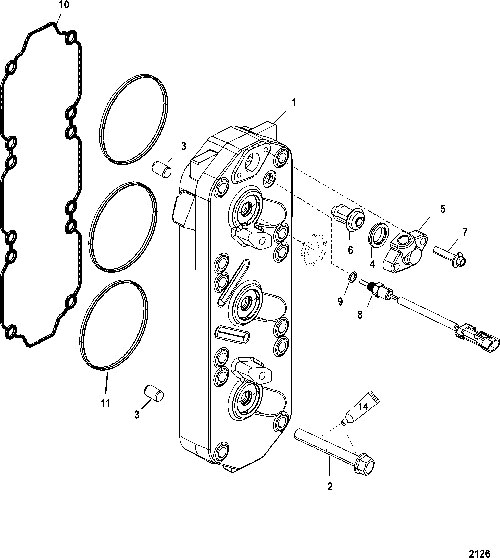

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 900-8M8025141 | CYLINDER HEAD ASSEMBLY | 1 | ||||||
| 1 | 900-8M8025142 | CYLINDER HEAD ASSEMBLY | 1 | ||||||
| 2 | 10-878217 | SCREW, (.375-16 x 2.750) | 24 | ||||||
| 3 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 4 | 27-62386001 | GASKET | 2 | ||||||
| 5 | 8M0039353 | COVER | 2 | 8307372 | |||||
| 6 | 833072003 | THERMOSTAT, 62°C (143°F) | 2 | ||||||
| 7 | 10-82130025 | SCREW, (M6 x 25) | 4 | ||||||
| 8 | 885342002 | SENSOR ASSEMBLY | 2 | ||||||
| 9 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 2 | ||||||
| 10 | 8584521 | SEAL | 2 | ||||||
| 11 | 8597721 | SEAL | 6 |
