200XS SST - Serial 1E050629 and Up - Exhaust Plate

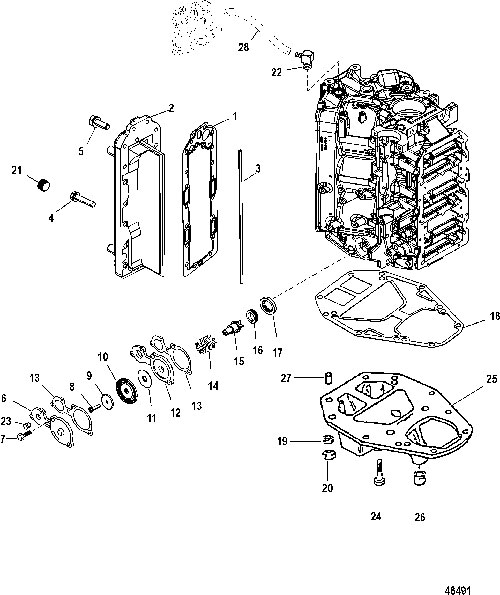

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 27-190506 | GASKET | 1 | ||||||
| 2 | 828343A05 | PLATE ASSEMBLY, Exhaust Divider | 1 | ||||||
| 3 | 26-814754 | SEAL, (12.50 Inches) | 1 | ||||||
| 4 | 10-8263561 | SCREW AND WASHER, (.312-18 x 1.500) | 16 | ||||||
| 5 | 10-881190 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 6 | 8M0039767 | COVER, Relief Valve | 1 | ||||||
| 7 | 10-31984 | SCREW, (.312-18 x 1.375) | 4 | ||||||
| 8 | 10-69570 | SCREW, (#10-16 x .750) | 1 | ||||||
| 9 | 12-76451 | WASHER | 1 | ||||||
| 10 | 144791 | DIAPHRAGM | 1 | ||||||
| 11 | 16496 | DEFLECTOR, Water | 1 | ||||||
| 12 | 16497A1 | PLATE | 1 | ||||||
| 13 | 27-78690002 | GASKET | 2 | ||||||
| 14 | 24-42996 | SPRING, (Stainless Steel) | 1 | ||||||
| 15 | 14480 | POPPET | 1 | ||||||
| 16 | 25-64872 | GROMMET | 1 | ||||||
| 17 | 65848 | CARRIER | 1 | ||||||
| 18 | 27-8231422 | GASKET | 1 | ||||||
| 19 | 12-822838 | WASHER, (.401 x .745 x .097) | 8 | ||||||
| 20 | 11-82671013 | NUT, (.375-24) Stainless Steel | 8 | ||||||
| 21 | 22-428611 | FITTING, Pipe - Brass (.750-14) | 1 | ||||||
| 22 | 22-8603001 | FITTING, Top of Block | 1 | ||||||
| 23 | 22-36382 | FITTING, (.250-18 x .62) Brass, Poppet Cover | 1 | ||||||
| 24 | 10-818218 | SCREW, (.375-16 x 2.500) | 2 | ||||||
| 25 | 8M0053611 | PLATE ASSEMBLY, Exhaust Extension | 1 | ||||||
| 26 | 26-88397 | SEAL | 1 | ||||||
| 27 | 17-16527 | PIN, Dowel | 2 | ||||||
| 28 | 32-774572 | HOSE, (48.00 Inches Bulk), Cylinder Block to Compressor Water Inlet | 1 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 | ||||||
| - | 61-848040A51 | POWERHEAD ASSEMBLY, Partial | 1 |
