225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Key Switch Assembly

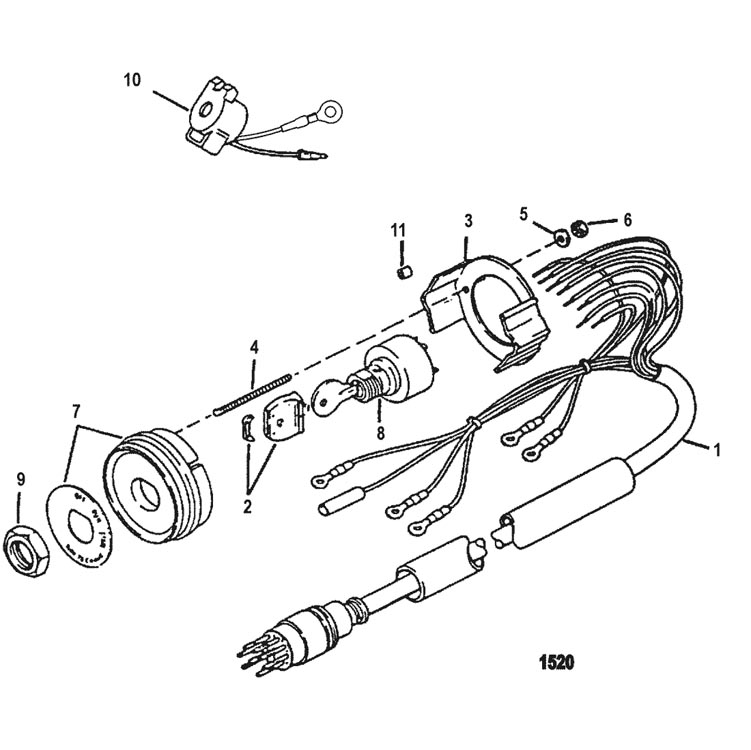

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-816626A15 | HARNESS ASSEMBLY, Key Switch (15.00 Feet) (15 FEET) | 1 | ||||||
| 2 | 90468A1 | COVER ASSEMBLY, Key | 2 | ||||||
| 3 | 76424 | BRACKET | 1 | ||||||
| 4 | 16-55422 | STUD, (#10-32 x 2.00) | 2 | ||||||
| 5 | 12-24676 | WASHER, (.200 x .440 x .032) | 2 | ||||||
| 6 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 7 | 816479A3 | PLATE KIT | 2 | ||||||
| 8 | 87-88107A5 | KEY SWITCH (See Below for Key) | 1 | 88107 | |||||
| 9 | 11-879755 | NUT, Special - Chrome Brass | 1 | 93543 | |||||
| 10 | 8M3001068 | ALARM ASSEMBLY, Audio Warning | 1 | 816492A1 | |||||
| 11 | 23-8127111 | SPACER, (.375) | 2 | ||||||
| 11 | 23-812711 | SPACER, (.250) | 2 | ||||||
| - | 894911 | KEY, Ignition (1A) | 1 | ||||||
| - | 894912 | KEY, Ignition (1B) | 1 | ||||||
| - | 894913 | KEY, Ignition (1C) | 1 | ||||||
| - | 894914 | KEY, Ignition (1D) | 1 | ||||||
| - | 894915 | KEY, Ignition (1E) | 1 | ||||||
| - | 894916 | KEY, Ignition (1F) | 1 | ||||||
| - | 894917 | KEY, Ignition (2A) | 1 | ||||||
| - | 894918 | KEY, Ignition (2B) | 1 | ||||||
| - | 894919 | KEY, Ignition (2C) | 1 | ||||||
| - | 8949110 | KEY, Ignition (2D) | 1 | ||||||
| - | 8949111 | KEY, Ignition (2E) | 1 | ||||||
| - | 8949112 | KEY, Ignition (2F) | 1 |
