225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Cylinder Block And End Caps

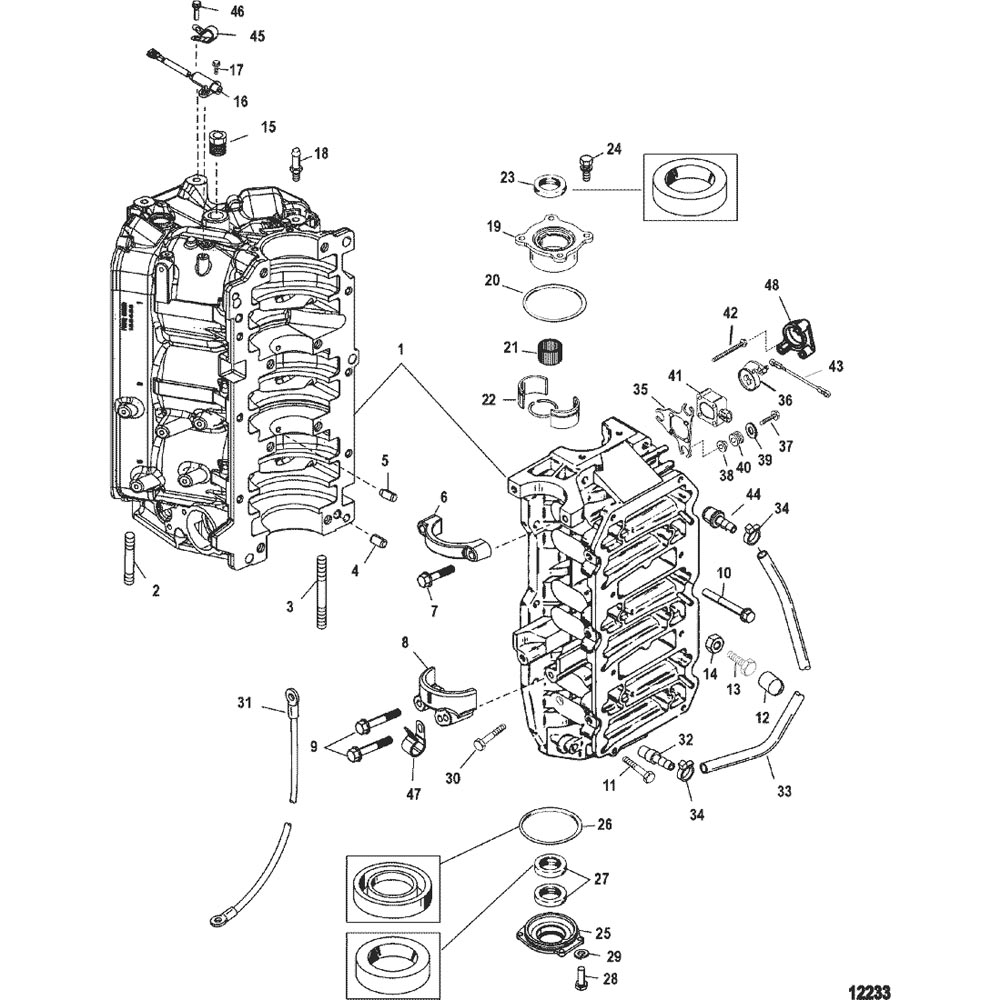

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 884-858961T02 | CYLINDER BLOCK | 1 | No Longer Available | |||||
| 2 | 16-8M0034443 | STUD, (.375-16/.375-24 x 2.040) | 2 | 847530 | |||||
| 2 | 16-8M0034443 | STUD, (.375-16/.375-24 x 2.040) | 6 | 847530 | |||||
| 3 | 16-8M0034430 | STUD, (.375-16/.375-24 x2.490) | 4 | 847529 | |||||
| 3 | 16-670654 | STUD, (.375 x 5.620) | 2 | 670653 | |||||
| 3 | 16-8M0034437 | STUD, (.375-16/.375-24 x 5.750) | 4 | 847532 | |||||
| 3 | 16-8M0034454 | STUD, (.375-16/.375-24 x 6.870) | 2 | 784385 | |||||
| 4 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 5 | 17-8M0036405 | PIN, Bearing Race | 2 | 67296 | |||||
| 6 | 8M0041759 | BRACKET | 1 | 8569662 | |||||
| 7 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
| 8 | 76867 | COVER, Bottom | 1 | ||||||
| 9 | 10-828214 | SCREW, (.312-18 x 2.00) Hex Flange | 2 | ||||||
| 10 | 10-66717 | SCREW, (.375-16 x 3.250) | 8 | ||||||
| 11 | 10-74824 | SCREW, (.312-18 x 1.250) | 6 | ||||||
| 12 | 26852 | CAP, Nylon | 1 | ||||||
| 13 | 10-856832 | SCREW, (.250-20 x 1.750) | 1 | ||||||
| 14 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 15 | 22-883048 | PLUG, (.500-14) | 1 | ||||||
| 16 | 8M0082988 | SENSOR | 1 | 8283582 | |||||
| 17 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 18 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| 19 | 1159-832760T1 | END CAP ASSEMBLY | 1 | ||||||
| 20 | 25-54029 | O-RING, (2.800 x .103) | 1 | ||||||
| 21 | 31-16756A4 | BEARING KIT | 1 | ||||||
| 22 | NSS | Bearing Race | 1 | Not Sold Separate | |||||
| 23 | 26-41953 | SEAL | 1 | ||||||
| 24 | 10-881190 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 25 | 1156-7809T1 | END CAP ASSEMBLY | 1 | ||||||
| 26 | 25-62700 | O-RING, (3.237 x .103) | 1 | ||||||
| 27 | 26-41953 | SEAL | 2 | ||||||
| 28 | 10-28636 | SCREW, (.250-20 x .750) | 4 | ||||||
| 29 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 30 | 10-81893414 | SCREW, (M8 x 14) | 1 | ||||||
| 31 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative | 1 | ||||||
| 32 | 21-426982 | CHECK VALVE | 1 | ||||||
| 33 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 19.00 Inch Length) | 1 | 99130122 | |||||
| 34 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 35 | 8538821 | BRACKET, Throttle Position Indicator Mount | 1 | ||||||
| 36 | 8519371 | LEVER, Throttle Position Indicator | 1 | ||||||
| 37 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 38 | 23-856954 | BUSHING | 3 | ||||||
| 39 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 40 | 25-834985 | GROMMET | 3 | ||||||
| 41 | 83295211 | INDICATOR, Throttle Position | 1 | ||||||
| 42 | 10-8508281 | SCREW, (#10-32 x 2.00) | 3 | ||||||
| 43 | 8M0084738 | LINK ASSEMBLY | 1 | 878175 | |||||
| 44 | 21-426233 | CHECK VALVE | 1 | ||||||
| 45 | 54-28700 | CLAMP | 1 | ||||||
| 46 | 10-8248324 | SCREW, (M6 x 16) | 1 | ||||||
| 47 | 54-859172 | CLAMP | 1 | ||||||
| 48 | 8582261 | COVER | 1 | ||||||
| - | 27-813859A02 | GASKET SET | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
