225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Exhaust Divider And Exhaust Plate

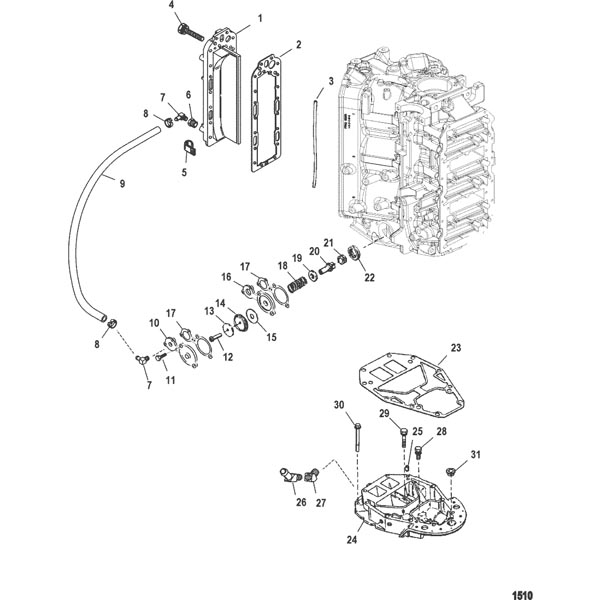

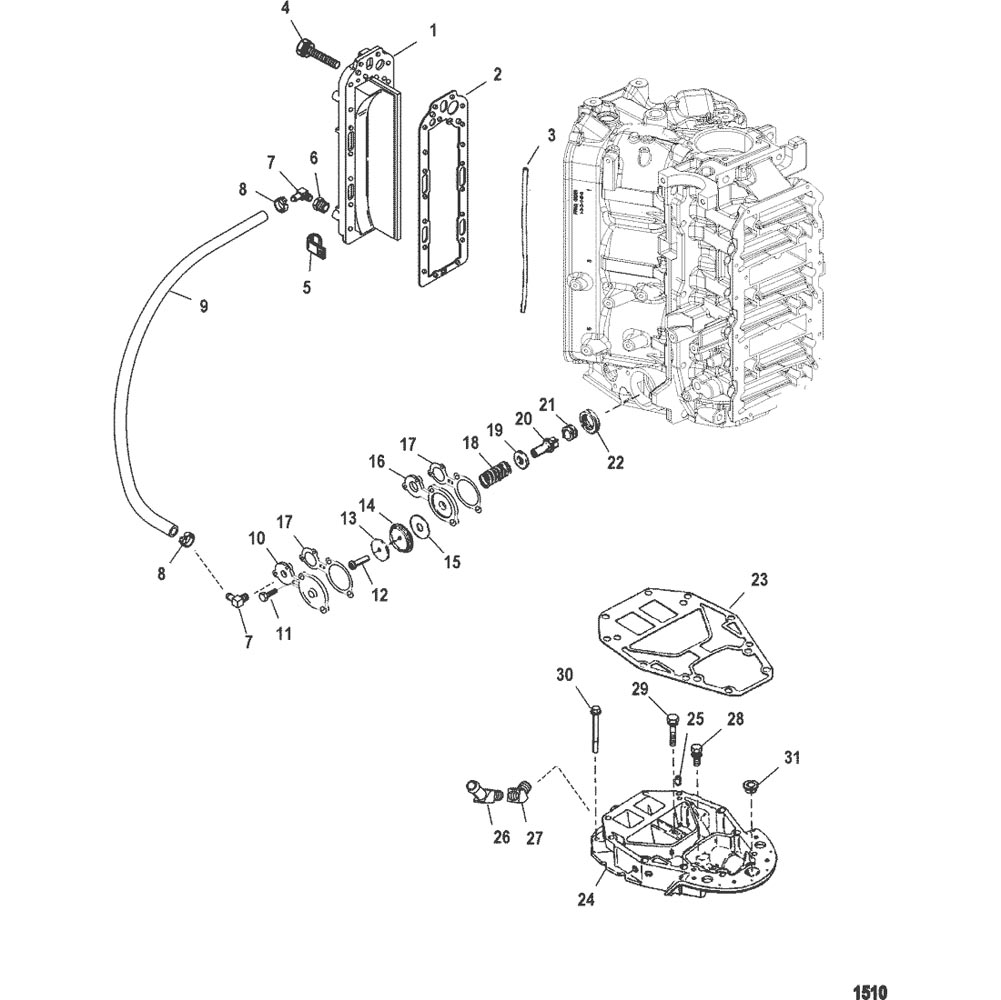

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840760T | PLATE, Exhaust Divider | 1 | No Longer Available | |||||
| 2 | 27-847525004 | GASKET | 1 | 8475251 | |||||
| 3 | 26-814754 | SEAL, (12.50 Inches) | 1 | ||||||
| 4 | 10-8263561 | SCREW AND WASHER, (.312-18 x 1.500) | 18 | ||||||
| 4 | 10-881190 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 5 | 54-814634 | CLAMP | 2 | ||||||
| 6 | 22-8231931 | ADAPTOR | 1 | ||||||
| 7 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass | 2 | ||||||
| 8 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 9 | 32-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 9.75 Inch Length) | 1 | ||||||
| 10 | 8M0039767 | COVER | 1 | 687291 | |||||
| 11 | 10-74824 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 12 | 10-69570 | SCREW, (#10-16 x .750) | 1 | ||||||
| 13 | 12-76451 | WASHER | 1 | ||||||
| 14 | 144791 | DIAPHRAGM | 1 | ||||||
| 15 | 16496 | DEFLECTOR, Water | 1 | ||||||
| 16 | 16497A1 | PLATE | 1 | ||||||
| 17 | 27-78690002 | GASKET | 2 | 78690 | |||||
| 18 | 24-64878 | SPRING, (Black) | 1 | ||||||
| 19 | 12-85303 | WASHER | 1 | ||||||
| 20 | 14480 | POPPET | 1 | ||||||
| 21 | 25-64872 | GROMMET | 1 | ||||||
| 22 | 65848 | CARRIER | 1 | ||||||
| 23 | 27-8231422 | GASKET | 2 | ||||||
| 24 | 18260T5 | PLATE ASSEMBLY, Exhaust | 1 | ||||||
| 25 | 17-8M0043826 | PIN, Dowel (.875) | 2 | 823106 | |||||
| 26 | 22-14867 | ELBOW, 45 Degree (45 Degrees) | 1 | ||||||
| 27 | 22-8M0109010 | FITTING, Elbow (45 Degree) | 1 | 29085 | |||||
| 28 | 10-66727 | SCREW, (.312-18 x 1.250) | 1 | ||||||
| 29 | 10-68783 | SCREW, (.312-18 x 2.50) | 1 | ||||||
| 30 | 10-898833 | SCREW, (.375-16 x 3.50) | 3 | 66725 | |||||
| 31 | 23-27132 | BUSHING | 1 | ||||||
| - | 27-813859A02 | GASKET SET | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
