225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Cylinder Head

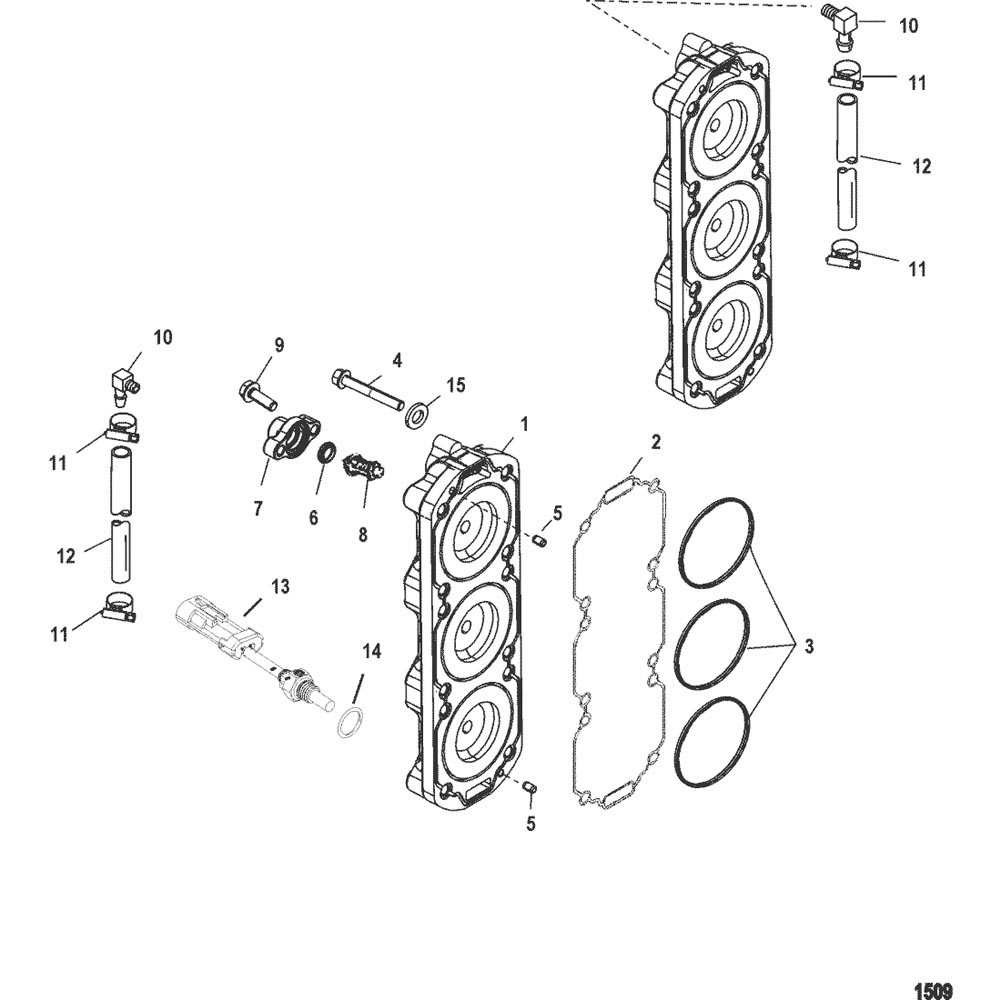

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849496T12 | CYLINDER HEAD | 2 | ||||||
| 2 | 8584521 | SEAL | 2 | ||||||
| 3 | 8597721 | SEAL | 6 | ||||||
| 4 | 10-878217 | SCREW, (.375-16 x 2.750) | 24 | ||||||
| 5 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 6 | 27-62386001 | GASKET | 2 | 62386 | |||||
| 7 | 90390A1 | COVER KIT | 2 | ||||||
| 8 | 14586 | THERMOSTAT | 2 | ||||||
| 9 | 10-40011149 | SCREW, (M8 x 25) Stainless Steel | 4 | ||||||
| 10 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass | 2 | ||||||
| 11 | 54-815504104 | CLAMP, Worm Gear | 4 | ||||||
| 12 | 32-774572 | HOSE, (48.00 Inches Bulk) (Cut to 2.00 Inch Length)(To Telltail) | 1 | ||||||
| 12 | 32-774572 | HOSE, (48.00 Inches Bulk) (Cut to 2.00 Inch Length)(To Exhaust Plate) | 1 | ||||||
| 13 | 885342002 | SENSOR ASSEMBLY | 2 | 885342001 | |||||
| 14 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 14 | 25-896699 | O-RING, (.351 x .072) | 2 | 888814 | |||||
| 15 | 12-822838 | WASHER, (.401 x .745 x .097) | 24 | ||||||
| - | 27-813859A02 | GASKET SET | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
