225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Water Hoses

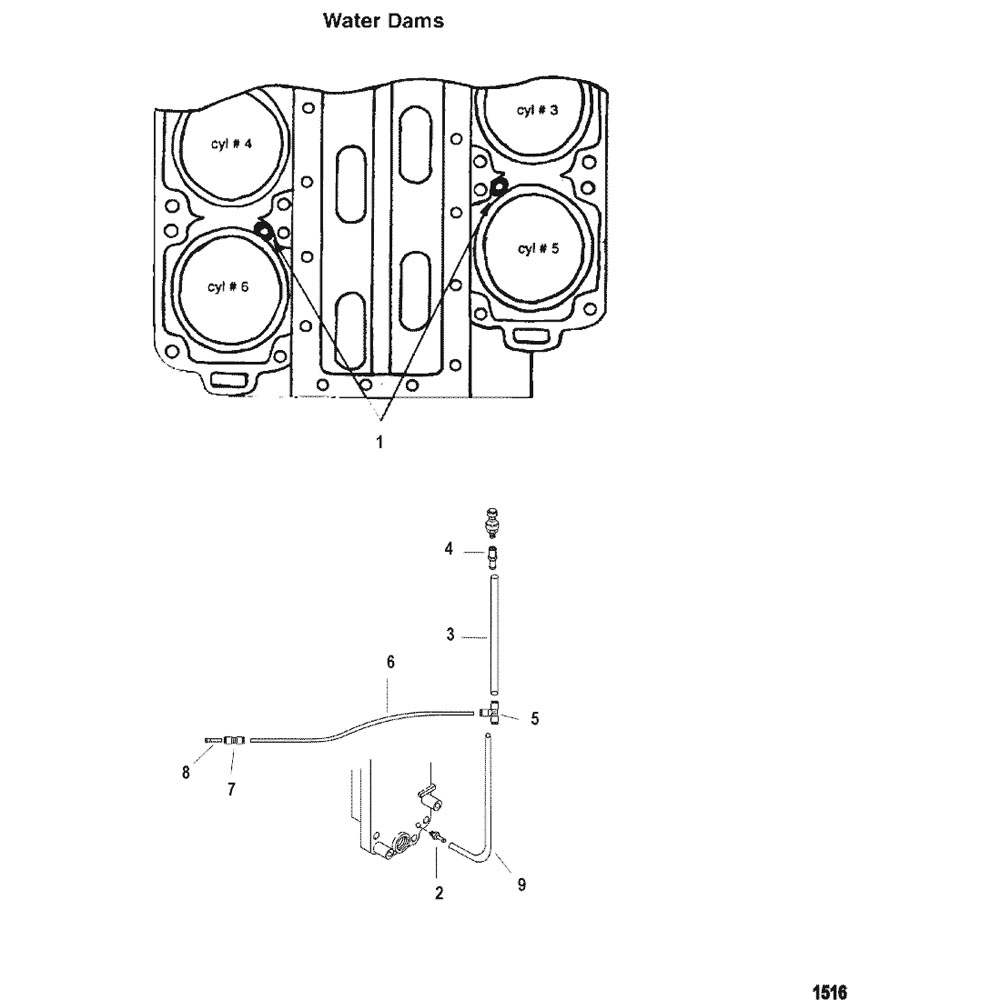

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0108355 | HOSE, (57.00 Inches Bulk), Water Dams | 1 | 830756109 | |||||
| 2 | 22-881866 | FITTING | 1 | ||||||
| 3 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 12.00 Inch Length) | 1 | ||||||
| 4 | 22-892403 | FITTING | 1 | 859431 | |||||
| 5 | 22-875207 | TEE, Fitting | 1 | ||||||
| 6 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 44.00 Inch Length) | 1 | ||||||
| 7 | 22-859747 | COUPLER | 1 | ||||||
| 8 | 22-859732 | PLUG | 1 | ||||||
| 9 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inch Length) | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
