225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Swivel Bracket And Steering Arm(Long)

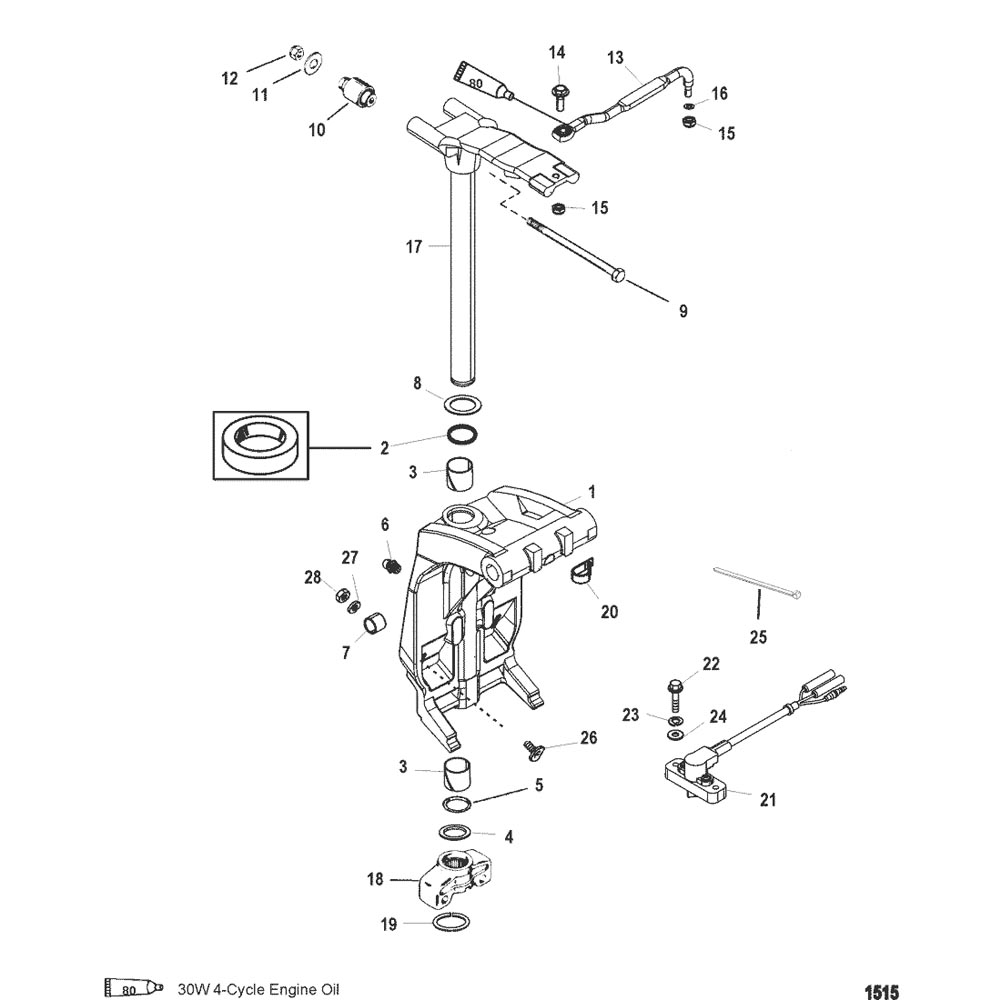

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1499-8M0102865 | SWIVEL BRACKET ASSEMBLY, Black | 1 | 8710T20 | |||||
| 2 | 26-87735 | SEAL, Oil, Lower | 1 | ||||||
| 3 | 23-818764 | BUSHING | 2 | ||||||
| 4 | 23-816039 | SPACER | 1 | ||||||
| 5 | 25-33504 | O-RING | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 2 | ||||||
| 7 | 23-821207 | BUSHING | 2 | ||||||
| 8 | 12-816432 | THRUST WASHER | 1 | ||||||
| 9 | 10-8M0000491 | SCREW, (.437-20 x 7.50) | 2 | 78689 | |||||
| 10 | 776981 | MOUNT | 2 | ||||||
| 11 | 12-78688 | WASHER | 2 | ||||||
| 12 | 11-34933 | NUT, (.437-20) Stainless Steel | 2 | ||||||
| 13 | 92876A12 | LINK ROD ASSEMBLY | 1 | 92876A10 | |||||
| 14 | 10-849838 | SCREW, (.375-24 x 1.250) | 1 | ||||||
| 15 | 11-826709113 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 16 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 17 | 17-67706A55 | SWIVEL PIN ASSEMBLY, Steering Arm | 1 | No Longer Available | |||||
| 18 | 86580A1 | YOKE ASSEMBLY, Bottom | 1 | No Longer Available | |||||
| 19 | 53-67684 | RING, Retaining | 1 | ||||||
| 20 | 54-54457 | J CLIP | 1 | ||||||
| 21 | 859187A1 | SENDER ASSEMBLY, Trim | 1 | ||||||
| 22 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 23 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 24 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 25 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 26 | 8M0045383 | STRIKER PLATE | 2 | 996301 | |||||
| 27 | 13-58643 | LOCKWASHER, (.375) | 2 | ||||||
| 28 | 11-46335 | NUT, (.375-24) | 2 |
