225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Oil System

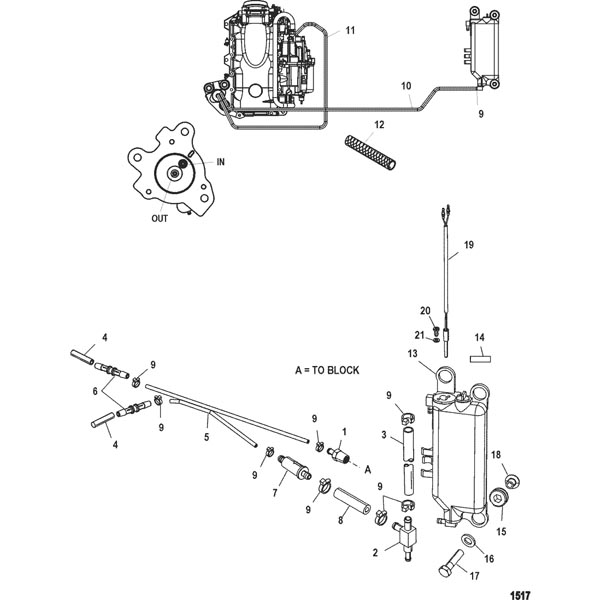

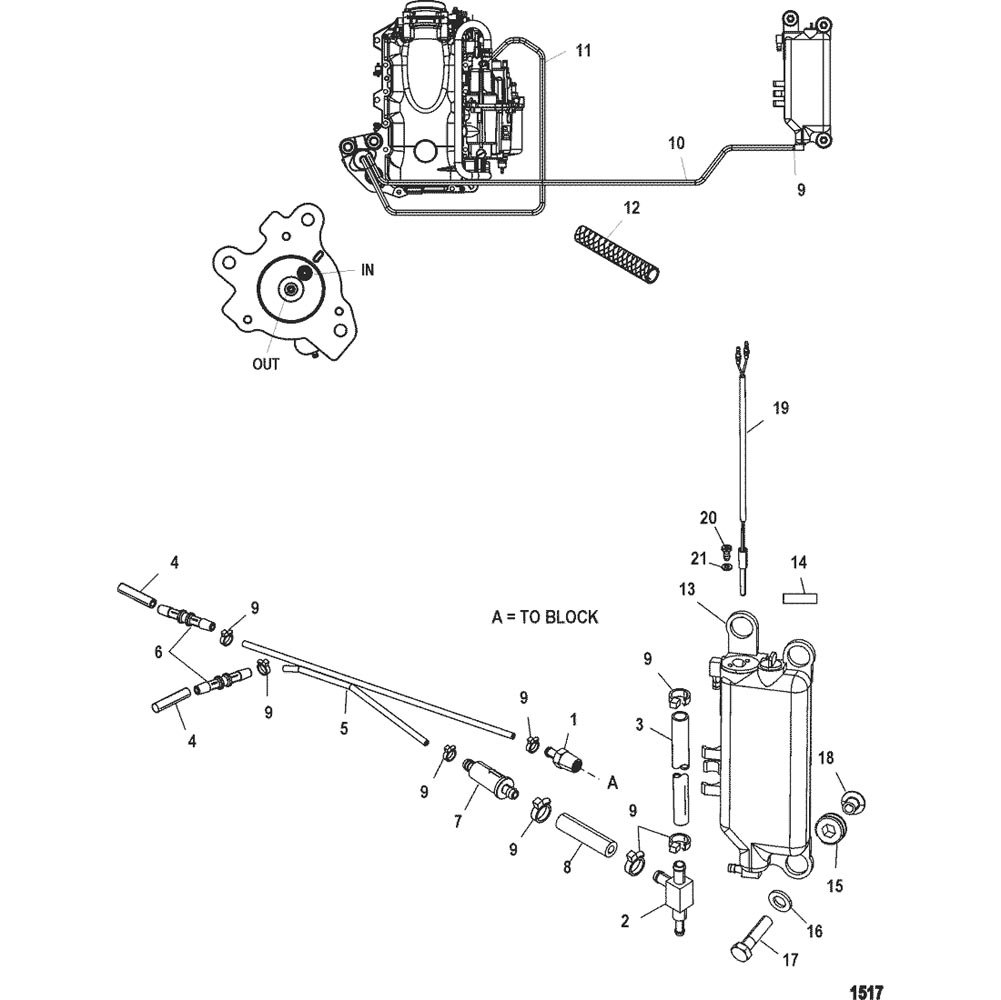

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 21-8781051 | CHECK VALVE | 1 | ||||||
| 2 | 22-424254 | FITTING | 1 | ||||||
| 3 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 6.00 Inch Length) | 1 | 830756109 | |||||
| 4 | NSS | Cap | 2 | Not Sold Separate | |||||
| 5 | 32-875289 | HOSE | 1 | ||||||
| 6 | 22-858955 | CONNECTOR | 2 | ||||||
| 7 | 35-875284T01 | FILTER, Oil - In Line | 1 | 875284001 | |||||
| 8 | 32-875283 | HOSE, (2.00 Inches) | 1 | ||||||
| 9 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 9 | 69355 | TIE STRAP, (5.50 Inches) | AR | ||||||
| 9 | 56762 | TIE STRAP, (4.00 Inches) | AR | ||||||
| 10 | 32-892830053 | HOSE, (24.00 Inches Braided) | 1 | ||||||
| 11 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 21.00 Inch Length) | 1 | 85606065 | |||||
| 12 | 32-828547753 | CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 10.00 Inch Length) (Use Where Applicable) | 1 | ||||||
| 13 | 8M0063190 | RESERVOIR ASSEMBLY | 1 | 833069T9 | |||||
| 14 | NSS | Decal | 1 | Not Sold Separate | |||||
| 15 | 25-855362001 | GROMMET | 3 | 855362 | |||||
| 16 | 12-49436 | WASHER | 3 | ||||||
| 17 | 10-60411 | SCREW, (.312-18 x 1.250) | 3 | ||||||
| 18 | 10-855634 | SCREW | 3 | No Longer Available | |||||
| 19 | 87-856156T02 | SWITCH ASSEMBLY | 1 | 856156A2 | |||||
| 20 | 10-58376 | SCREW, (.164-18 x .375) | 1 | ||||||
| 21 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
