225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Vapor Separator Components

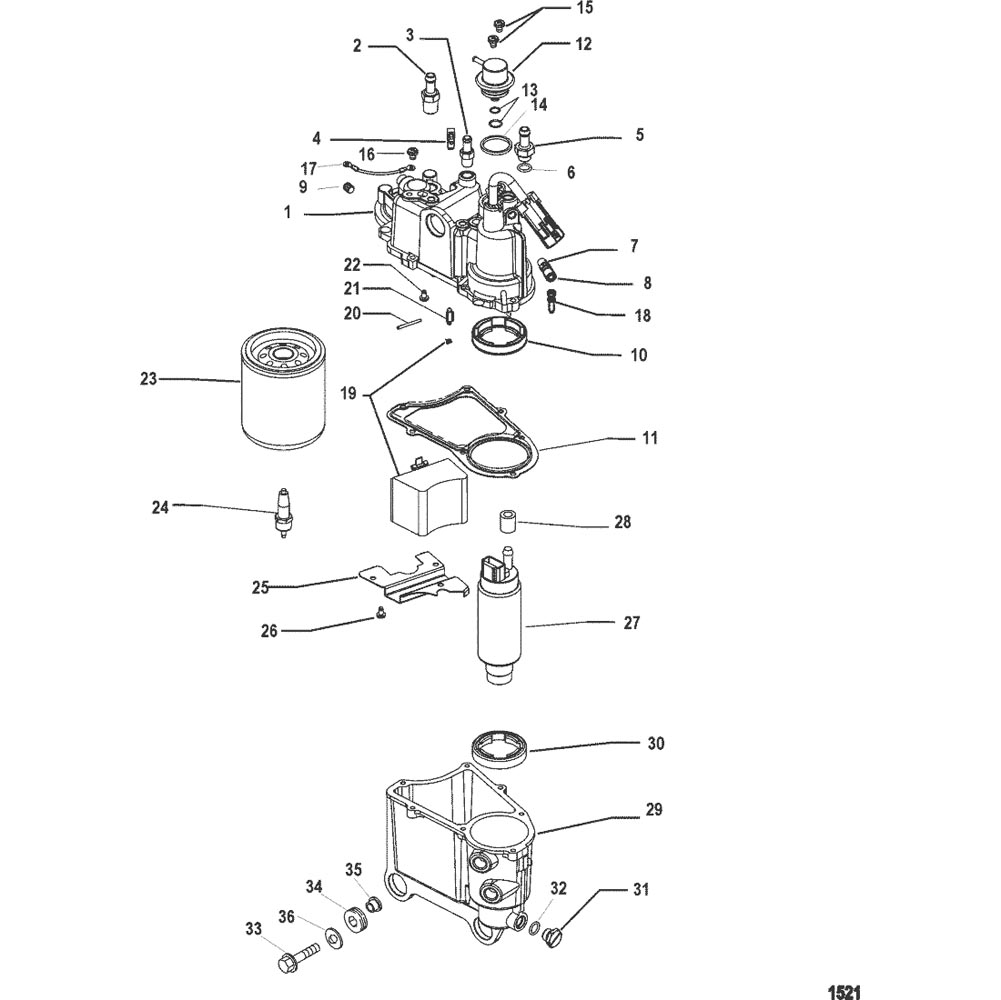

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Vapor Seperator Assembly | 1 | Not Sold Separate | |||||
| 1 | 883245T3 | COVER KIT | 1 | ||||||
| 2 | 22-881740 | FITTING, Straight | 1 | ||||||
| 3 | 22-883249 | FITTING | 1 | ||||||
| 4 | NSS | Elbow | 1 | Not Sold Separate | |||||
| 5 | 22-855437A2 | FITTING KIT, Pump Outlet | 1 | ||||||
| 6 | 25-8M0062785 | O-RING | 1 | 883209 | |||||
| 7 | 883219 | VALVE | 1 | ||||||
| 8 | 883220 | CAP | 1 | ||||||
| 9 | 19-883208 | PLUG | 1 | ||||||
| 10 | 26-883248 | SEAL | 1 | ||||||
| 11 | 27-883252 | GASKET | 1 | ||||||
| 12 | 883257T1 | REGULATOR | 1 | ||||||
| 13 | 25-883593A1 | O-RING KIT | 1 | ||||||
| 14 | 12-883258 | WASHER | 1 | ||||||
| 15 | 10-883261 | SCREW, (M5 x .8) | 2 | ||||||
| 16 | 10-883261 | SCREW, (M5 x .8) | 1 | ||||||
| 17 | 84-881831 | WIRE ASSEMBLY | 1 | ||||||
| 18 | 1395-808612 | SCREW AND WASHER, (#8-32 x .750) | 7 | ||||||
| 19 | 883253A1 | FLOAT KIT | 1 | ||||||
| 20 | F10064 | SHAFT | 1 | ||||||
| 21 | 883247A1 | VALVE/SEAT KIT, Inlet | 1 | ||||||
| 22 | 10-883223 | SCREW, (M6 x 16) | 1 | ||||||
| 23 | 35-18458Q4 | FILTER KIT | 1 | ||||||
| 24 | 8285861 | PROBE | 1 | ||||||
| 25 | 889318002 | BAFFLE | 1 | 883260 | |||||
| 26 | 10-883223 | SCREW, (M6 x 16) | 3 | ||||||
| 27 | 881705T1 | PUMP KIT | 1 | ||||||
| 28 | 23-8M6000589 | SLEEVE | 1 | 855428 | |||||
| 29 | 883256T1 | BOWL KIT | 1 | ||||||
| 30 | 26-883248 | SEAL | 1 | ||||||
| 31 | 19-855435A1 | PLUG KIT | 1 | ||||||
| 32 | 25-8M0062785 | O-RING | 1 | 883209 | |||||
| 33 | 10-81893435 | SCREW, (M8 x 35) | 3 | ||||||
| 34 | 23-855364 | BUSHING | 3 | ||||||
| 35 | 25-855362001 | GROMMET | 3 | 855362 | |||||
| 36 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 3 |
