225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Air Handler

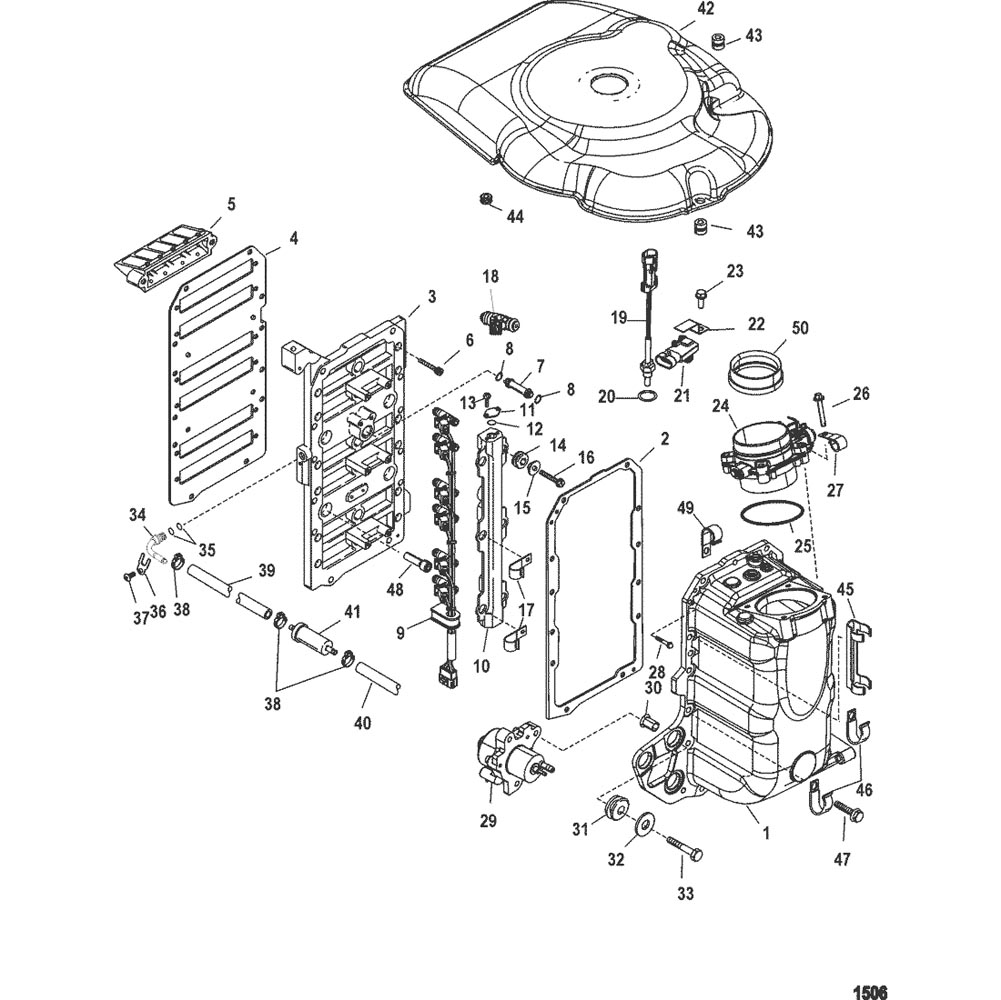

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 841085T05 | AIR HANDLER ASSEMBLY | 1 | No Longer Available | |||||
| 1 | 858708T1 | PLENUM KIT, Air | 1 | ||||||
| 2 | 27-840485 | GASKET | 1 | ||||||
| 3 | 840396T1 | ADAPTOR PLATE | 1 | ||||||
| 4 | 27-840484 | GASKET | 1 | ||||||
| 5 | 840805T1 | REED BLOCK ASSEMBLY | 6 | ||||||
| 6 | 10-55715 | SCREW, (.250-20 x .880) | 12 | ||||||
| 7 | 840892 | FITTING, Fuel | 1 | ||||||
| 8 | 25-862053 | O-RING | 2 | ||||||
| 9 | 84-840482A2 | HARNESS ASSEMBLY | 1 | ||||||
| 10 | 840889T | FUEL RAIL | 1 | ||||||
| 11 | 840422A1 | PLATE KIT | 2 | ||||||
| 12 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 13 | 10-188642 | SCREW, (#8-32 x .500) | 4 | ||||||
| 14 | 25-840893 | GROMMET | 6 | ||||||
| 15 | 840891 | SPACER | 12 | ||||||
| 16 | 10-812987 | SCREW, (#10-24 x 1.250) | 6 | ||||||
| 17 | 54-63153 | J CLIP | 2 | ||||||
| 18 | 840481T01 | INJECTOR ASSEMBLY | 6 | 840481001 | |||||
| 19 | 889575 | SENSOR ASSEMBLY | 1 | ||||||
| 19 | 885342002 | SENSOR ASSEMBLY | 1 | 885342001 | |||||
| 20 | 25-627021 | O-RING, (.301 x .070) | 1 | ||||||
| 20 | 25-896699 | O-RING, (.351 x .072) | 1 | 888814 | |||||
| 21 | 854445 | SENSOR, MAP | 1 | ||||||
| 22 | 884522 | BRACKET, MAP Sensor | 1 | ||||||
| 23 | 10-1993716 | SCREW, (M6 x 16) | 1 | ||||||
| 24 | 883957T1 | THROTTLE BODY KIT | 1 | ||||||
| 25 | 25-855423 | O-RING | 1 | ||||||
| 26 | 10-82130040 | SCREW, (M6 x 40) | 4 | ||||||
| 27 | 54-55098 | J CLIP | 2 | ||||||
| 28 | 10-4001987 | SCREW, (M4 x 16) | 2 | ||||||
| 29 | 8M0101630 | PUMP ASSEMBLY | 1 | 879892T04 | |||||
| 30 | 23-855364 | BUSHING | 3 | ||||||
| 31 | 25-855362001 | GROMMET | 3 | 855362 | |||||
| 32 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 3 | ||||||
| 33 | 10-81893430 | SCREW, (M8 x 30) | 3 | ||||||
| 34 | 22-841014A1 | FITTING ASSEMBLY | 1 | No Longer Available | |||||
| 35 | 25-20385 | O-RING, (.239 x .070) | 2 | ||||||
| 36 | 54-841022 | CLAMP | 1 | ||||||
| 37 | 10-883376 | SCREW, (#10-24 x .375) | 1 | ||||||
| 38 | 54-856880 | CLAMP, Hose (15.3) | 3 | ||||||
| 39 | 32-774572 | HOSE, (48.00 Inches Bulk) (Cut to 3.00 Inch Length) | 1 | ||||||
| 40 | 32-774572 | HOSE, (48.00 Inches Bulk) (Cut to 11.50 Inch Length) | 1 | ||||||
| 41 | 35-816296K2 | FILTER, Fuel | 1 | ||||||
| 42 | 880194T05 | COVER ASSEMBLY | 1 | ||||||
| 43 | 25-840525 | GROMMET | 2 | ||||||
| 44 | 25-20116 | GROMMET | 1 | ||||||
| 45 | 8261151 | CLAMP, Connector | 1 | ||||||
| 46 | 54-97224 | J CLIP | 2 | ||||||
| 47 | 10-817504 | SCREW, (.250-20 x 1.500) Stainless Steel | 12 | ||||||
| 48 | 10-55715 | SCREW, (.250-20 x .880) | 4 | ||||||
| 49 | 54-55098 | J CLIP | 1 | ||||||
| 50 | 25-855613 | GROMMET | 1 | ||||||
| - | 27-813859A02 | GASKET SET | 1 |
