225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Hydraulic Pump And Mounting Brackets

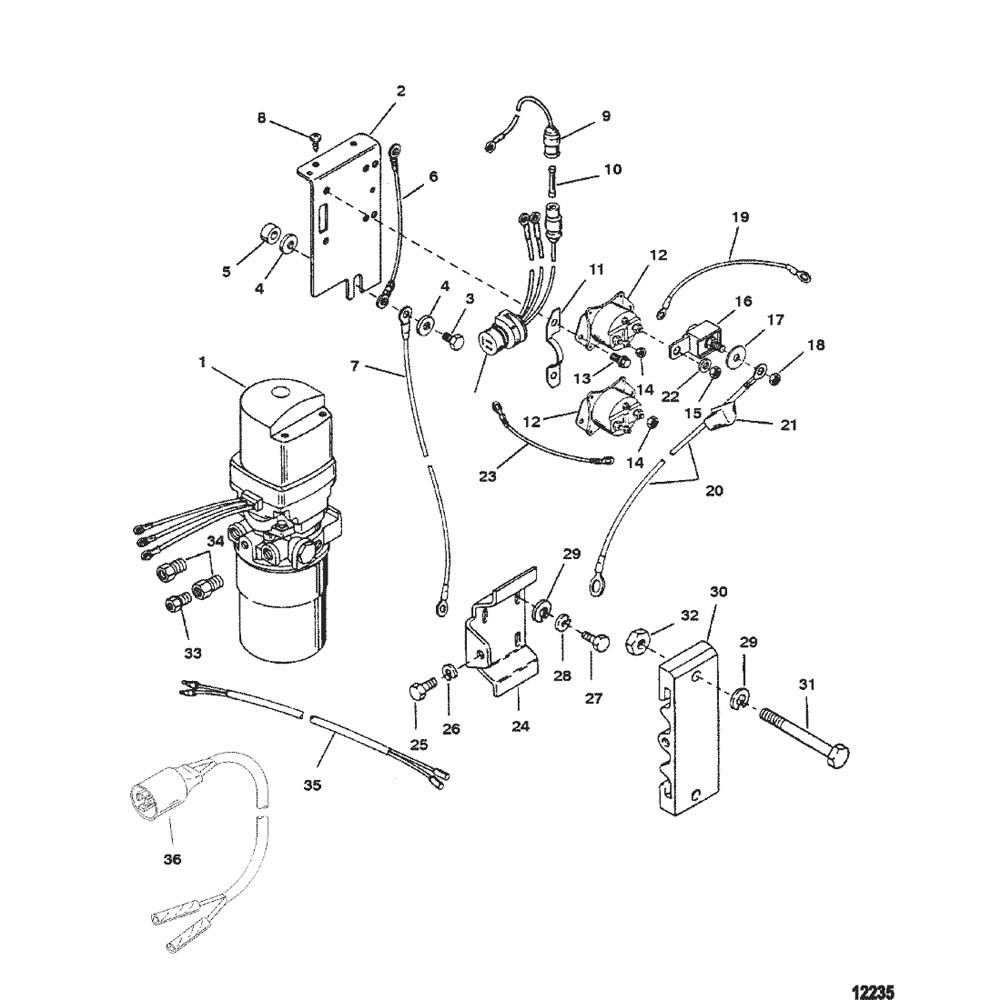

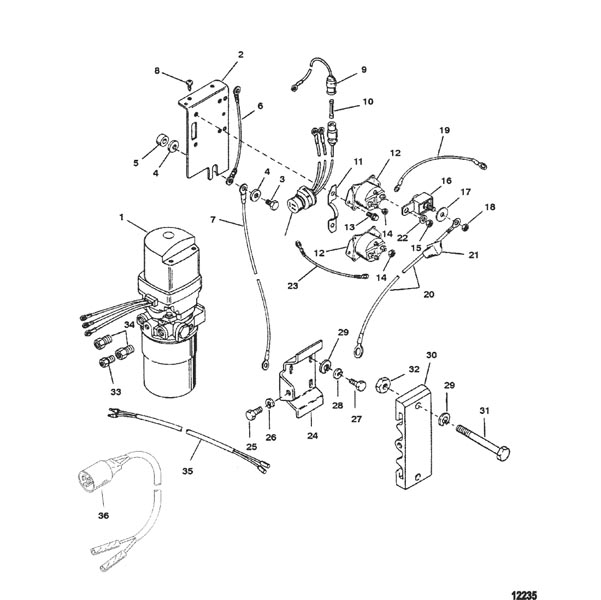

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 846859A4 | PUMP ASSEMBLY, Hydraulic, Complete | 1 | ||||||
| 1 | 8M0051203 | PUMP ASSEMBLY, Hydraulic | 1 | 818161A4 | |||||
| 2 | 818567 | BRACKET | 1 | ||||||
| 3 | 10-38837 | SCREW, (.312-18 x 1.12) | 1 | ||||||
| 4 | 12-57792 | WASHER | 2 | ||||||
| 5 | 23-34948 | SPACER | 1 | ||||||
| 6 | 84-65999A12 | CABLE ASSEMBLY, Ground | 1 | ||||||
| 7 | 84-79138A9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative | 1 | ||||||
| 8 | 10-92051 | SCREW, (10-16 x .75) | 2 | ||||||
| 9 | 84-79147A5 | HARNESS ASSEMBLY | 1 | ||||||
| 10 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 11 | 88075 | RETAINER | 1 | ||||||
| 12 | 89-853654A1 | SOLENOID | 2 | ||||||
| 13 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 4 | ||||||
| 14 | 11-20110 | NUT, (#10-32) | 4 | ||||||
| 15 | 11-26484 | NUT, (.312-18) | 4 | ||||||
| 16 | 88-79023T10 | FUSE ASSEMBLY, 110 Ampere | 1 | 79023A10 | |||||
| 17 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 1 | ||||||
| 18 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 19 | 84-65999A11 | CABLE ASSEMBLY | 1 | ||||||
| 20 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive | 1 | ||||||
| 21 | 46265 | BOOT | 5 | ||||||
| 22 | 12-22753 | WASHER | 4 | ||||||
| 23 | 84-79139A26 | CABLE ASSEMBLY, Red | 1 | ||||||
| 24 | 87760T | MOUNTING PLATE | 1 | ||||||
| 25 | 10-39349 | SCREW, (.312-18 x .750) Stainless Steel | 1 | ||||||
| 26 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
| 27 | 10-90271 | SCREW, (.375-16 x .62) | 2 | ||||||
| 28 | 13-58643 | LOCKWASHER, (.375) | 2 | ||||||
| 29 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 4 | ||||||
| 30 | 87762 | BRACKET | 1 | ||||||
| 31 | 10-63826 | SCREW, (.375-16 x 2.50) | 2 | ||||||
| 32 | 11-82670912 | NUT, (.375-16) Stainless Steel | 2 | ||||||
| 33 | 22-818200 | FITTING | 1 | ||||||
| 34 | 22-77366 | FITTING | 2 | ||||||
| 35 | 84-65017A14 | HARNESS ASSEMBLY | 1 | ||||||
| 36 | 84-848017A2 | HARNESS ASSEMBLY, Trim | 1 |
