225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Top Cowl

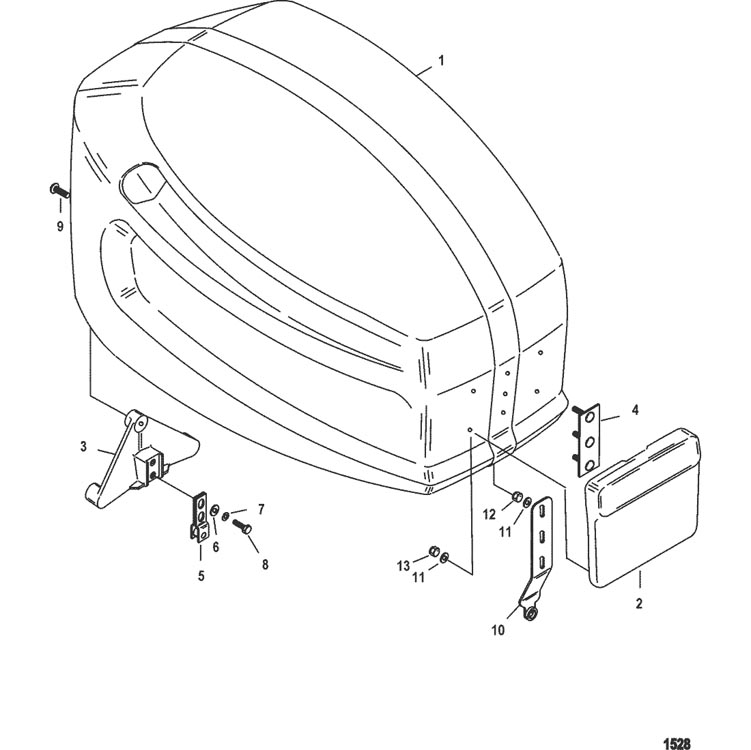

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 104-849203T23 | TOP COWL ASSEMBLY | 1 | ||||||
| 2 | 105-849209A3 | SHIELD | 1 | ||||||
| 3 | 8488081 | BRACKET, Latch | 1 | ||||||
| 4 | 849179 | PLATE | 1 | ||||||
| 5 | 893763 | BRACKET ASSEMBLY, Latch Roller | 1 | 18173 | |||||
| 6 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 7 | 13-53166 | LOCKWASHER, (.312) | 2 | ||||||
| 8 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 9 | 10-849011 | SCREW, (.250-20 x .750) | 1 | ||||||
| 10 | 849834A1 | LATCH | 4 | ||||||
| 11 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 7 | ||||||
| 12 | 11-8267098 | NUT, (.250-20) Stainless Steel | 3 | ||||||
| 13 | 11-814101 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| - | 37-840323A1 | DECAL SET | 1 | ||||||
| - | 37-840323A18 | DECAL SET | 1 |
