225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Swivel Bracket And Steering Arm(Short)

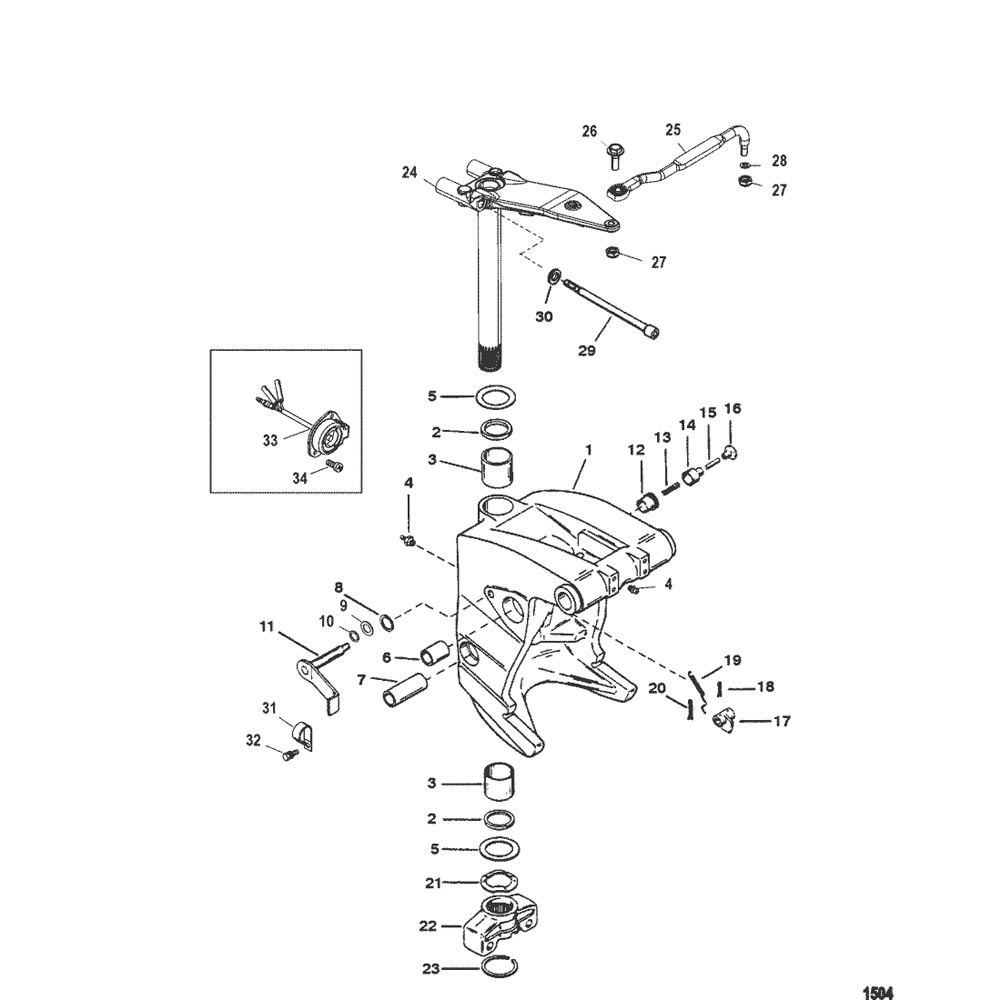

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3521-818810T16 | SWIVEL BRACKET ASSEMBLY | 1 | 818810A14 | |||||
| 1 | 3521-818810T16 | SWIVEL BRACKET ASSEMBLY | 1 | 818810A8 | |||||
| 1 | 1491-847723T09 | SWIVEL BRACKET ASSEMBLY | 1 | 847723A8 | |||||
| 1 | 1491-847723A3 | SWIVEL BRACKET ASSEMBLY | 1 | ||||||
| 2 | 26-847729 | SEAL, Oil | 2 | ||||||
| 3 | 23-847726 | BEARING | 2 | ||||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 23-847728 | BEARING | 2 | ||||||
| 6 | 23-82203522 | BEARING | 1 | ||||||
| 6 | 23-82203516 | BEARING | 1 | ||||||
| 6 | 23-82203524 | BEARING | 2 | ||||||
| 7 | 23-82203540 | BEARING (2-1/2 Inches) | 2 | ||||||
| 8 | 26-85023 | SEAL, Oil | 2 | ||||||
| 9 | 12-87161 | WASHER | 2 | ||||||
| 10 | 25-48171 | O-RING, (.364. x .070) | 2 | ||||||
| 11 | 85030A2 | LEVER ASSEMBLY, Tilt Lock | 1 | ||||||
| 11 | 85028A2 | LEVER ASSEMBLY, Tilt Lock | 1 | No Longer Available | |||||
| 12 | 23-86600 | BUSHING | 1 | ||||||
| 13 | 24-85367 | SPRING | 1 | ||||||
| 14 | 41052 | PLUNGER | 1 | ||||||
| 15 | 16-88876 | STUD | 1 | No Longer Available | |||||
| 16 | 86603 | KNOB | 1 | ||||||
| 17 | 864751 | COUPLING | 1 | ||||||
| 18 | 17-69745 | PIN, Roll | 2 | ||||||
| 19 | 24-88049 | SPRING | 1 | ||||||
| 20 | 18-93861 | COTTER PIN | 1 | ||||||
| 21 | 13-78854 | WAVE WASHER | 1 | ||||||
| 22 | 86580F4 | YOKE, Bottom | 1 | ||||||
| 22 | 814084F1 | YOKE, Bottom | 1 | ||||||
| 23 | 53-848125 | RING, Retaining - Spiral Lock | 2 | ||||||
| 24 | 17-8M0056723 | SWIVEL PIN | 1 | 8407871 | |||||
| 24 | 17-879330T36 | SWIVEL PIN | 1 | 8407931 | |||||
| 25 | 92876A12 | LINK ROD ASSEMBLY | 1 | 92876A10 | |||||
| 26 | 10-849838 | SCREW, (.375-24 x 1.250) | 1 | ||||||
| 27 | 11-826709113 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 28 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 29 | 10-132121 | SCREW | 2 | ||||||
| 30 | 12-816056 | WASHER | 2 | ||||||
| 31 | 54-88512 | CLAMP | 1 | ||||||
| 32 | 10-88829 | SCREW, (#10-24 x .500) | 1 | ||||||
| 33 | 841198A1 | SENSOR ASSEMBLY, Trim | 1 | ||||||
| 34 | 10-852453 | SCREW, (#10-24 x .560) | 2 |
