150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Bleed System

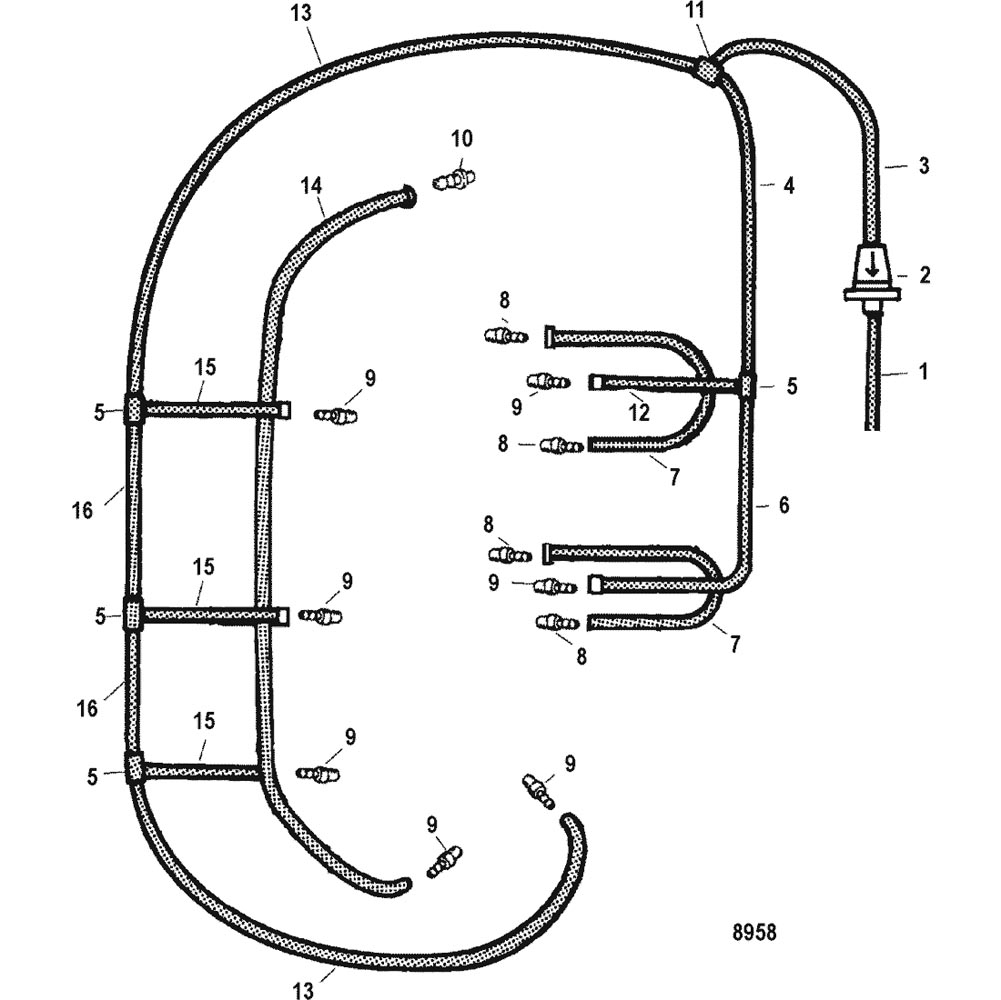

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-9912688 | TUBING, (36.00 Inches Bulk) (Cut to 3-1/4 Inches) | 1 | ||||||
| 2 | 35-8M0042285 | FILTER | 1 | 18206 | |||||
| 3 | 32-9912688 | TUBING, (36.00 Inches Bulk) (Cut to 3-1/4 Inches) | 1 | ||||||
| 4 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 3-1/2 Inches) | 1 | 99130122 | |||||
| 5 | 22-59169003 | FITTING | 4 | 59169 | |||||
| 6 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 Inches) | 1 | 99130122 | |||||
| 7 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 9 Inches) | 2 | 99130122 | |||||
| 8 | 22-56759 | FITTING, Barbed | 4 | ||||||
| 9 | 21-426982 | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 | 426981 | |||||
| 10 | 21-426233 | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 | 42623 | |||||
| 11 | 22-18205 | TEE | 1 | No Longer Available | |||||
| 12 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 1-1/4 Inches) | 1 | 99130122 | |||||
| 13 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 9 Inches) | 2 | 99130122 | |||||
| 14 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 19 Inches) | 1 | 99130122 | |||||
| 15 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 1 Inch) | 3 | 99130122 | |||||
| 16 | 32-892024122 | TUBING, (20.00 Feet Bulk) (Cut to 4-1/2 Inches) | 2 | 99130122 | |||||
| - | 809839T94 | POWERHEAD ASSEMBLY | 1 | 809839A94 | |||||
| - | 808603T94 | POWERHEAD ASSEMBLY | 1 | 808603A94 | No Longer Available |
