150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Swivel Bracket and Steering Arm, Short

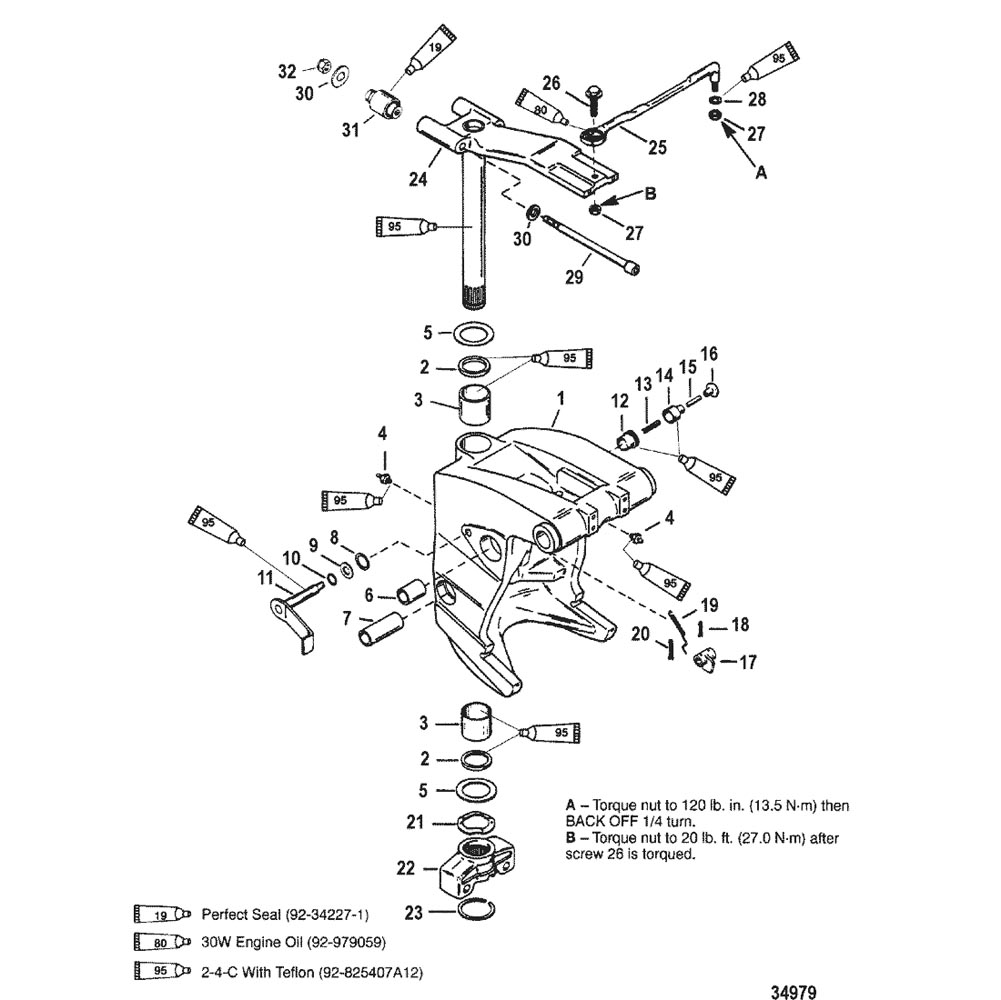

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3521-818810T16         SWIVEL BRACKET ASSEMBLY 1 818810A8
1 3521-818810A7         SWIVEL BRACKET ASSEMBLY 1   No Longer Available
2 26-847729         SEAL, Oil 2
3 23-847726         BEARING 2
4 22-74036         FITTING, Grease 4
5 23-847728         BEARING 2
6 23-82203524         BEARING (1-1/2 IN.) 2
7 23-82203540         BEARING (2-1/2 IN.) 2
8 26-85023         SEAL, Oil 2
9 12-87161         WASHER 2
10 25-48171         O-RING, (.364. x .070) 2
11 85030A2         LEVER ASSEMBLY, Tilt Lock 1
11 85030A3         LEVER ASSEMBLY, Tilt Lock 1   No Longer Available
11 85028A2         LEVER ASSEMBLY, Tilt Lock 1   No Longer Available
11 85028A3         LEVER ASSEMBLY, Tilt Lock 1   No Longer Available
12 23-86600         BUSHING 1
13 24-85367         SPRING 1
14 41052         PLUNGER 1
15 16-88876         STUD 1   No Longer Available
16 86603         KNOB 1
17 864751         COUPLING 1
18 17-69745         PIN, Roll 2
19 24-88049         SPRING 1
20 18-93861         COTTER PIN 1
21 13-78854         WAVE WASHER 1
22 86580F4         YOKE, Bottom 1
22 86580F5         YOKE, Bottom 1   No Longer Available
23 53-848125         RING, Retaining - Spiral Lock 2
24 17-8M0056723         SWIVEL PIN ASSEMBLY, Steering Arm 1 67706A59
24 17-8M0056723         SWIVEL PIN ASSEMBLY, Steering Arm 1 67706A60
25 92876A12         LINK ASSEMBLY, Steering 1 92876A1
26 10-849838         SCREW, (.375-24 x 1.250) 1
27 11-826709113         NUT, (.375-24) 2 34863
28 12-37828         WASHER, (.390 x .625 x .062) Stainless Steel 2
29 10-8495811         SCREW (7-3/4 IN.) 2 849581
30 12-816056         WASHER 4
31 8495862         MOUNT 2 8495861 No Longer Available
32 11-844766         NUT, (.500-13) 2
