150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Bottom Cowl

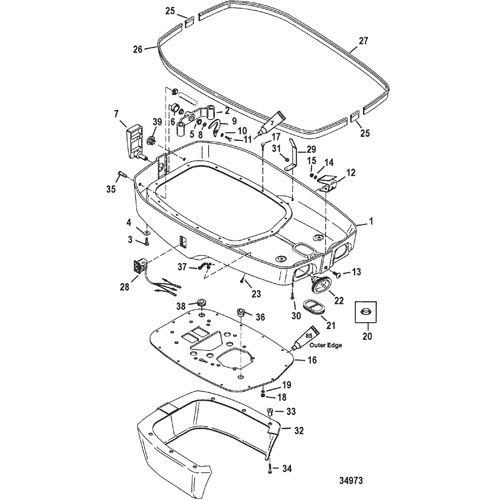

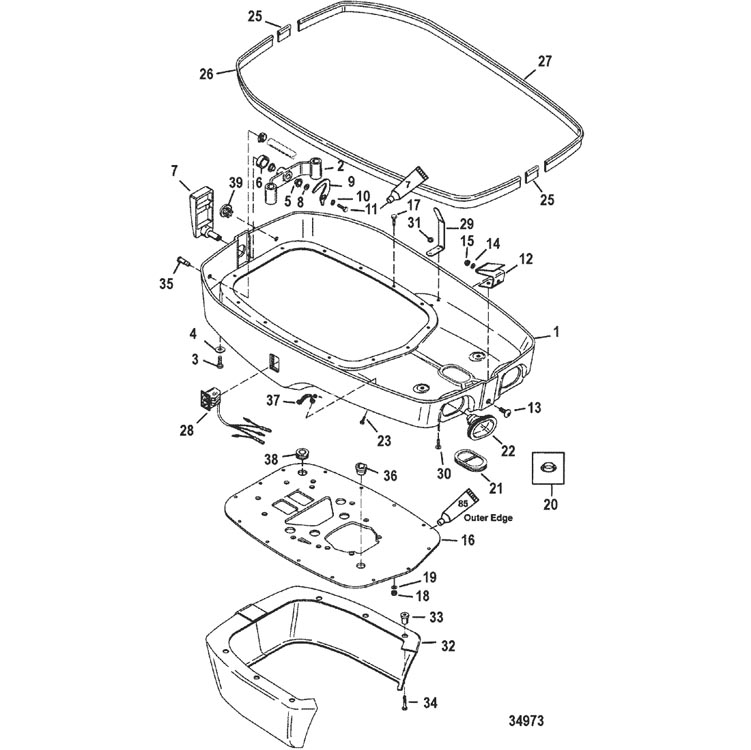

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 107-849477T1 | BOTTOM PAN | 1 | ||||||
| 1 | 107-849477T1 | BOTTOM PAN | 1 | No Longer Available | |||||
| 2 | 848810 | BRACKET, Latch | 1 | ||||||
| 3 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 4 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 5 | 23-812707 | BUSHING | 2 | ||||||
| 6 | 848985 | SEAL | 1 | ||||||
| 7 | 848815T1 | HANDLE | 1 | 848815A1 | |||||
| 7 | 848816A1 | HANDLE | 1 | No Longer Available | |||||
| 8 | 13-F2047 | WASHER, Wave | 1 | ||||||
| 9 | 8M0001081 | CAM, Latch Shaft | 1 | F481777 | |||||
| 10 | 12-4002316 | WASHER | 1 | ||||||
| 11 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 12 | 848812 | LATCH | 1 | ||||||
| 13 | 10-849011 | SCREW, (.250-20 x .750) | 2 | ||||||
| 14 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 15 | 11-8267098 | NUT, (.250-20) | 2 | 56374 | |||||
| 16 | 849480T | PLATE | 1 | 849480 | |||||
| 17 | 10-38601 | SCREW, (.250-28 x 1.250) | 14 | ||||||
| 18 | 11-826709109 | NUT, (.250-28) | 14 | 35045 | |||||
| 19 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 14 | ||||||
| 20 | 19-815784 | CAP | 2 | ||||||
| 21 | 25-849750 | GROMMET | 1 | ||||||
| 22 | 25-8177133 | GROMMET | 2 | ||||||
| 23 | 10-690201 | SCREW, (#10-32 x .875) | 2 | 69020 | |||||
| 24 | 11-826709106 | NUT, (#10-32) | 2 | 29488 | |||||
| 25 | 849767A1 | SEAL | 2 | No Longer Available | |||||
| 26 | 849767A1 | SEAL | 1 | No Longer Available | |||||
| 27 | 849767A1 | SEAL | 1 | 848996 | |||||
| 28 | 87-8M0042301 | SWITCH | 1 | 850691 | |||||
| 29 | 8496191 | BRACE | 2 | 849619 | |||||
| 30 | 10-849011 | SCREW, (.250-20 x .750) | 4 | ||||||
| 31 | 11-8267098 | NUT, (.250-20) | 4 | 56374 | |||||
| 32 | 108-849534A1 | SKIRT | 1 | ||||||
| 32 | 108-849534A2 | SKIRT | 1 | No Longer Available | |||||
| 33 | 11-849000 | NUT | 6 | ||||||
| 34 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 6 | ||||||
| 35 | 22-94848 | FITTING | 1 | ||||||
| 36 | 25-12602002 | GROMMET | 1 | 126021 | |||||
| 37 | 88621 | RETAINER | 1 | No Longer Available | |||||
| 38 | 25-57009001 | GROMMET | 1 | 57009 | |||||
| 39 | 19-32298 | PLUG | 1 |
