Your shopping cart is currently empty.
150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Trim Solenoid Plate

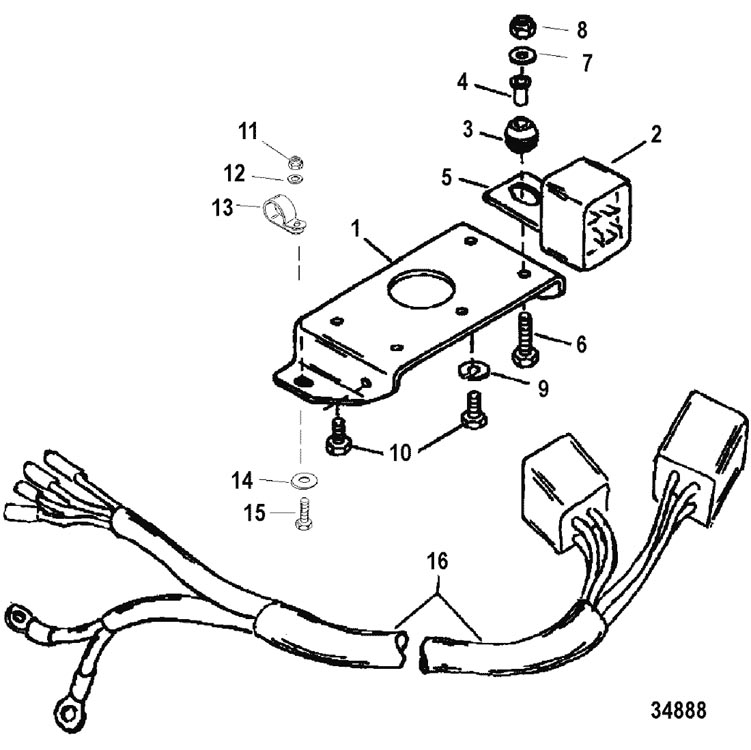

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0053740 | PLATE | 1 | 849761 | |||||
| 2 | 882751A1 | RELAY ASSEMBLY | 2 | 828151A1 | |||||
| 3 | 25-818967 | GROMMET | 2 | ||||||
| 4 | 23-818968 | BUSHING | 2 | ||||||
| 5 | 828102 | BRACKET | 2 | ||||||
| 6 | 10-455611 | SCREW, (.250-20 x 1.12) | 2 | 45561 | |||||
| 7 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel | 2 | ||||||
| 8 | 11-814101 | NUT, (.250-20) Stainless Steel | 2 | ||||||
| 9 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 10 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 2 | ||||||
| 11 | 10-69028 | SCREW, (.250-28 x .750) Stainless Steel | 2 | ||||||
| 12 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 2 | ||||||
| 13 | 54-55098 | J CLIP | 1 | ||||||
| 14 | 12-35280 | WASHER, (.255 x .620 x .030) Stainless Steel | 2 | ||||||
| 15 | 11-826709109 | NUT, (.250-28) | 2 | 35045 | |||||
| 16 | 84-826802A4 | HARNESS ASSEMBLY | 1 |
