150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Crankshaft, Pistons and Connecting Rods

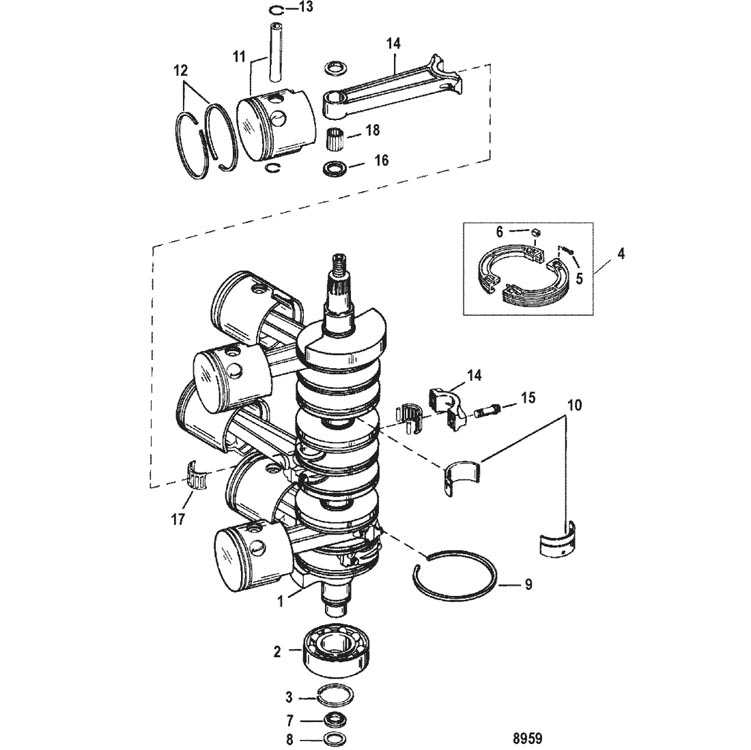

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 455-9536T4 | CRANKSHAFT ASSEMBLY | 1 | 9536A4 | |||||
| 1 | 455-850690T1 | CRANKSHAFT ASSEMBLY | 1 | 850690A1 | No Longer Available | ||||
| 2 | 30-67923T | BEARING, Ball (LOWER) | 1 | 67923 | |||||
| 3 | 53-67446 | RING | 1 | ||||||
| 4 | 43-14513A09 | GEAR SEGMENT KIT, Drive | 1 | 14513A2 | |||||
| 5 | 10-813073 | SCREW, (#6-32 x .620) Socket Head | 2 | ||||||
| 6 | 11-813134 | NUT, (#6-32) Special | 2 | ||||||
| 7 | 54196A6 | CARRIER ASSEMBLY | 1 | ||||||
| 8 | 65800 | PACKING | 1 | ||||||
| 9 | 39-67377T | RING, Sealing | 7 | 67377 | |||||
| 10 | 31-16756A6 | BEARING KIT | 2 | ||||||
| 11 | 785-9738T9 | PISTON ASSEMBLY, Standard | 3 | 9738A9 | |||||
| 11 | 785-9738T10 | PISTON ASSEMBLY, .015 Oversize | AR | 9738A10 | |||||
| 11 | 785-9737T9 | PISTON ASSEMBLY, Standard | 3 | 9737A9 | |||||
| 11 | 785-9737A10 | PISTON ASSEMBLY, .015 Oversize | AR | No Longer Available | |||||
| 12 | 39-822321A12 | RING KIT, Piston - Standard | 1 | ||||||
| 12 | 39-822321A1 | RING KIT, Piston - .015 Oversize | 2 | ||||||
| 13 | 40-857196 | RING, Lock | 12 | 52035 | |||||
| 14 | 644-8M0081411 | CONNECTING ROD ASSEMBLY | 6 | ||||||
| 15 | 10-763491 | SCREW, (.312-24 x .875) | 12 | ||||||
| 16 | 12-8M0012298 | WASHER | 12 | 812876 | |||||
| 17 | 31-8M0082405 | BEARING KIT | 6 | ||||||
| 18 | 29-822553 | BEARING, Needle | 174 | ||||||
| - | 27-823142A94 | GASKET SET | 1 | ||||||
| - | 809839T94 | POWERHEAD ASSEMBLY | 1 | 809839A94 | |||||
| - | 808603T94 | POWERHEAD ASSEMBLY | 1 | 808603A94 | No Longer Available |
