150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Vapor Separator Components

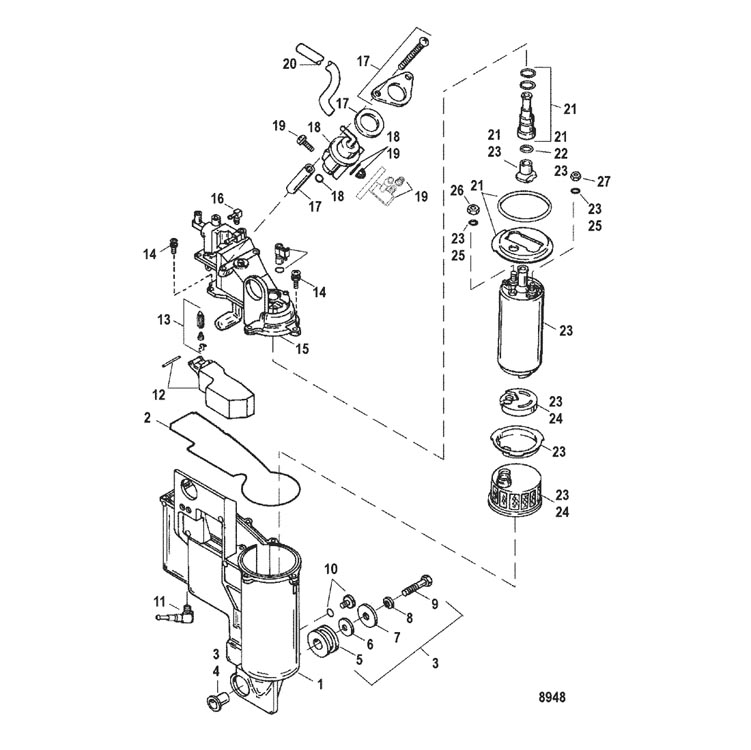

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14817A31 | MANAGEMENT ASSEMBLY, Fuel | 1 | 14817A23 | No Longer Available | ||||
| 1 | 8140111 | BODY KIT | 1 | ||||||
| 2 | 809086 | O-RING | 1 | ||||||
| 3 | 809092A1 | SCREW KIT, Mounting | 1 | No Longer Available | |||||
| 4 | 23-809078 | COLLAR | 1 | No Longer Available |
|||||
| 5 | 25-88033 | GROMMET | 3 | 809079 | No Longer Available | ||||
| 6 | 12-8090622 | WASHER | 3 | No Longer Available | |||||
| 7 | 12-8090621 | WASHER | 3 | ||||||
| 8 | 13-400256 | LOCKWASHER | 3 | 809080 | |||||
| 9 | 10-8090611 | SCREW | 3 | ||||||
| 10 | 10-809091 | SCREW KIT | 1 | ||||||
| 11 | 21-424811 | CHECK VALVE | 1 | 42481 | |||||
| 12 | 15445 | FLOAT KIT | 1 | ||||||
| 13 | 15446 | VALVE KIT, Float | 1 | No Longer Available | |||||
| 14 | 10-8140762 | SCREW KIT | 1 | No Longer Available | |||||
| 15 | 8140102 | COVER KIT | 1 | No Longer Available | |||||
| 16 | 22-8090851 | ELBOW KIT | 1 | ||||||
| 17 | 809087 | ATTACHING KIT | 1 | No Longer Available | |||||
| 18 | 8140122 | REGULATOR KIT, Fuel Pressure | 1 | ||||||
| 19 | 814233A02 | SCHRADER VALVE KIT | 1 | 814233A1 | |||||
| 20 | 32-8276943 | TUBING KIT | 1 | ||||||
| 21 | 809089 | FITTING KIT, Fuel Pump | 1 | No Longer Available | |||||
| 22 | 15029 | O-RING AND SEAL KIT | 1 | No Longer Available | |||||
| 23 | 808505T01 | PUMP KIT, Fuel | 1 | 8090881 | |||||
| 24 | 808504T1 | STRAINER KIT, Fuel | 1 | 8085041 | No Longer Available | ||||
| 25 | 8090901 | CONNECTION KIT | 1 | ||||||
| 26 | 11-8237515 | NUT, (M4) | 1 | ||||||
| 27 | 11-400211 | NUT, (M5) Stainless Steel | 1 | 11-400201 11-853141 |
