150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Gear Housing, Driveshaft - 1.78:1 Ratio

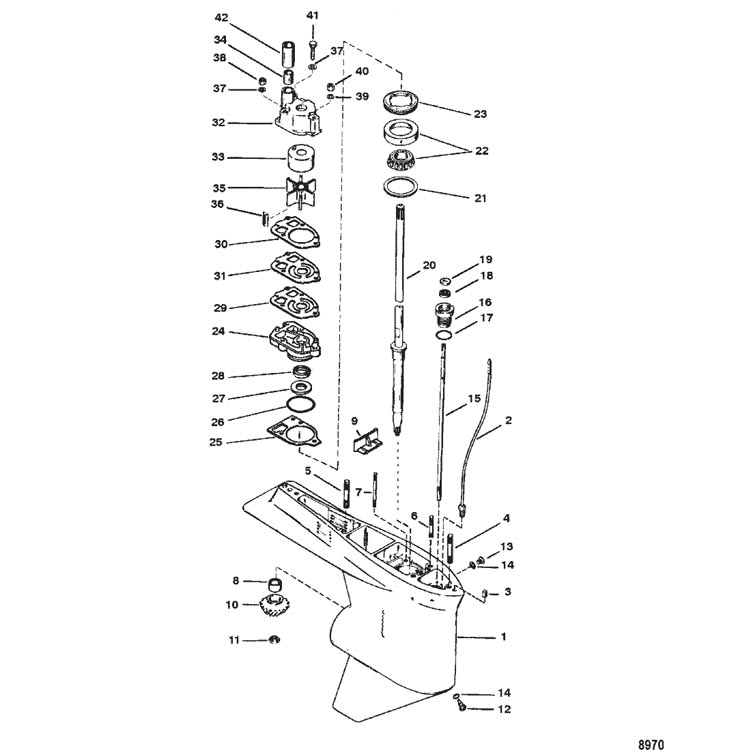

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1674-814247T3 | GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Black | 1 | 814247A3 | No Longer Available | ||||
| - | 1674-814247T3 | GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Gray | 1 | 814247A4 | No Longer Available | ||||
| 1 | 1674-814247T1 | GEAR HOUSING ASSEMBLY, Basic - Black | 1 | 814247A1 | No Longer Available | ||||
| 1 | 1674-814247T1 | GEAR HOUSING ASSEMBLY, Basic - Gray | 1 | 814247A2 | No Longer Available | ||||
| 2 | 22-85822A10 | CONNECTOR ASSEMBLY | 1 | ||||||
| 3 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 4 | 16-786382 | STUD, (.438 x 3.12) (3-1/8 IN.) | 1 | 78638 | |||||
| 5 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | 579201 | |||||
| 6 | 16-8M0034463 | STUD, (.312 x 3.38) | 1 | 56297 | |||||
| 7 | 16-30667 | STUD, (.250-20/.250-28 x 3.125) | 2 | ||||||
| 8 | 31-35934A1 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 9 | 8M0039169 | FILLER BLOCK | 1 | 67891 | |||||
| 10 | NSS | Pinion Gear (Part of 43-16279A2) | 1 | Not Sold Separate | |||||
| 11 | 11-35921 | NUT, (.625-18) | 1 | ||||||
| 12 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 67892A1 | |||||
| 13 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) | 1 | 79953A2 | |||||
| 14 | 12-191833 | WASHER, Fiber | 2 | 19183 | |||||
| 15 | 8152641 | SHIFT SHAFT | 1 | ||||||
| 16 | 23-77631A2 | BUSHING ASSEMBLY | 1 | ||||||
| 17 | 25-25439 | O-RING, (.862 x .103) | 1 | ||||||
| 18 | 26-8164641 | SEAL, Oil | 1 | ||||||
| 19 | 12-77674 | WASHER | 1 | ||||||
| 20 | 45-815168 | DRIVESHAFT | 1 | ||||||
| 21 | 15-8M0063267 | SHIM SET | AR | No Longer Available | |||||
| 22 | 31-36387A1 | BEARING ASSEMBLY, Roller/Cup | 1 | ||||||
| 23 | 8245191 | RETAINER | 1 | 824519 | |||||
| 24 | 46-8M0077147 | BASE ASSEMBLY, Water Pump | 1 | 42579A3 | |||||
| 25 | 27-426311 | GASKET | 1 | ||||||
| 26 | 25-896523 | O-RING, (2.175 x .175) | 1 | 90011 | |||||
| 27 | 26-89238 | SEAL, Oil | 1 | ||||||
| 28 | 26-16977 | SEAL, Oil | 1 | ||||||
| 29 | 27-8M0090319 | GASKET | 1 | 856081 | |||||
| 30 | 27-858524 | GASKET | 1 | 856091 | |||||
| 31 | 324351 | FACE PLATE | 1 | 32435 | |||||
| 32 | 46-96148T1 | BODY ASSEMBLY, Water Pump | 1 | 96148A1 | |||||
| 33 | 48752T | INSERT | 1 | 48752 | |||||
| 34 | 26-38970 | SEAL | 1 | ||||||
| 35 | 47-89984T3 | IMPELLER | 1 | 899841 | |||||
| 36 | 28-8M0032834 | KEY | 1 | 56654 | |||||
| 37 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 38 | 11-8267119 | NUT, (.250-28) | 2 | 13438 | |||||
| 39 | 12-36001 | WASHER | 1 | ||||||
| 40 | 11-13436 | NUT | 1 | ||||||
| 41 | 10-96411 | SCREW, (#14-8 x 2.25) | 1 | ||||||
| 42 | 23-29804T | SLEEVE | 1 | 29804 | |||||
| - | 46-96148A8 | REPAIR KIT, Water Pump | 1 | 96148A5 | |||||
| - | 26-89238A2 | SEAL KIT | 1 |
