150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Gear Housing, Propeller Shaft - 1.78:1 Ratio

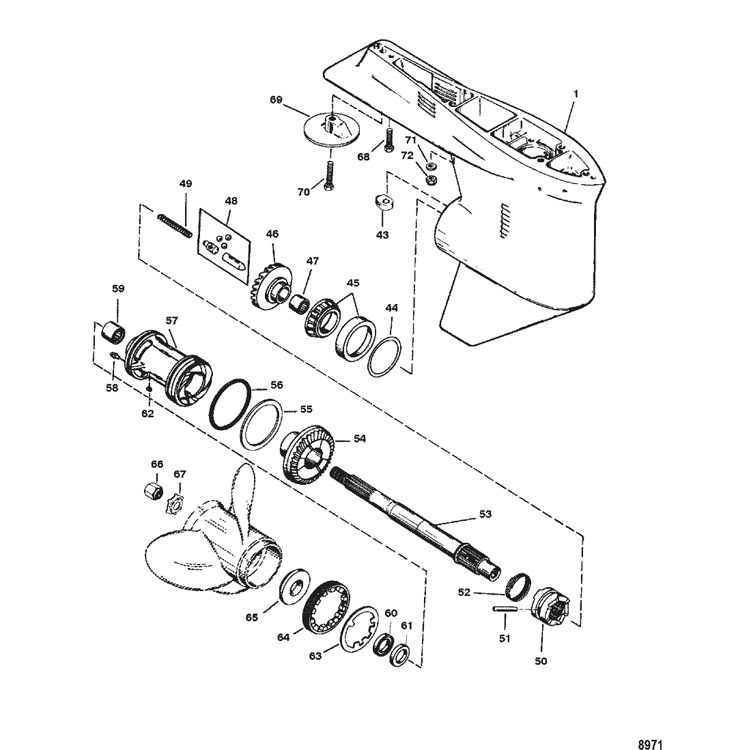

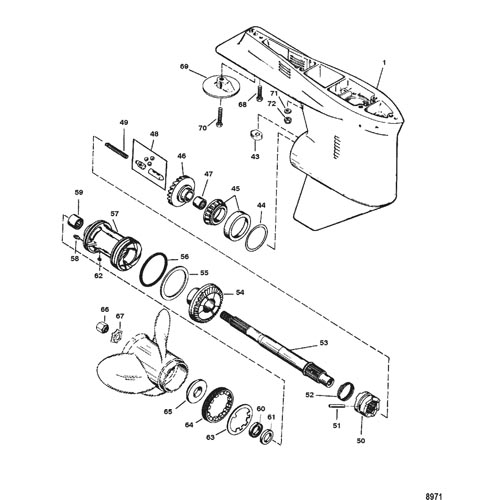

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1674-814247T3 | GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Black | 1 | 814247A3 | No Longer Available | ||||
| - | 1674-814247T3 | GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Gray | 1 | 814247A4 | No Longer Available | ||||
| 1 | 1674-814247T1 | GEAR HOUSING ASSEMBLY, Basic - Black | 1 | 814247A1 | No Longer Available | ||||
| 1 | 1674-814247T1 | GEAR HOUSING ASSEMBLY, Basic - Gray | 1 | 814247A2 | No Longer Available | ||||
| 43 | 760394 | CAM, Shift Control | 1 | 76039 | |||||
| 44 | 15-8M0063266 | SHIM SET | AR | No Longer Available | |||||
| 45 | 31-30894A1 | BEARING SET, Cup And Cone | 1 | ||||||
| 46 | 43-16279A2 | GEAR ASSEMBLY, Forward | 1 | ||||||
| 47 | 31-30895T | BEARING, Needle | 1 | 30895 | |||||
| 48 | 850315A1 | FOLLOWER KIT, Cam | 1 | 12239A1 | |||||
| 49 | 24-30622 | SPRING | 1 | ||||||
| 50 | 52-822539T | CLUTCH | 1 | 822539 | |||||
| 51 | 17-8M0100263 | PIN, Cross | 1 | 30632 | |||||
| 52 | 24-30893 | SPRING | 1 | ||||||
| 53 | 44-12238T | PROPELLER SHAFT | 1 | ||||||
| 54 | NSS | Reverse Gear (Part of 43-16279A2) | 1 | Not Sold Separate | |||||
| 55 | 12-76358 | THRUST WASHER | 1 | No Longer Available | |||||
| 56 | 25-29976 | O-RING | 1 | ||||||
| 57 | 41529T2 | CARRIER ASSEMBLY, Bearing | 1 | 41529A2 | No Longer Available | ||||
| 58 | 22-98727 | FITTING, Grease | 2 | ||||||
| 59 | 31-30956T | BEARING, Needle | 1 | 30956 | |||||
| 60 | 26-76868 | SEAL (OUTSIDE) | 1 | ||||||
| 61 | 26-14077 | SEAL, Oil (INSIDE) | 1 | ||||||
| 62 | 28-30281 | KEY | 1 | ||||||
| 63 | 14-52700 | TAB WASHER | 1 | ||||||
| 64 | 52699 | COVER | 1 | No Longer Available | |||||
| 65 | 13191Q01 | THRUST WASHER | 1 | 13191A1 | |||||
| 66 | 11-52707Q1 | PROP NUT KIT, (.750-16) | 1 | 52707A1 | |||||
| 67 | 14-816629Q | TAB WASHER | 1 | 816629 | |||||
| 68 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel | 1 | ||||||
| 69 | 76214Q5 | ANODE KIT | 1 | 76214A5 | |||||
| 70 | 10-66024 | SCREW, (.437-14 x 1.75) | 1 | ||||||
| 71 | 12-822836 | WASHER, (.445 x .805 x .108) | 2 | ||||||
| 72 | 11-859116 | NUT, (.4375-20) | 2 | 134391 | |||||
| - | 26-89238A2 | SEAL KIT | 1 |
