150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Gear Housing, Driveshaft-TorqueMaster

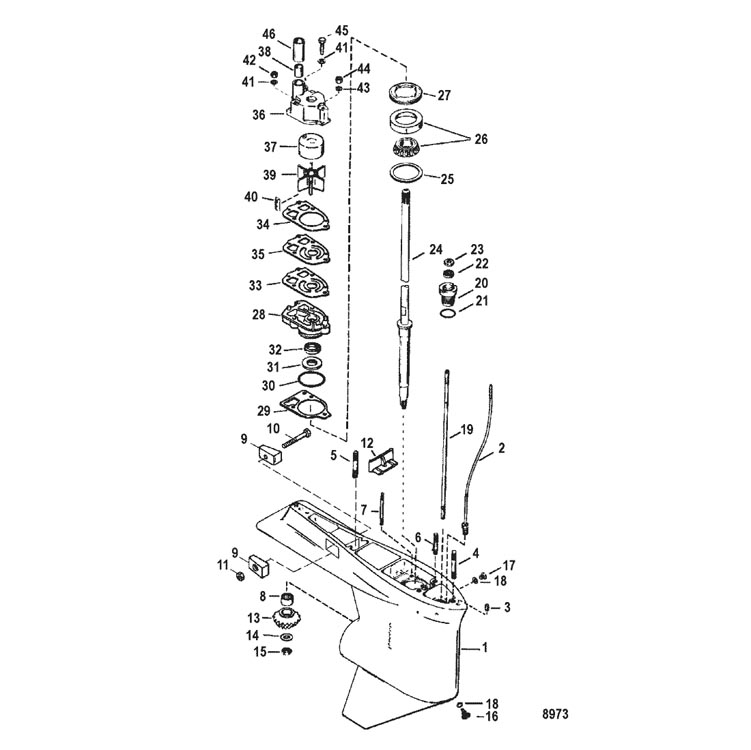

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1686-827214T24         Gear Housing Assembly 1 827214A5 No Longer Available
- 1686-827214T24



Gear Housing Assembly 1 827214A6 No Longer Available
- 1686-827214T23



Gear Housing Assembly 1 827214A3 No Longer Available
- 1686-827214T23



Gear Housing Assembly 1 827214A4 No Longer Available
- 1686-827214T24



Gear Housing Assembly 1 827214A11 No Longer Available
- 1686-827214T23



Gear Housing Assembly 1 827214A10 No Longer Available
1 1686-827214T25



Gear Housing Assembly 1 827214A7
1 1686-827214T25



Gear Housing Assembly 1 827214A8
1 1686-827214T25



Gear Housing Assembly 1 827214A12
2 22-85822A10



CONNECTOR ASSEMBLY 1
3 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2
4 16-786382



STUD, (.438 x 3.12) (3-1/8 IN.) 1 78638
5 16-579203



STUD, (.437-14/.437-20 x 2.060) 2 579201
6 16-8M0034463



STUD, (.312 x 3.38) 1 56297
7 16-69501



STUD 2
8 31-42647A1



BEARING ASSEMBLY, Roller 1
9 826134Q



ANODE 2 826134
10 10-4000333



SCREW, (M6 x 40) 1
11 11-401386



NUT, (M6) 1 8268336
12 8M0039169



FILLER BLOCK 1 67891
13 NSS



Pinion Gear (Part of 43-44102A5 or 43-13742A2) 1   Not Sold Separate
14 12-92721



WASHER 1
15 11-35921



NUT, (.625-18) 1
16 22-8M0058389



FITTING KIT, Magnetic, Plug Fill/Drain 1 67892A1
17 10-79953Q04



SCREW KIT, (.375-16 x .250) 1 79953A2
18 12-191833



WASHER, Fiber 2 19183
19 789022



SHIFT SHAFT 1
20 23-77631A2



BUSHING ASSEMBLY 1
21 25-25439



O-RING, (.862 x .103) 1
22 26-8164641



SEAL, Oil 1
23 12-77674



WASHER 1
24 45-848449A5



DRIVESHAFT ASSEMBLY 1
25 15-8M0063267



SHIM SET AR   No Longer Available
26 31-36387A1



BEARING ASSEMBLY, Roller/Cup 1
27 8245191



RETAINER 1 824519
28 46-44292A3



BASE ASSEMBLY, Water Pump 1
29 27-426311



GASKET 1
30 25-896523



O-RING, (2.175 x .175) 1 90011
31 26-89238



SEAL, Oil 1
32 26-16977



SEAL, Oil 1
33 27-18051



GASKET 1
34 27-858524



GASKET 1 856091
35 324351



FACE PLATE 1 32435
36 46-96148T1



BODY ASSEMBLY, Water Pump 1 96148A1
37 48752T



INSERT 1 48752
38 26-38970



SEAL 1
39 47-89984T4



IMPELLER 1 899842
40 28-8M0032834



KEY 1 56654
41 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 2
42 11-8267119



NUT, (.250-28) 2 13438
43 12-36001



WASHER 1
44 11-13436



NUT 1
45 10-96411



SCREW, (#14-8 x 2.25) 1
46 23-29804T



SLEEVE 1 29804
- 46-96148A8



REPAIR KIT, Water Pump 1 96148A5
- 26-89238A3



SEAL KIT, Gear Housing 1
