150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - Throttle Lever and Shift Shaft

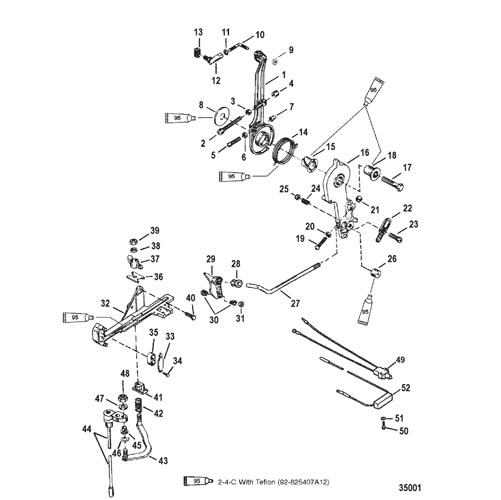

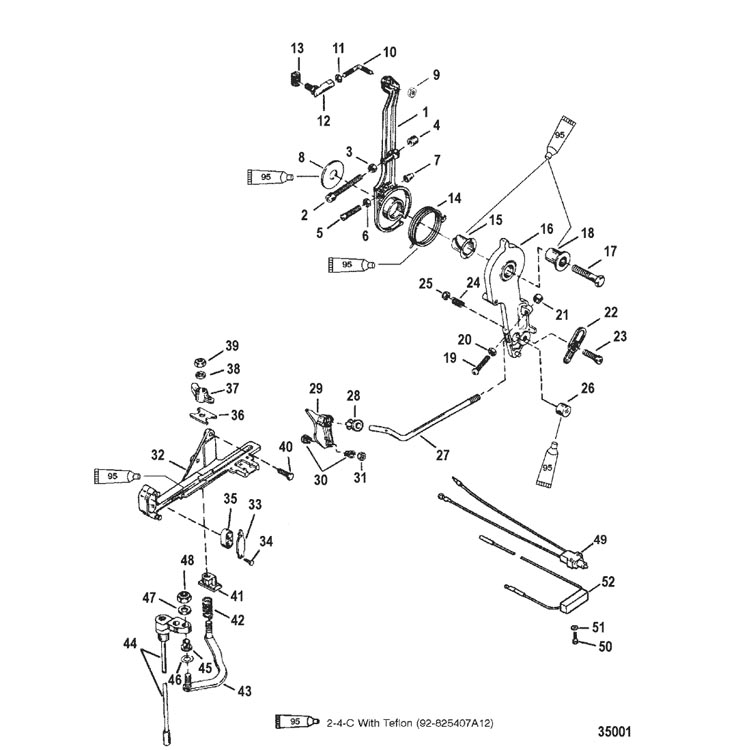

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 41094A3         LEVER ASSEMBLY 1
2 10-64022         SCREW, (.250-20 x 2.125) 1
3 11-64015         NUT, (.250-20) 1
4 26852         CAP, Nylon 1
5 10-13627         SCREW, (.190-32 x 1.250) 1
6 11-68219         NUT, (#10-32) Stainless Steel 1
7 48039         CAP 1
8 12-46765         WASHER, (.390 x 1.50 x .120) 1
9 11-46438         NUT, (#10-32) 1
10 76035         ROD 1
11 11-45076         NUT, (#10-32) Brass 1
12 62459T         BALL JOINT ASSEMBLY 1 62459
13 74897T         PIVOT 1 74897
14 24-823235         SPRING 1
15 23-55171         BUSHING 1
16 410952         LEVER 1 41095
17 10-818165         SCREW, (.375-16 x 1.75) 1
18 23-55164         BUSHING 1
19 10-64022         SCREW, (.250-20 x 2.125) 1
20 11-64015         NUT, (.250-20) 1
21 26852         CAP, Nylon 1
22 39483         LATCH 1
23 10-69026         SCREW, (.250-28 x .880) 1
24 24-20099         SPRING 1
25 11-826709109         NUT, (.250-28) 1 35045
26 14638         BARREL 1
27 14634         ROD 1
28 23-932481         BUSHING 1
29 8142392         CAM 1 8142391
30 23-26856         BUSHING 2
31 11-826709109         NUT, (.250-28) 1 35045
32 814283A2         BRACKET ASSEMBLY 1
33 98889         LATCH 1
34 10-42975         DRIVE SCREW 2
35 39519         CUP 1
36 52100         WEAR PLATE 1
37 8M0036768         LATCH 1 38279
38 12-69056         WASHER, (.255 x .620 x .030) Stainless Steel 1
39 11-826709109         NUT, (.250-28) 1 35045
40 10-53167T         SCREW, (.312-18 x .880) 3 53167
41 814284         GUIDE BLOCK 1
42 24-20099         SPRING 1
43 67073A1         LINK ROD ASSEMBLY 1
44 79932A18         SHIFT SHAFT ASSEMBLY 1
44 79932A16         SHIFT SHAFT ASSEMBLY 1
44 79932A17         SHIFT SHAFT ASSEMBLY 1
45 23-26856         BUSHING 1
46 13-29720         WAVE WASHER 1
47 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 1
48 11-826709109         NUT, (.250-28) 1 35045
49 87-814281A1         IDLE STABILIZING SHIFT KIT 1   No Longer Available
50 10-77478         SCREW, (#6-32 x .875) 2
51 12-27882         WASHER 2
52 17461A3         RESISTOR MODULE 1
