150 and 200 EFI Pro Max and Super Mag - Serial 0G610050 Thru 0G856999 - ECU Assembly

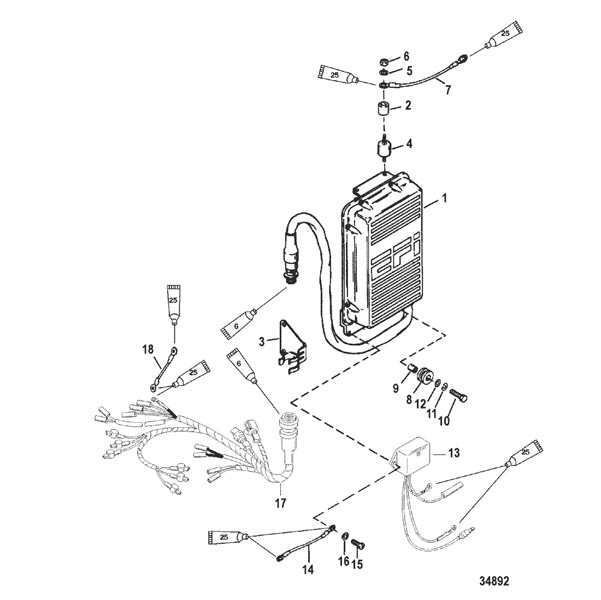

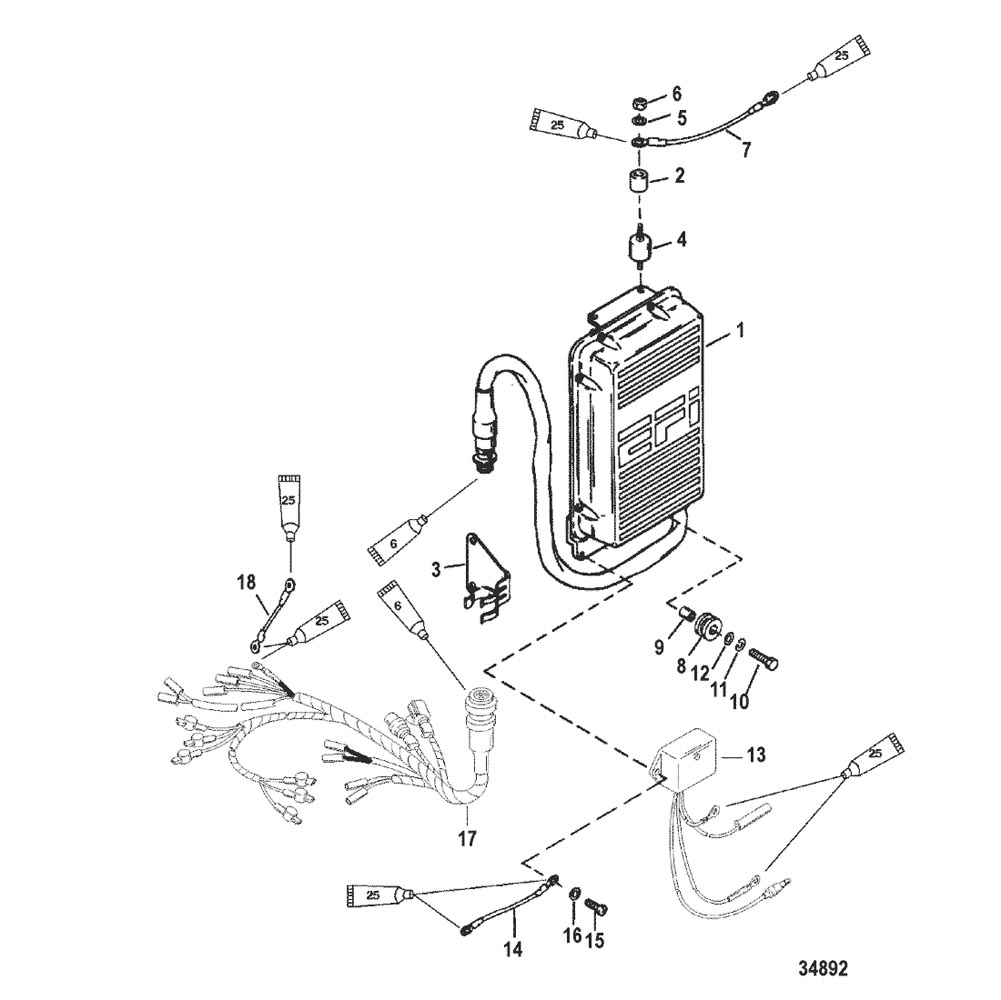

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump/Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft - 1.78:1 Ratio
- Gear Housing, Driveshaft-Counter-SportMaster
- Gear Housing, Driveshaft-Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft - 1.78:1 Ratio
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 824003A13 | ECU, Engine Control Unit | 1 | No Longer Available | |||||
| 1 | 824003T11 | ECU, Engine Control Unit | 1 | 824003A11 | |||||
| 2 | 23-34948 | SPACER | 2 | ||||||
| 3 | 54-146951 | CLIP | 1 | ||||||
| 4 | 90435 | MOUNT | 2 | ||||||
| 5 | 12-21249 | WASHER | 4 | ||||||
| 6 | 11-8267089 | NUT, (.250-28) | 4 | 20361 | |||||
| 7 | 84-88807A19 | CABLE ASSEMBLY | 1 | ||||||
| 8 | 14637 | GROMMET | 1 | ||||||
| 9 | 23-14636 | BUSHING | 1 | ||||||
| 10 | 10-28667 | SCREW, (.250-20 x 1.00) Stainless Steel | 1 | ||||||
| 11 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 12 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 1 | ||||||
| 13 | 13202A4 | MODULE ASSEMBLY, Water Sensor | 1 | ||||||
| 14 | 84-88807A18 | CABLE ASSEMBLY (BLACK) | 1 | ||||||
| 15 | 10-37571 | SCREW, (.190-32 x .500) | 2 | ||||||
| 16 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 17 | 84-98866A25 | HARNESS ASSEMBLY, ECU And Injectors | 1 | ||||||
| 18 | 84-87895A4 | CABLE ASSEMBLY | 1 |
