NXT1 SSM - All Serials - Cable Actuator Components, Design-II

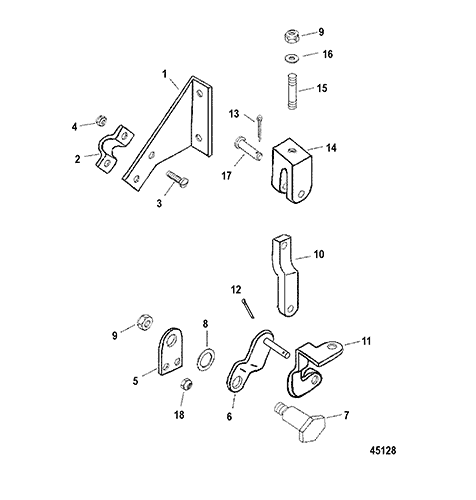

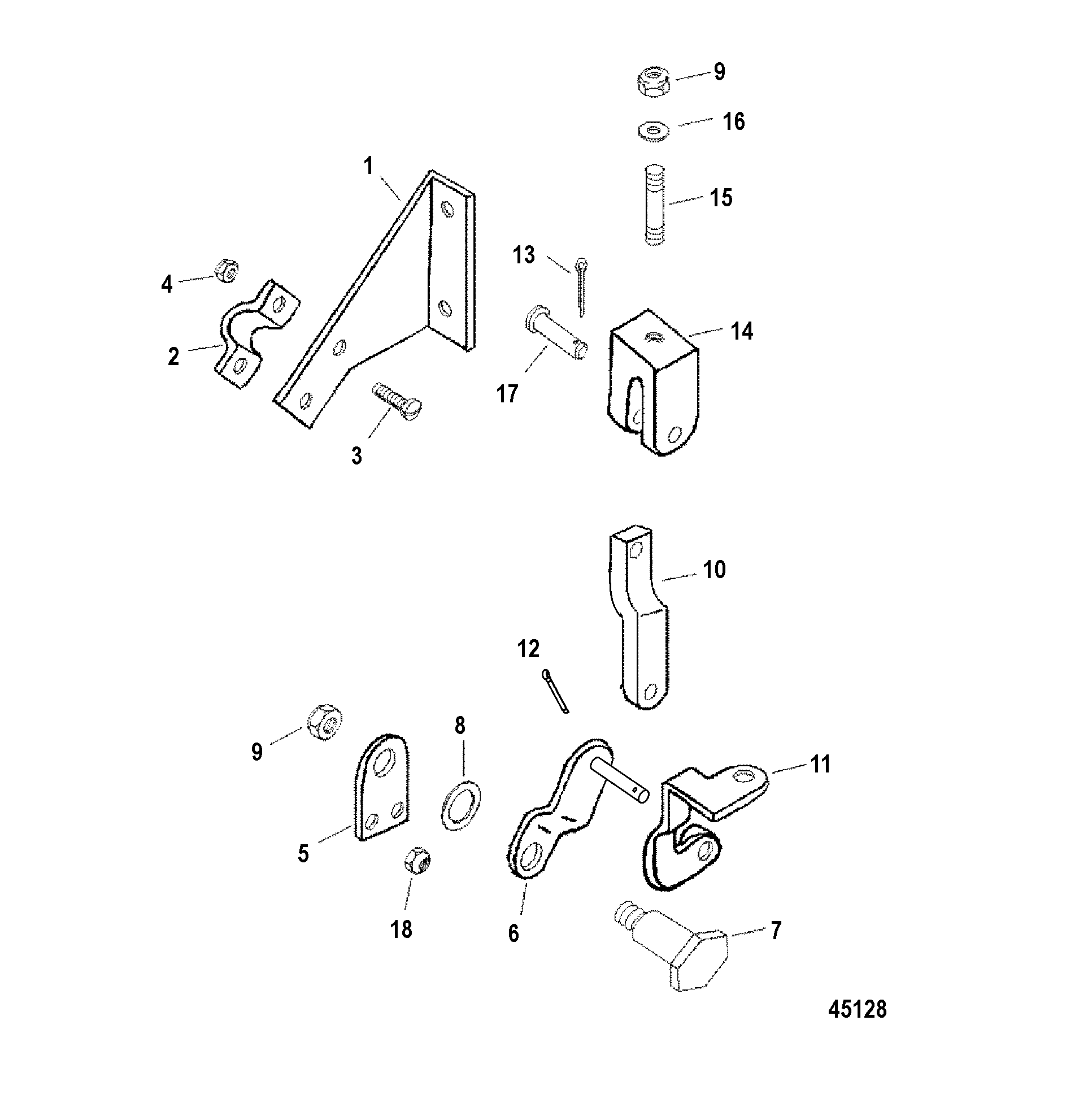

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M8026038 | BRACKET ASSEMBLY, Cable | 1 | 846739A1 | |||||
| 2 | 54-846341 | BRACKET, Cable | 1 | ||||||
| 3 | 10-69022 | SCREW, (#10-32 x .500) | 2 | 10-846702 | |||||
| 4 | 11-34059 | NUT, (#10-32) | 2 | ||||||
| 5 | 846336 | BRACKET, Pivot Arm | 1 | ||||||
| 6 | 8M0047724 | ARM, Pivot | 1 | ||||||
| 7 | 10-846332 | SCREW, (.250-28 x .840) | 1 | ||||||
| 8 | 13-846710 | WAVE WASHER | 1 | ||||||
| 9 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 10 | 8M0047722 | ARM, Connecting | 1 | ||||||
| 11 | 8M0047723 | PIVOT, Cable End | 1 | ||||||
| 12 | 17-8251851 | PIN | 1 | ||||||
| 13 | 18-210711 | COTTER PIN | 2 | 18-21071 | |||||
| 14 | 846605 | CLEVIS ASSEMBLY | 1 | ||||||
| 15 | 16-846346 | STUD, (.250-28 x 1.00) | 1 | ||||||
| 16 | 12-35044 | WASHER, (.281 x .625 x .065) Stainless Steel | 1 | ||||||
| 17 | 17-8251851 | PIN, Clevis (.750 Inches) | 1 | 17-846343 | |||||
| 18 | 11-34059 | NUT, (#10-32) | 2 |
