NXT1 SSM - All Serials - Steering Cylinder Assembly

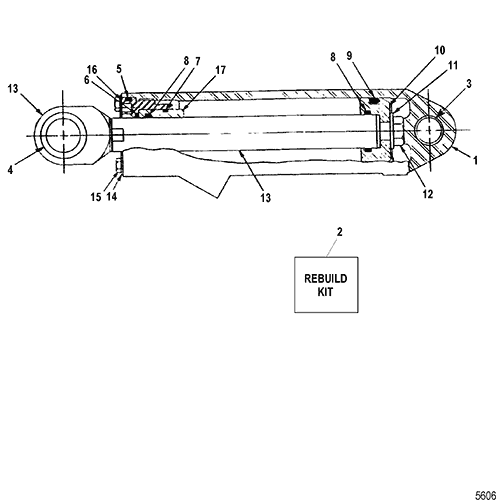

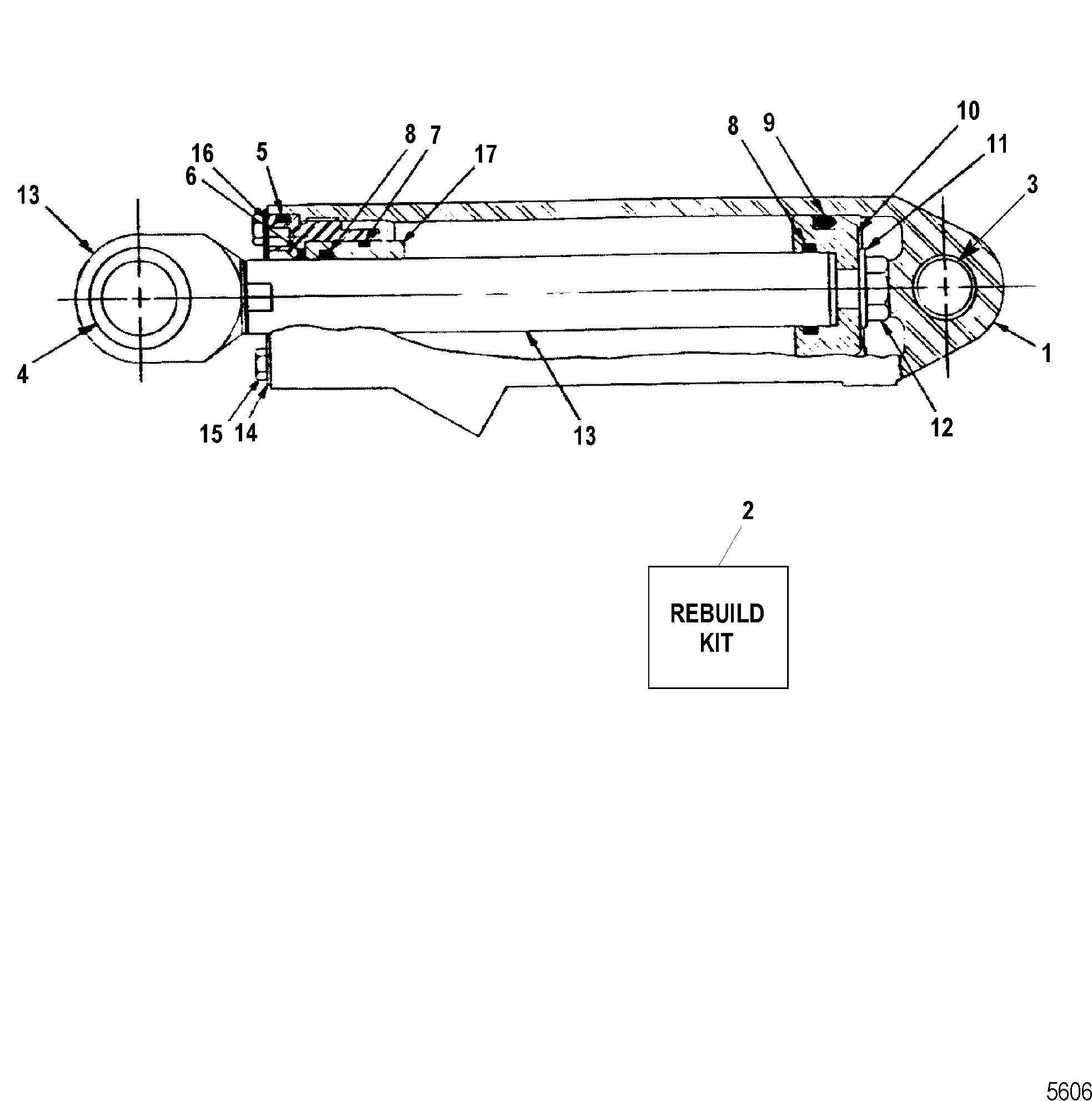

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0050240 | CYLINDER ASSEMBLY, Steering | 1 | 846472A3 | Starboard | ||||
| 1 | 8M0050242 | CYLINDER ASSEMBLY, Steering | 1 | 846473A3 | Port | ||||
| 2 | 846472A4 | REBUILD KIT, Steering Cylinder | 1 | ||||||
| 3 | 23-846371 | BEARING | 2 | ||||||
| 4 | 23-846856 | BEARING | 1 | ||||||
| 5 | 25-33145 | 676-9-76547 | 700-82260 | O-RING, (1.984 x .139) | 1 | ||||
| 6 | 843311 | SCRAPER | 1 | ||||||
| 7 | 25-65936 | 676-9-76537 | O-RING | 1 | |||||
| 8 | 25-23145 | O-RING, (.984 x .139) | 2 | ||||||
| 9 | 25-846364 | O-RING, (1.600 x .190) | 1 | ||||||
| 10 | 846443 | PISTON, Standard | 1 | ||||||
| 11 | 12-846941 | WASHER, (.530 x 1.06 x .095) | 1 | ||||||
| 12 | 10-840115 | SCREW, (.500-20 x 1.00) | 1 | ||||||
| 13 | NSS | NOT SOLD SEPARATE, Piston Rod | 1 | This Part is not sold separately NOTE: Order Complete Cylinder Assembly |
|||||
| 14 | 846939 | PLATE, Retaining | 1 | ||||||
| 15 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 4 | ||||||
| 16 | 846442 | CAP, End | 1 | ||||||
| 17 | 846441 | BUSHING, Guide | 1 |
