NXT1 SSM - All Serials - U Joint Housing Assembly (SSM Six - Early Style)

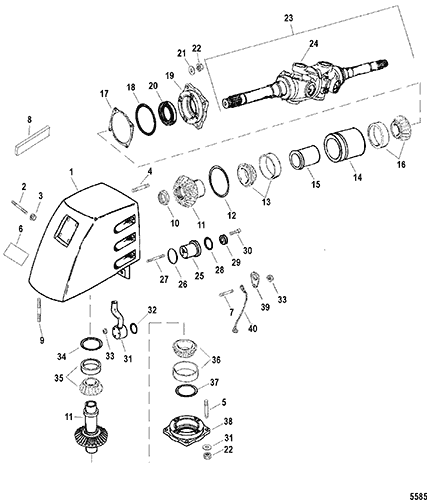

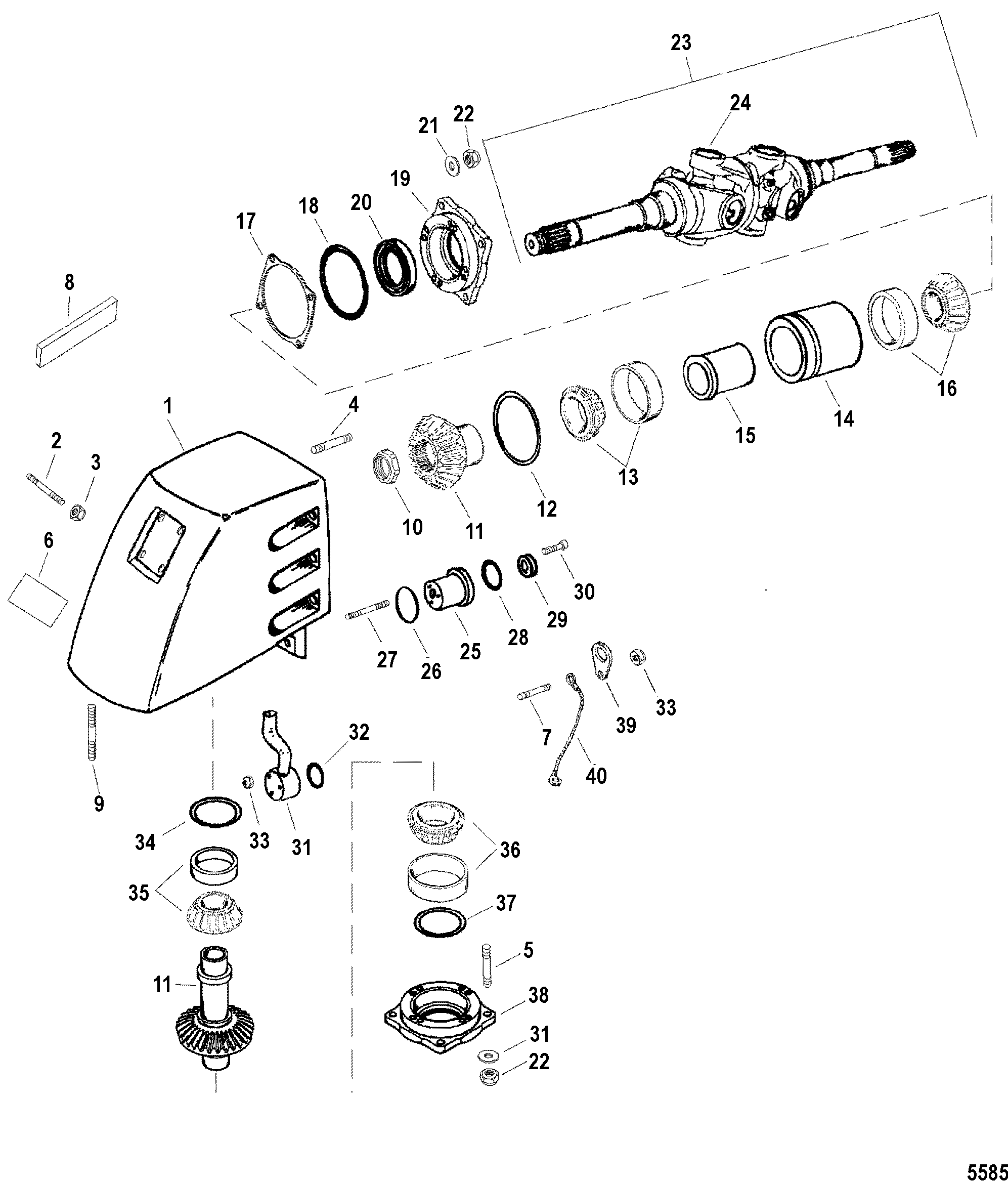

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3522-846303A1 | HOUSING ASSEMBLY, Driveshaft | 1 | This Part is No Longer Available | |||||
| 2 | 16-846630 | STUD, (.500-20 x 3.00) | AR | This Part is No Longer Available Early Models | |||||
| 2 | 16-847171 | STUD, (.500-20/.625-18 x 3.10) | 4 | Late Models | |||||
| 3 | 11-826709117 | NUT, (.500-20) | AR | 11-35778 | Early Models | ||||
| 3 | 11-844849 | NUT, (.625-18) | 4 | Late Models | |||||
| 4 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 4 | ||||||
| 5 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 4 | 16-579201 | |||||
| 6 | 37-846655 | DECAL, (Warning) | 1 | This Part is No Longer Available | |||||
| 7 | 16-846345 | STUD, (#10-32 x .750) | 1 | ||||||
| 8 | 847333 | EMBLEM, MerCruiser | 2 | ||||||
| 9 | 16-846385 | STUD, (.562-12/.562-18 x 3.810) | 8 | ||||||
| 10 | 11-846392 | NUT, (1.25-16 RH) | 1 | ||||||
| 11 | 43-846598T2 | GEAR SET | AR | This Part is No Longer Available (1.02:1) | |||||
| 11 | 43-846583A2 | GEAR SET | AR | This Part is No Longer Available (1.24:1) | |||||
| 11 | 43-849175A2 | GEAR SET | AR | This Part is No Longer Available (1.35:1) | |||||
| 11 | 43-848787A2 | GEAR SET | AR | 43-846321A2 | This Part is No Longer Available (1.50:1) | ||||
| 11 | 43-849840A2 | GEAR SET | AR | (1.62:1) | |||||
| 12 | 15-846353A1 | SHIM SET | 1 | ||||||
| 13 | 31-846490T1 | BEARING SET, Cup And Cone | 1 | ||||||
| 14 | 23-846436 | SPACER, Cup | 1 | This Part is No Longer Available | |||||
| 15 | 23-846504782 | SPACER, Cone | AR | This Part is No Longer Available (3.782) | |||||
| 15 | 23-846504783 | SPACER, Cone | AR | This Part is No Longer Available (3.783) | |||||
| 15 | 23-846504784 | SPACER, Cone | AR | This Part is No Longer Available (3.784) | |||||
| 15 | 23-846504785 | SPACER, Cone | AR | This Part is No Longer Available (3.785) | |||||
| 15 | 23-846504786 | SPACER, Cone | AR | This Part is No Longer Available (3.786) | |||||
| 15 | 23-846504787 | SPACER, Cone | AR | This Part is No Longer Available (3.787) | |||||
| 15 | 23-846504788 | SPACER, Cone | AR | This Part is No Longer Available (3.788) | |||||
| 15 | 23-846504789 | SPACER, Cone | AR | This Part is No Longer Available (3.789) | |||||
| 15 | 23-846504790 | SPACER, Cone | AR | This Part is No Longer Available (3.790) | |||||
| 15 | 23-846504791 | SPACER, Cone | AR | This Part is No Longer Available (3.791) | |||||
| 16 | 31-846492A1 | BEARING SET, Cup And Cone | 1 | This Part is No Longer Available | |||||
| 17 | 15-846354A1 | SHIM SET | 1 | ||||||
| 18 | 25-39695 | O-RING | 1 | ||||||
| 19 | 8463131 | COVER | 1 | This Part is No Longer Available | |||||
| 20 | 26-846495 | SEAL | 1 | ||||||
| 21 | 12-842922 | WASHER, (.450 x .750 x .060) Stainless Steel | 8 | ||||||
| 22 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 8 | |||||
| 23 | 841166T01 | U JOINT ASSEMBLY | 1 | 846596A1 | |||||
| 24 | 61221T | CROSS AND BEARING, With Clips | 2 | 61221 | |||||
| 25 | 846601A1 | VALVE ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 26 | 25-457101 | O-RING, (1.424 x .103) | 1 | 25-45710 | |||||
| 27 | 16-847014 | STUD, (#10-32 x 1.460) | 3 | This Part is No Longer Available | |||||
| 28 | 25-33466 | O-RING | 1 | ||||||
| 29 | 26-846349 | SEAL | 1 | ||||||
| 30 | 10-846347 | SCREW, (#10-32 x .625) Stainless Steel | 4 | ||||||
| 31 | 846587 | RISER TUBE | 1 | This Part is No Longer Available | |||||
| 32 | 25-30613 | O-RING | 1 | ||||||
| 33 | 11-34059 | NUT, (#10-32) | 4 | ||||||
| 34 | 15-846430A1 | SHIM SET | 1 | ||||||
| 35 | 31-846489T1 | BEARING SET, Cup And Cone | 1 | This Part is No Longer Available | |||||
| 36 | 31-846487T1 | BEARING SET, Cup And Cone | 1 | This Part is No Longer Available | |||||
| 37 | 15-846352A1 | SHIM SET | 1 | ||||||
| 38 | 8469351 | COVER, Bottom | 1 | This Part is No Longer Available | |||||
| 39 | 847035 | PLATE, Bonding | 1 | ||||||
| 40 | 847062A1 | BONDING KIT | 1 |
