NXT1 SSM - All Serials - Inner Transom Plate Assembly (SSM Six And Seven)

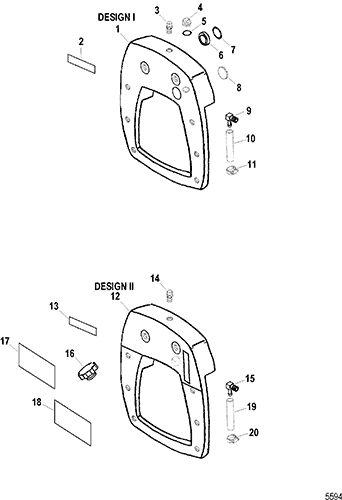

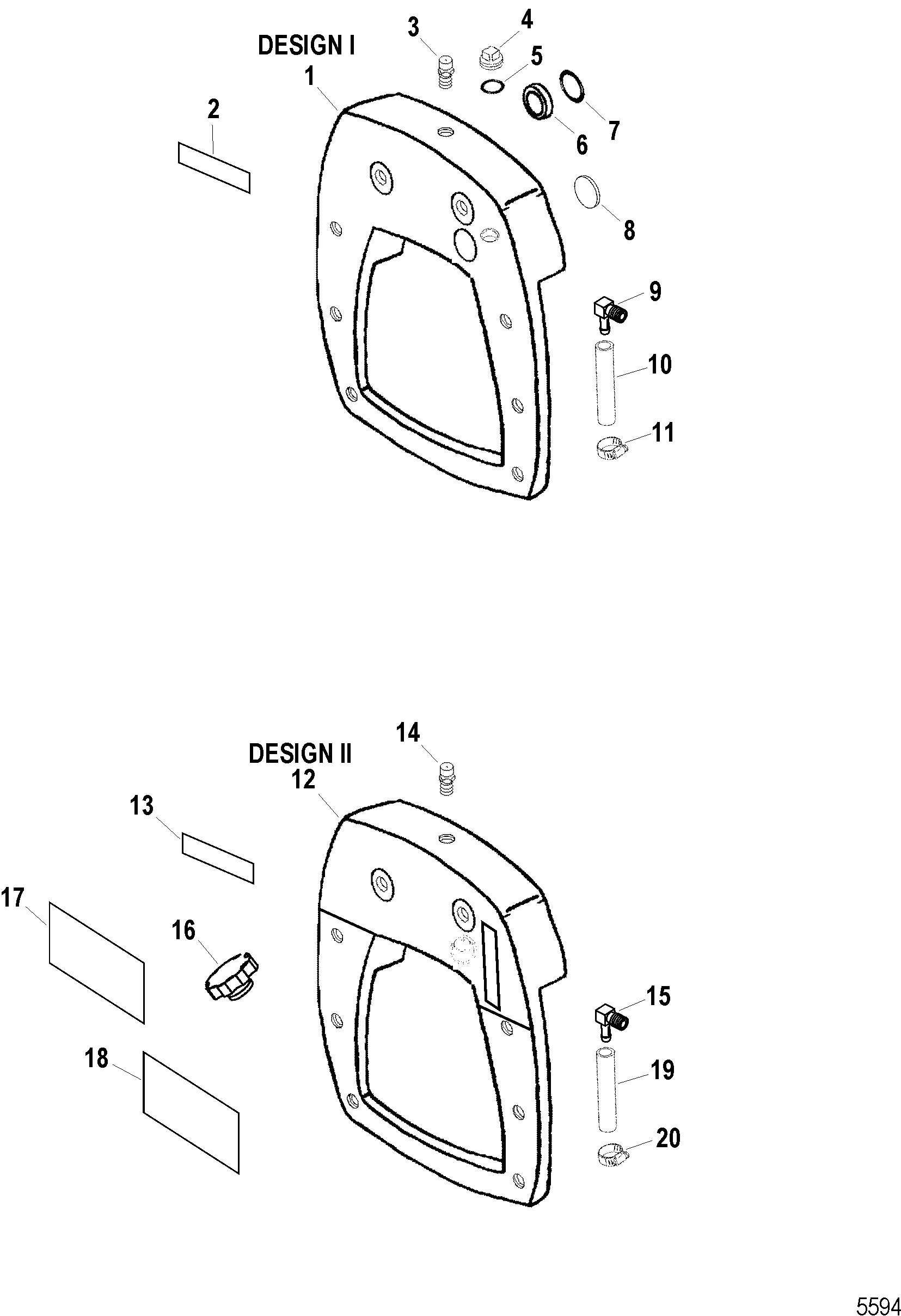

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849182A1 | PLATE ASSEMBLY, Inner Transom | 1 | 846611A1 | This Part is No Longer Available - Design I | ||||
| 2 | 847333 | EMBLEM, MerCruiser | 1 | ||||||
| 3 | 22-47902 | FITTING (.125-27) Breather | 1 | ||||||
| 4 | 22-320181 | PLUG (1.00-12) Oil Fill | 1 | 22-32018 | |||||
| 5 | 25-35126 | O-RING, (.859 x .139) | 1 | ||||||
| 6 | 846590A1 | GAUGE ASSEMBLY, View | 1 | This Part is No Longer Available | |||||
| 7 | 25-846594 | O-RING, (1.239 x .070) | 1 | ||||||
| 8 | 19-846329 | PLUG (1.50) Expansion - Brass | 3 | This Part is No Longer Available | |||||
| 9 | 22-848655 | FITTING (.375-18) 90 Degree | 1 | ||||||
| 10 | 32-847189 | HOSE, (4.750 Inches) | 1 | ||||||
| 11 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 12 | 849182A1 | PLATE ASSEMBLY, Inner Transom | 1 | This Part is No Longer Available - Design II | |||||
| 13 | 37-840359 | DECAL, Mercury Racing | 1 | SN# 0M965835 & Below | |||||
| 13 | 37-8M0048257 | DECAL, Mercury Racing | 1 | SN# 8M965836 & Up | |||||
| 14 | 22-47902 | FITTING (.125-27) Breather | 1 | ||||||
| 15 | 22-848655 | FITTING (.375-18) 90 Degree | 1 | ||||||
| 16 | 36-8115691 | CAP, Oil Fill | 1 | ||||||
| 17 | 37-840165 | DECAL, Oil Filling Instructions | 1 | This Part is No Longer Available | |||||
| 18 | 37-849347 | DECAL, Drive Oil Level | 1 | This Part is No Longer Available | |||||
| - | 849353 | CAP, Hose Fitting | 2 | ||||||
| - | 22-849352 | FITTING, Hose - Brass | 2 | ||||||
| - | 70-849354 | TUBE (.190 x .250 x 5.750) Plastic | 1 | This Part is No Longer Available | |||||
| 19 | 32-847189 | HOSE, (4.750 Inches) | 1 | ||||||
| 20 | 54-180761 | CLAMP, Worm Gear | 2 |
