NXT1 SSM - All Serials - Connector Block And Hydraulic Hoses

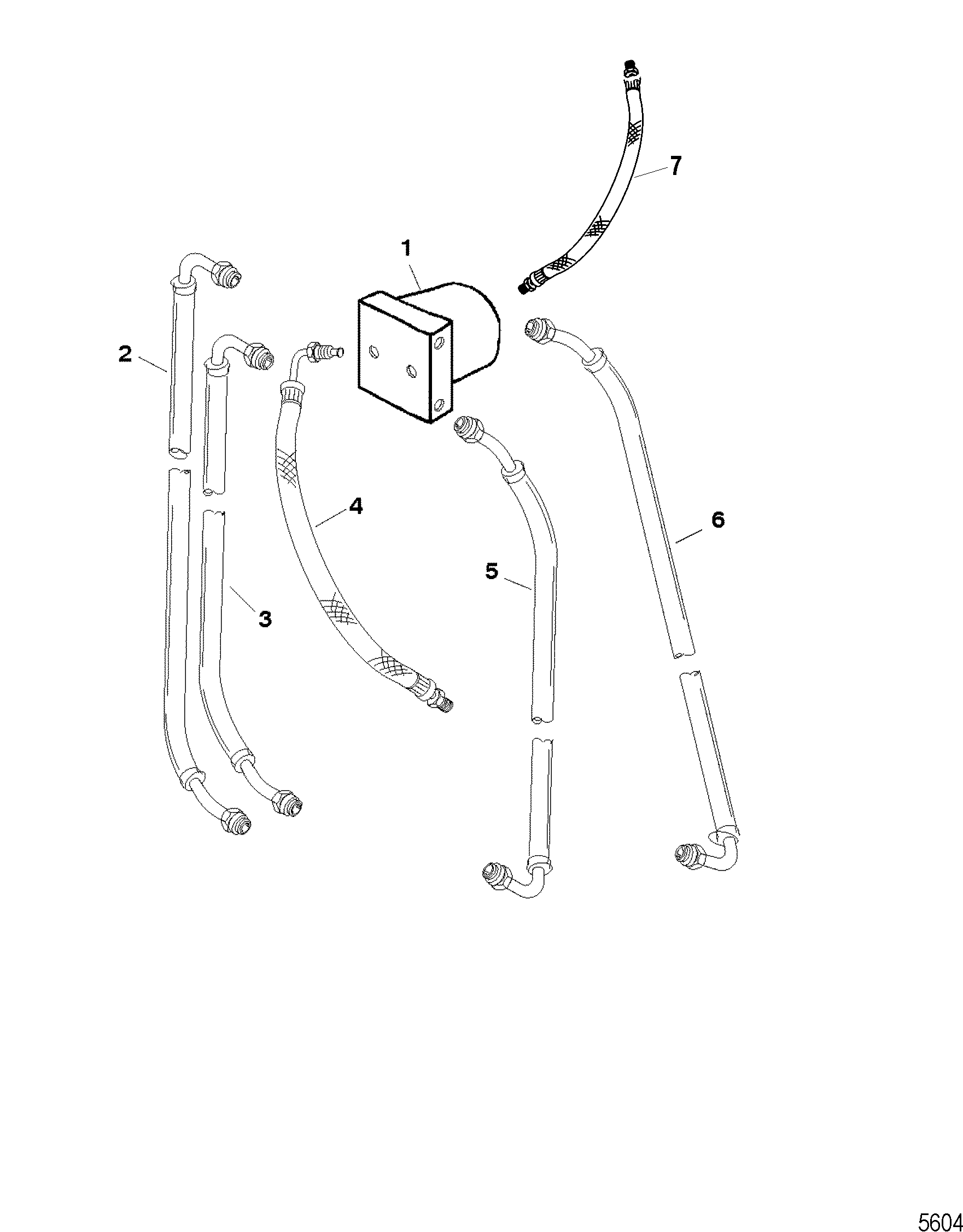

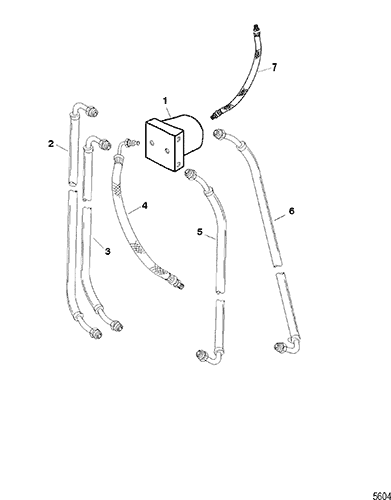

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 846471A1 | BLOCK ASSEMBLY, Hydraulic Connector | 1 | ||||||
| NS | 25-86391 | O-RING | 1 | ||||||
| NS | 16-846345 | STUD, (#10-32 x .750) | 1 | ||||||
| 2 | 32-846440 | HOSE, Steering | 1 | (15.50 Inches) Top - Port | |||||
| 3 | 32-846439 | HOSE, Steering | 1 | (18.00 Inches) Bottom - Port | |||||
| 4 | 32-846933 | HOSE, Trim Ram | 2 | (23.00 Inches) | |||||
| 5 | 32-846426 | HOSE, Steering | 1 | (15.00 Inches) Bottom - Starboard | |||||
| 6 | 32-846427 | HOSE, Steering | 1 | (19.25 Inches) Top - Starboard | |||||
| 7 | 32-845976 | HOSE ASSEMBLY, Hydraulic (30.00 Inches), Trim Pump | 2 |
