NXT1 SSM - All Serials - Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)

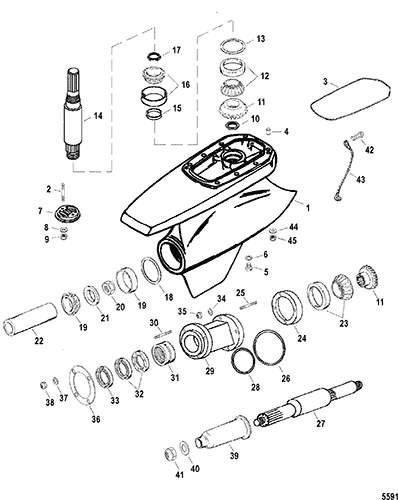

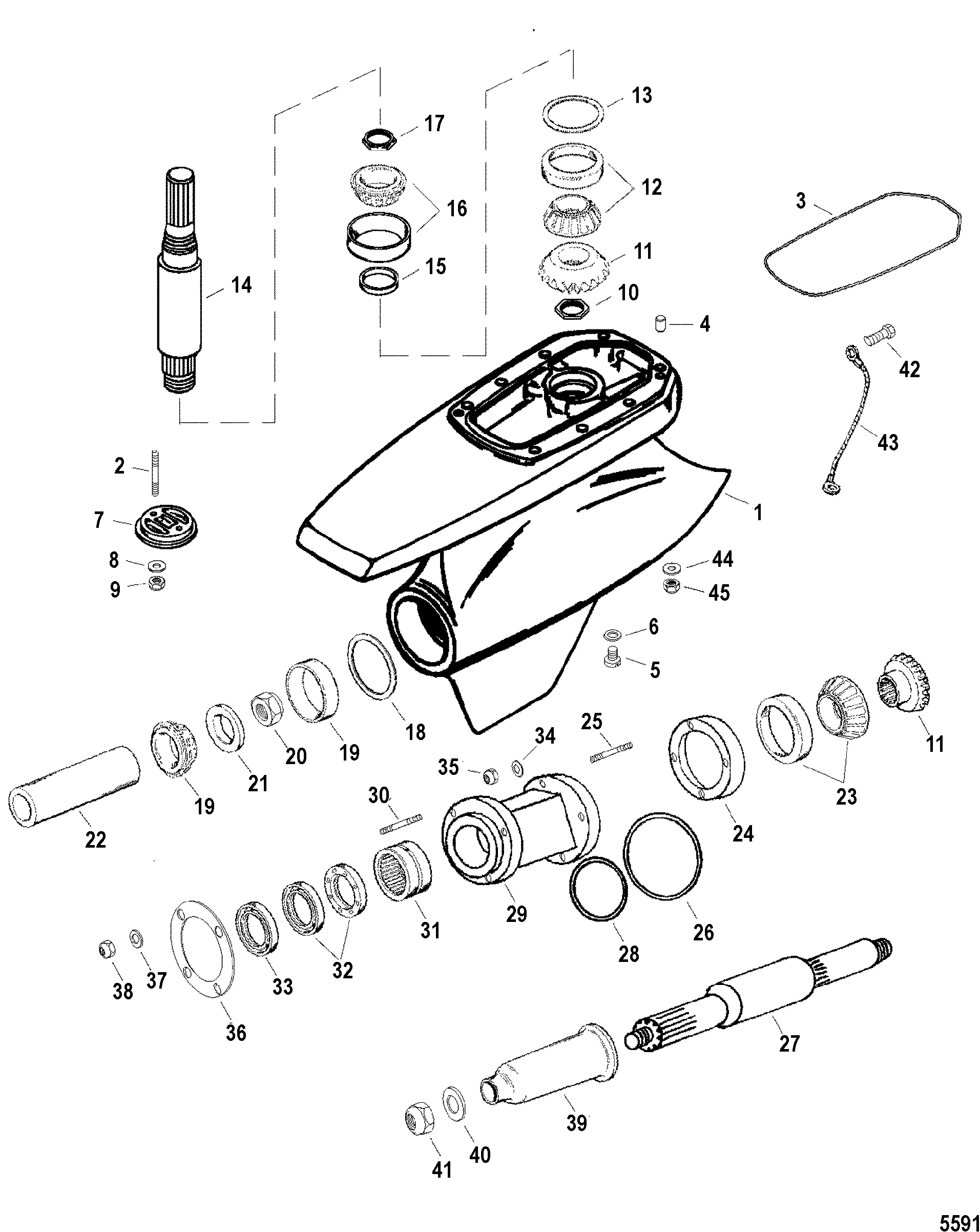

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1683-847211A2 | GEAR HOUSING ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 16-846340 | STUD, (.375-16/.375-24 x 1.50) | 2 | ||||||
| 3 | 25-847373 | O-RING | 1 | This Part is No Longer Available | |||||
| 4 | 17-16527 | PIN, Dowel | 2 | ||||||
| 5 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) , Drain | 1 | 10-79953A2 | |||||
| 6 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | |||||
| 7 | 847635 | ANODE | 1 | ||||||
| 8 | 12-841388 | WASHER, (.410 x .810 x .050) Stainless Steel | 2 | ||||||
| 9 | 11-826709113 | NUT, (.375-24) | 2 | 11-34863 | |||||
| 10 | 11-847300 | NUT, Special | 1 | This Part is No Longer Available | |||||
| 11 | 43-847360A1 | GEAR SET | 1 | This Part is No Longer Available | |||||
| 12 | 31-847359A1 | BEARING SET, Cup And Cone | 1 | This Part is No Longer Available | |||||
| 13 | 15-34822A1 | SHIM SET | 1 | ||||||
| 14 | 45-847254 | DRIVESHAFT | 1 | This Part is No Longer Available | |||||
| 15 | 23-846505500 | SPACER, (.2500) | AR | ||||||
| 15 | 23-846505505 | SPACER, (.2505) | AR | ||||||
| 15 | 23-846505510 | SPACER, (.2510) | AR | ||||||
| 15 | 23-846505515 | SPACER, (.2515) | AR | ||||||
| 15 | 23-846505520 | SPACER, (.2520) | AR | ||||||
| 15 | 23-846505525 | SPACER, (.2525) | AR | ||||||
| 15 | 23-846505530 | SPACER, (.2530) | AR | ||||||
| 15 | 23-846505535 | SPACER, (.2535) | AR | ||||||
| 15 | 23-846505540 | SPACER, (.2540) | AR | ||||||
| 15 | 23-846505545 | SPACER, (.2545) | AR | ||||||
| 15 | 23-846505550 | SPACER, (.2550) | AR | ||||||
| 15 | 23-846505555 | SPACER, (.2555) | AR | ||||||
| 15 | 23-846505560 | SPACER, (.2560) | AR | ||||||
| 15 | 23-846505565 | SPACER, (.2565) | AR | ||||||
| 15 | 23-846505570 | SPACER, (.2570) | AR | ||||||
| 15 | 23-846505575 | SPACER, (.2575) | AR | ||||||
| 15 | 23-846505580 | SPACER, (.2580) | AR | ||||||
| 15 | 23-846505585 | SPACER, (.2585) | AR | ||||||
| 15 | 23-846505590 | SPACER, (.2590) | AR | ||||||
| 15 | 23-846505595 | SPACER, (.2595) | AR | ||||||
| 15 | 23-846505600 | SPACER, (.2600) | AR | ||||||
| 15 | 23-846505605 | SPACER, (.2605) | AR | ||||||
| 15 | 23-846505610 | SPACER, (.2610) | AR | ||||||
| 15 | 23-846505615 | SPACER, (.2615) | AR | ||||||
| 15 | 23-846505620 | SPACER, (.2620) | AR | ||||||
| 15 | 23-846505625 | SPACER, (.2625) | AR | ||||||
| 15 | 23-846505630 | SPACER, (.2630) | AR | ||||||
| 15 | 23-846505635 | SPACER, (.2635) | AR | ||||||
| 15 | 23-846505640 | SPACER, (.2640) | AR | ||||||
| 15 | 23-846505645 | SPACER, (.2645) | AR | ||||||
| 15 | 23-846505650 | SPACER, (.2650) | AR | ||||||
| 15 | 23-846505655 | SPACER, (.2655) | AR | ||||||
| 15 | 23-846505660 | SPACER, (.2660) | AR | ||||||
| 15 | 23-846505665 | SPACER, (.2665) | AR | ||||||
| 15 | 23-846505670 | SPACER, (.2670) | AR | ||||||
| 15 | 23-846505675 | SPACER, (.2675) | AR | ||||||
| 15 | 23-846505680 | SPACER, (.2680) | AR | ||||||
| 15 | 23-846505685 | SPACER, (.2685) | AR | ||||||
| 15 | 23-846505690 | SPACER, (.2690) | AR | ||||||
| 16 | 31-30894A1 | BEARING SET, Cup And Cone | 1 | ||||||
| 17 | 11-847299 | NUT, Special | 1 | This Part is No Longer Available | |||||
| 18 | 15-847343A1 | SHIM SET | 1 | This Part is No Longer Available | |||||
| 19 | 31-847368A1 | BEARING SET, Cup And Cone | 1 | This Part is No Longer Available | |||||
| 20 | 11-841894 | NUT, (1.250-12) | 1 | ||||||
| 21 | 23-846409 | SPACER (1.25 x 2.00 x .28) | 1 | ||||||
| 22 | 23-847309 | SPACER, Propshaft | 1 | This Part is No Longer Available | |||||
| 23 | 31-847371A1 | BEARING SET, Cup And Cone | 1 | This Part is No Longer Available | |||||
| 24 | 847310A1 | RETAINER KIT | 1 | This Part is No Longer Available | |||||
| 25 | 16-847301 | STUD, (.437-14/.437-20 x 2.150) | 4 | This Part is No Longer Available | |||||
| 26 | 25-847374 | O-RING | 1 | This Part is No Longer Available | |||||
| 27 | 45-847255 | PROPELLER SHAFT | 1 | This Part is No Longer Available | |||||
| 28 | 25-847372 | O-RING | 1 | This Part is No Longer Available | |||||
| 29 | 847282A1 | HOUSING ASSEMBLY, Rear Support | 1 | This Part is No Longer Available | |||||
| 30 | 16-847302 | STUD, (.312-18/.312-24 x 1.280) | 4 | This Part is No Longer Available | |||||
| 31 | 31-55625T | BEARING, Roller | 1 | ||||||
| 32 | 26-846417 | SEAL, Inner | 2 | ||||||
| 33 | 26-847297 | SEAL, Outer | 1 | ||||||
| 34 | 12-842922 | WASHER, (.450 x .750 x .060) Stainless Steel | 4 | ||||||
| 35 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 4 | |||||
| 36 | 847308 | PLATE, Retainer Lock | 1 | This Part is No Longer Available | |||||
| 37 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 4 | ||||||
| 38 | 11-82670911 | NUT, (.312-24) Stainless Steel | 4 | 11-35814 | |||||
| 39 | 848061 | COVER, Propshaft Guard | 1 | 23-846902 | |||||
| 40 | 12-39817 | WASHER, Special - Stainless Steel | 1 | ||||||
| 41 | 11-82671127 | NUT, (1.0-14) | 1 | 11-54034 | |||||
| 42 | 10-69022 | SCREW, (#10-32 x .500) Stainless Steel | 1 | ||||||
| 43 | 847062A1 | BONDING KIT | 1 | ||||||
| 44 | 12-844850 | WASHER, (.660 x 1.310 x .09) Stainless Steel | 8 | ||||||
| 45 | 11-47302 | NUT, (.562-18) Stainless Steel | 8 |
